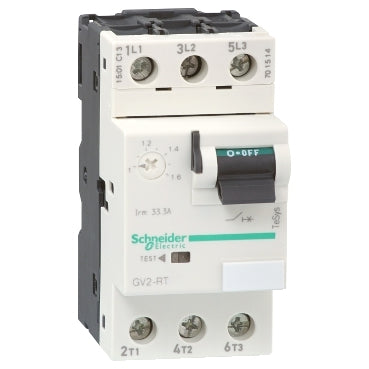

Schneider Electric GV2RT21 TeSys Deca motor circuit breaker - 3P 17-23A 15kA MPCB

Schneider Electric GV2RT21 TeSys Deca 3P 17-23 A 15 kA Motor Protection Circuit Breaker (MPCB)

Name: Schneider Electric GV2RT21 TeSys Deca 3P 17-23 A 15 kA Motor Protection Circuit Breaker (MPCB)
Brand: Schneider Electric
SKU: GV2RT21
Price: 69.53 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: GV2RT21

Tariff Code (HS): 853620

Rated Current: 23 A

Power: 9-11 kW

Rated Voltage: 690 V

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$69.53

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric GV2RT21 is a TeSys Deca (TeSys GV2) motor circuit breaker rated 17-23 A at 690 V AC, providing thermal-magnetic protection for 3-phase motors up to 9-11 kW at 400 V. It trips magnetically at 400 A, delivers a 15 kA breaking capacity at 400 V, and is operated by a toggle rated for 100,000 AC-3 cycles.

Technical Specifications

SKU	GV2RT21
Brand	Schneider Electric
Range	TeSys Deca (TeSys GV2)
Poles	3P
Trip Unit Technology	Thermal-magnetic
Utilisation Category	Category A (IEC 60947-2), AC-3 (IEC 60947-4-1)
Thermal Protection Adjustment Range	17-23 A
Line Rated Current (In)	23 A
Magnetic Tripping Current	400 A
Breaking Capacity (Icu) at 400/415 V	15 kA
Motor Power at 400 V	9-11 kW
Rated Operational Voltage (Ue)	690 V AC, 50/60 Hz
Rated Insulation Voltage (Ui)	690 V AC, 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)	6 kV
Control Type	Toggle
Connections	Screw clamp terminals, 1-6 mm²
Mounting	35 mm DIN rail or panel with adaptor plate
Dimensions (W x H x D)	45 x 89 x 78.5 mm
IP Degree	IP20

Certifications & Standards

CE
UKCA
CCC
cULus
EAC
EN/IEC 60947-2
EN/IEC 60947-4-1

Selection Notes

The 17-23 A setting suits motors drawing up to 9-11 kW at 400 V. Breaking capacity at 400 V drops to 15 kA on this and the other high-current GV2RT variants (100 kA on the 0.25-10 A settings below it in the same series), so where prospective fault current exceeds 15 kA a GV1L3 current-limiter module should be fitted on top of the breaker.

Technical Details

Short Description

TeSys Deca (GV2RT) motor circuit breaker, 3P, 17-23 A thermal-magnetic, 690 V AC, Icu 15 kA.

Rated Current (Ampere)

23 A

Rated Voltage (VAC)

690 V

Mounting Type

35 mm DIN rail

Protection Type

IP20

Number of Poles

Power (kW)

9-11 kW

Delivery Date (Days)

30 days

Model Number

GV2RT21

Tariff Code

853620

Schneider Electric GV2RT21 TeSys Deca 3P 17-23 A 15 kA Motor Protection Circuit Breaker (MPCB)

Technical Specifications

Certifications & Standards

Selection Notes

Technical Details
