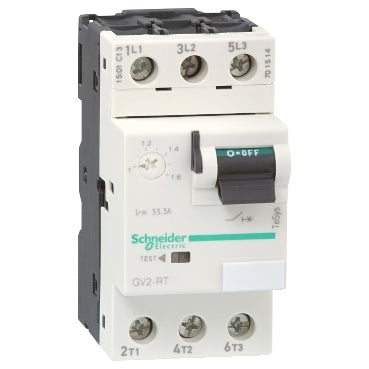

Schneider Electric GV2RT07 TeSys Deca motor circuit breaker - 3P 1.6-2.5A 100kA MPCB

Schneider Electric GV2RT07 TeSys Deca 3P 1.6-2.5 A 100 kA Motor Protection Circuit Breaker (MPCB)

Name: Schneider Electric GV2RT07 TeSys Deca 3P 1.6-2.5 A 100 kA Motor Protection Circuit Breaker (MPCB)
Brand: Schneider Electric
SKU: GV2RT07
Price: 53.03 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: GV2RT07

Tariff Code (HS): 853620

Rated Current: 2.5 A

Power: 0.75 kW

Rated Voltage: 690 V

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$53.03

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric GV2RT07 is a TeSys Deca (TeSys GV2) motor circuit breaker rated 1.6-2.5 A at 690 V AC, providing thermal-magnetic protection for 3-phase motors up to 0.75 kW at 400 V. It trips magnetically at 51 A, delivers a 100 kA breaking capacity at 400 V, and is operated by a toggle rated for 100,000 AC-3 cycles.

Technical Specifications

SKU	GV2RT07
Brand	Schneider Electric
Range	TeSys Deca (TeSys GV2)
Poles	3P
Trip Unit Technology	Thermal-magnetic
Utilisation Category	Category A (IEC 60947-2), AC-3 (IEC 60947-4-1)
Thermal Protection Adjustment Range	1.6-2.5 A
Line Rated Current (In)	2.5 A
Magnetic Tripping Current	51 A
Breaking Capacity (Icu) at 400/415 V	100 kA
Motor Power at 400 V	0.75 kW
Rated Operational Voltage (Ue)	690 V AC, 50/60 Hz
Rated Insulation Voltage (Ui)	690 V AC, 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)	6 kV
Control Type	Toggle
Connections	Screw clamp terminals, 1-6 mm²
Mounting	35 mm DIN rail or panel with adaptor plate
Dimensions (W x H x D)	45 x 89 x 78.5 mm
IP Degree	IP20

Certifications & Standards

CE
UKCA
CCC
cULus
EAC
EN/IEC 60947-2
EN/IEC 60947-4-1

Selection Notes

The 1.6-2.5 A setting suits motors drawing up to 0.75 kW at 400 V; move to the adjacent setting in the GV2RT range as the full-load current falls outside this window, since the toggle, terminals and 690 V insulation are identical across the series. The full 100 kA breaking capacity at 400 V holds through this current band, so it can sit directly behind a high fault-current incomer without a separate current-limiter accessory.

Technical Details

Short Description

TeSys Deca (GV2RT) motor circuit breaker, 3P, 1.6-2.5 A thermal-magnetic, 690 V AC, Icu 100 kA.

Rated Current (Ampere)

2.5 A

Rated Voltage (VAC)

690 V

Mounting Type

35 mm DIN rail

Protection Type

IP20

Number of Poles

Power (kW)

0.75 kW

Delivery Date (Days)

30 days

Model Number

GV2RT07

Tariff Code

853620
