Part number
GV2RT04
Model no
GV2RT
$52.75 On request Dispatch — · From TürkiyeGet a Quote

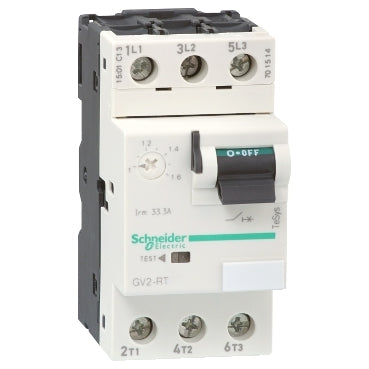

Schneider Electric GV2RT04 TeSys Deca 3P 0.4-0.63 A 100 kA Motor Protection Circuit Breaker (MPCB)

TeSys Deca (GV2RT) motor circuit breaker, 3P, 0.4-0.63 A thermal-magnetic, 690 V AC, Icu 100 kA.

Rated current
0.63 A
Rated operational voltage
690 V AC
Motor power
0.12 kW
Poles
3P
EAN
3389110520606
Description

About the GV2RT

The Schneider Electric GV2RT04 is a TeSys Deca (TeSys GV2) motor circuit breaker rated 0.4-0.63 A at 690 V AC, providing thermal-magnetic protection for 3-phase motors up to 0.12 kW at 400 V. It trips magnetically at 13 A, delivers a 100 kA breaking capacity at 400 V, and is operated by a toggle rated for 100,000 AC-3 cycles.

Certifications & Standards

  • CE
  • UKCA
  • CCC
  • cULus
  • EAC
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1

Selection Notes

The 0.4-0.63 A setting suits motors drawing up to 0.12 kW at 400 V; move to the adjacent setting in the GV2RT range as the full-load current falls outside this window, since the toggle, terminals and 690 V insulation are identical across the series. The full 100 kA breaking capacity at 400 V holds through this current band, so it can sit directly behind a high fault-current incomer without a separate current-limiter accessory.

Specification

Full specification

56 values · Last verified 30 Oct 2026

Main 6

Range TeSys Deca
Product name TeSys GV2
Product or Component Type Motor circuit breaker
Device short name GV2RT
Device Application Motor protection, Transformer
Trip unit technology Thermal-magnetic

Complementary 26

Poles description 3P
Network type AC
Utilisation category Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
Network frequency 50/60 Hz IEC 60947-2
Motor power kW 0.12 kW 400/415 V AC 50/60 Hz motor protection high peak current, 0.18 kW 400/415 V AC 50/60 Hz motor protection high peak current, 0.18 kW 440 V AC 50/60 Hz motor protection high peak current, 0.37 kW 690 V AC 50/60 Hz motor protection high peak current
Breaking capacity 100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Control Type Toggle
Line Rated Current 0.63 A
Thermal protection adjustment range 0.4…0.63 A IEC 60947-2
Magnetic tripping current 13 A
[Ith] conventional free air thermal current 0.63 A IEC 60947-2
[Ue] rated operational voltage 690 V AC 50/60 Hz IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-2
Suitability for isolation Yes IEC 60947-1
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
Rated duty Uninterrupted IEC 60947-4-1
Connections - terminals Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1…6 mm²) - solid, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - flexible without cable end, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.006 in² (1…4 mm²) - flexible with cable end
Tightening torque 15.05 lbf.in (1.7 N.m) screw clamp terminal
Fixing mode 35 mm symmetrical DIN rail clipped, Panel screwed with adaptor plate)
Mounting position Horizontal, Vertical
Width 1.8 in (45 mm)
Height 3.5 in (89 mm)
Depth 3.09 in (78.5 mm)

Environment 10

Standards EN/IEC 60947-2, EN/IEC 60947-4-1
Product Certifications CB Scheme, CE, UKCA, CCC, cULus, EAC, LROS (Lloyds register of shipping), BV
IK degree of protection IK04
IP degree of protection IP20 IEC 60529
Climatic withstand IACS E10
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Fire resistance 1760 °F (960 °C) IEC 60695-2-11
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Mechanical robustness Shocks 30 Gn for 11 ms, Vibrations 5 Gn, 5...150 Hz
Operating altitude <= 6561.68 ft (2000 m)
Show all 56 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number GV2RT04
Type designation GV2RT
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110520606

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.227 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for GV2RT04

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • EAC
  • CB Scheme
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
Quick answers

Questions about the GV2RT

What is the rated current of GV2RT?

The rated current of GV2RT is 0.63 A.

Which supply voltage is GV2RT rated for?

The rated operational voltage of GV2RT is 690 V AC.

What motor power is GV2RT rated for?

The rated motor power of GV2RT is 0.12 kW.

What is the HS code of GV2RT for customs?

The tariff (HS) code on file for GV2RT is 853620.

What is the EAN of GV2RT?

The EAN (GTIN) of GV2RT is 3389110520606.

Where does GV2RT ship from, and how fast?

GV2RT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
