TeSys Deca GV2P thermal-magnetic manual starter, 0.16-0.25 A adjustable overload, 690 V AC, 100 kA breaking capacity.

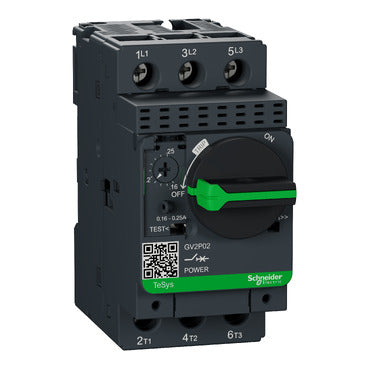

The Schneider Electric GV2P02 is a TeSys Deca GV2 thermal-magnetic manual motor circuit breaker with a rotary handle and an adjustable thermal setting from 0.16 to 0.25 A, plus a 3.08 A magnetic instantaneous trip. Rated for 690 V AC with a 100 kA breaking capacity across the full voltage range, it protects the smallest motors in the GV2 range, down to 0.06 kW at 400/415 V, with built-in overload and phase-failure protection.
The P designation marks this as a thermal-magnetic protector: unlike the magnetic-only GV2LE range, it has a built-in adjustable thermal overload (0.16-0.25 A) alongside the 3.08 A magnetic instantaneous trip, so it needs no separate overload relay. Phase-failure sensitivity is standard on this trip unit, which trips on a lost phase before the motor is damaged. At a 0.16-0.25 A setting it is sized for the smallest single- and three-phase motors in the range (0.06 kW at 400/415 V); larger loads call for a higher current variant in the same GV2P range.
Used as a self-protected manual starter for small fractional-horsepower motors, fan drives and auxiliary machinery where combined overload and short-circuit protection in one device is preferred over separate breaker and thermal relay.
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 |
| Product or Component Type | Motor circuit breaker |
| Device short name | GV2P |
| Device Application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1 |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Motor power kW | 0.06 kW 400/415 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 690 V AC 50/60 Hz IEC 60947-2 |
| Control Type | Rotary handle |
| Line Rated Current | 0.25 A |
| Thermal protection adjustment range | 0.16…0.25 A IEC 60947-2 |
| Magnetic tripping current | 3.08 A |
| [Ith] conventional free air thermal current | 0.25 A IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Suitability for isolation | Yes IEC 60947-1 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Connections - terminals | Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1…6 mm²) - solid, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - flexible without cable end, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.006 in² (1…4 mm²) - flexible with cable end |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail clipped, Panel screwed with 2 x M4 screws) |
| Mounting position | Horizontal, Vertical |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Depth | 3.8 in (97 mm) |
| color | Dark grey |
| Standards | EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40:Annex JJ, IEC/EN 60335-1:Clause 30.2 |
|---|---|
| Product Certifications | CB Scheme, CE, UKCA, CCC, cULus, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 30 Gn for 11 ms, Vibrations 5 Gn, 5...150 Hz |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Part number | GV2P02 |
|---|---|
| Type designation | GV2P |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110213416 |
| Warranty (in months) | 18 |
|---|
| Country of origin | TH |
|---|---|
| Shipping weight | 0.262 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
