Part number
GV2P01
Model no
GV2P
$53.83 On request Dispatch — · From TürkiyeGet a Quote

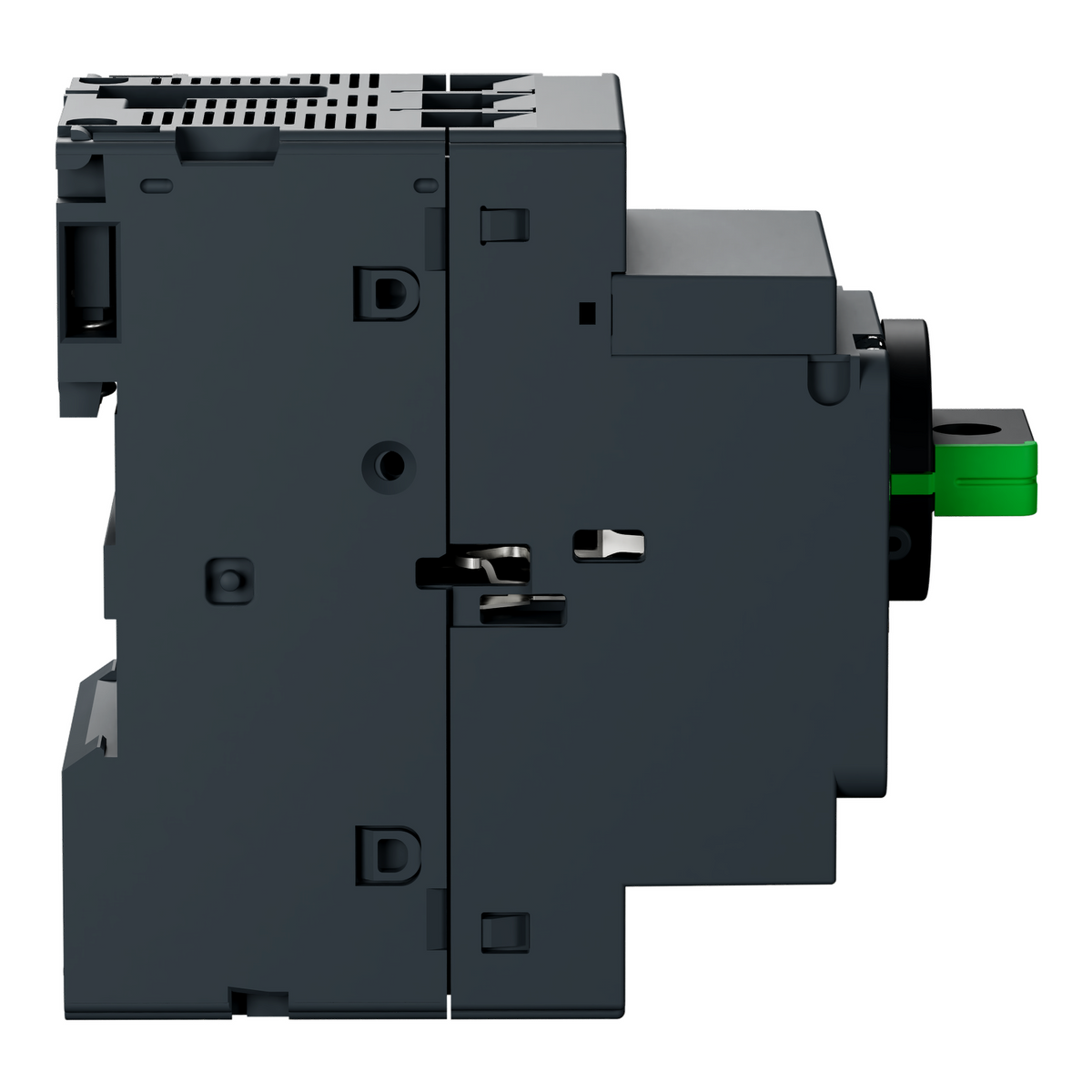

Schneider Electric GV2P01 TeSys Deca 3P 0.1-0.16 A 100 kA Motor Protection Circuit Breaker (MPCB)

TeSys Deca thermal-magnetic motor circuit breaker, 3P, 0.1-0.16 A, 100 kA Icu at 400 V.

Rated current
0.16 A
Rated operational voltage
690 V AC
EAN
3389110213409
Description

About the GV2P

The Schneider Electric GV2P01 is a TeSys Deca thermal-magnetic motor circuit breaker with a 0.1-0.16 A adjustable thermal setting range, rated 0.16 A and 100 kA Icu at 400/415 V across 3 poles. It combines overload and short-circuit protection with manual isolation in one body, controlled by a rotary handle, for a single 3-phase motor branch circuit.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • CCC
  • EAC
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1

Selection Notes

Set the GV2P01 thermal dial to the motor's actual nameplate full-load current within its 0.1-0.16 A range rather than defaulting to the top of the scale — the adjustment is what lets one breaker frame cover several motor sizes without replacing the device. Pick the 0.16 A sibling specifically when the motor's full-load current falls in the top half of this range; a lower-numbered GV2 variant covers the bottom half of the same current band with a finer trip margin. Phase-failure sensitivity is built in, so the GV2P01 also trips on a lost phase even inside its normal current setting, which an LRD overload relay on an unprotected contactor branch would not catch on its own.

Specification

Full specification

58 values · Last verified 30 Oct 2026

Main 6

Range TeSys Deca
Product name TeSys GV2
Product or Component Type Motor circuit breaker
Device short name GV2P
Device Application Motor protection
Trip unit technology Thermal-magnetic

Complementary 28

Poles description 3P
Network type AC
Utilisation category Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
Network frequency 50/60 Hz IEC 60947-2
Breaking capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 690 V AC 50/60 Hz IEC 60947-2
Control Type Rotary handle
Line Rated Current 0.16 A
Thermal protection adjustment range 0.1…0.16 A IEC 60947-2
Magnetic tripping current 1.93 A
[Ith] conventional free air thermal current 0.16 A IEC 60947-2
[Ue] rated operational voltage 690 V AC 50/60 Hz IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-2
Phase failure sensitivity Yes IEC 60947-4-1
Suitability for isolation Yes IEC 60947-1
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
Rated duty Uninterrupted IEC 60947-4-1
Connections - terminals Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1…6 mm²) - solid, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - flexible without cable end, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.006 in² (1…4 mm²) - flexible with cable end
Tightening torque 15.05 lbf.in (1.7 N.m) screw clamp terminal
Fixing mode 35 mm symmetrical DIN rail clipped, Panel screwed with 2 x M4 screws)
Mounting position Horizontal, Vertical
Width 1.8 in (45 mm)
Height 3.5 in (89 mm)
Depth 3.8 in (97 mm)
color Dark grey

Environment 10

Standards EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40:Annex JJ, IEC/EN 60335-1:Clause 30.2
Product Certifications CB Scheme, CE, UKCA, CCC, cULus, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL
IK degree of protection IK04
IP degree of protection IP20 IEC 60529
Climatic withstand IACS E10
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Fire resistance 1760 °F (960 °C) IEC 60695-2-11
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Mechanical robustness Shocks 30 Gn for 11 ms, Vibrations 5 Gn, 5...150 Hz
Operating altitude <= 6561.68 ft (2000 m)
Show all 58 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number GV2P01
Type designation GV2P
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110213409

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin TH
Shipping weight 0.264 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for GV2P01

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • EAC
  • CB Scheme
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • IEC/EN 60335-2-40:Annex JJ
  • IEC/EN 60335-1:Clause 30.2
Quick answers

Questions about the GV2P

What is the rated current of GV2P?

The rated current of GV2P is 0.16 A.

Which supply voltage is GV2P rated for?

The rated operational voltage of GV2P is 690 V AC.

What is the HS code of GV2P for customs?

The tariff (HS) code on file for GV2P is 853620.

What is the EAN of GV2P?

The EAN (GTIN) of GV2P is 3389110213409.

Where does GV2P ship from, and how fast?

GV2P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
