Part number
GV2ME32A
Model no
GV2ME
$110.20 On request Dispatch — · From TürkiyeGet a Quote

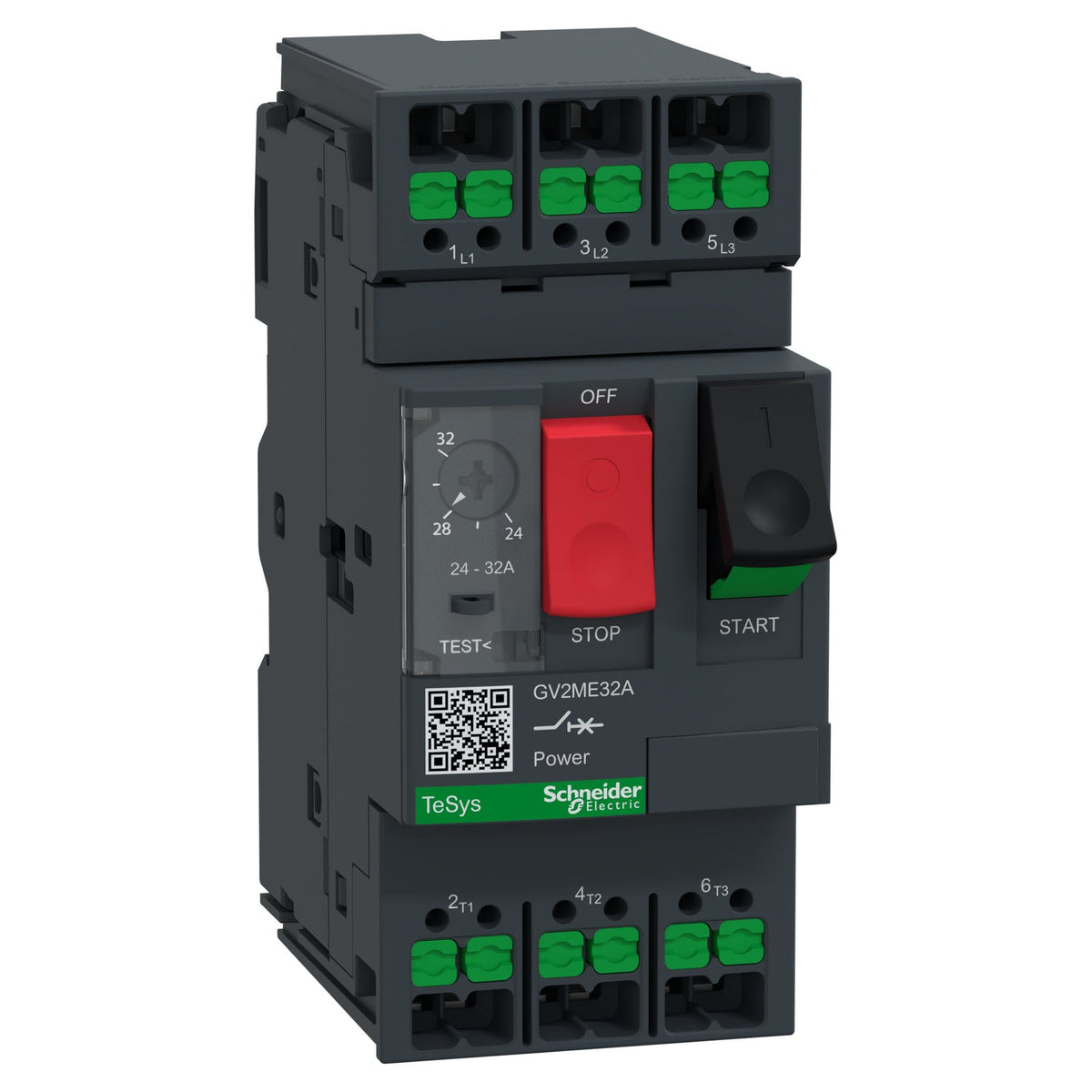

Schneider Electric GV2ME32A TeSys Deca 3P 24-32 A 10 kA Motor Protection Circuit Breaker (MPCB)

TeSys Deca thermal-magnetic motor circuit breaker, 3P, 24-32 A, 10 kA Icu at 400 V.

Rated current
32 A
Rated operational voltage
690 V AC
Motor power
15 kW
Description

About the GV2ME

The Schneider Electric GV2ME32A is a TeSys Deca thermal-magnetic motor circuit breaker with a 24-32 A adjustable thermal setting range, rated 32 A and 10 kA Icu at 400/415 V across 3 poles. It combines overload and short-circuit protection with manual isolation in one body, controlled by a push-button, for a single 3-phase motor branch circuit.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • CCC
  • EAC
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1

Selection Notes

Set the GV2ME32A thermal dial to the motor's actual nameplate full-load current within its 24-32 A range rather than defaulting to the top of the scale — the adjustment is what lets one breaker frame cover several motor sizes without replacing the device. Pick the 32 A sibling specifically when the motor's full-load current falls in the top half of this range; a lower-numbered GV2 variant covers the bottom half of the same current band with a finer trip margin. Phase-failure sensitivity is built in, so the GV2ME32A also trips on a lost phase even inside its normal current setting, which an LRD overload relay on an unprotected contactor branch would not catch on its own.

Specification

Full specification

69 values · Last verified 30 Oct 2026

Main 6

Range TeSys Deca
Product name TeSys GV2
Product or component type Motor circuit breaker
Device short name GV2ME
Device application Motor protection
Trip unit technology Thermal-magnetic

Complementary 29

Poles description 3P
Network type AC
Utilisation category Category A conforming to IEC 60947-2, AC-3 conforming to IEC 60947-4-1, AC-3e conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-2
Motor power kW 15 kW at 400/415 V AC 50/60 Hz, 18.5 kW at 500 V AC 50/60 Hz, 22 kW at 690 V AC 50/60 Hz
Breaking capacity 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Control type Push-button
[In] rated current 32 A
Thermal protection adjustment range 24…32 A conforming to IEC 60947-2
Magnetic tripping current 537.6 A
[Ith] conventional free air thermal current 32 A conforming to IEC 60947-2
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles for AC-3 at 415 V In, 100000 cycles for AC-3e at 415 V In
Rated duty Uninterrupted conforming to IEC 60947-4-1
Connections - terminals Power circuit: snap-in terminal 2 cable(s) 0.75…6 mm² - flexible without cable end, Power circuit: snap-in terminal 2 cable(s) 0.75…4 mm² - flexible with cable end, Power circuit: snap-in terminal 2 cable(s) (18 AWG...10 AWG) - stranded
Fixing mode 35 mm symmetrical DIN rail: clipped, Panel: screwed (with adaptor plate)
Mounting position Horizontal, Vertical
Width 45 mm
Height 101 mm
Depth 78.5 mm
Net weight 285 g
Colour Dark grey

Environment 10

Standards EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40:Annex JJ, IEC/EN 60335-1:Clause 30.2
Product certifications CB Scheme, CE, UKCA, CCC, cULus, ATEX, EU-RO-MR by DNV
IK degree of protection IK04
IP degree of protection IP20 conforming to IEC 60529 (on front face)
Climatic withstand conforming to IACS E10
Ambient air temperature for storage -40…80 °C
Fire resistance 960 °C conforming to IEC 60695-2-11
Ambient air temperature for operation -20…60 °C
Mechanical robustness Shocks: 30 Gn for 11 ms, Vibrations: 5 Gn, 5...150 Hz
Operating altitude <= 2000 m
Show all 69 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number GV2ME32A
Type designation GV2ME
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 9.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 314.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.571 kg
Shipping weight 0.285 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for GV2ME32A

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • CB Scheme
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • IEC/EN 60335-2-40:Annex JJ
  • IEC/EN 60335-1:Clause 30.2
Quick answers

Questions about the GV2ME

What is the rated current of GV2ME?

The rated current of GV2ME is 32 A.

Which supply voltage is GV2ME rated for?

The rated operational voltage of GV2ME is 690 V AC.

What motor power is GV2ME rated for?

The rated motor power of GV2ME is 15 kW.

What is the HS code of GV2ME for customs?

The tariff (HS) code on file for GV2ME is 853620.

Where does GV2ME ship from, and how fast?

GV2ME ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
