Part number
GV2ME10A
Model no
GV2ME
$49.71 On request Dispatch — · From TürkiyeGet a Quote

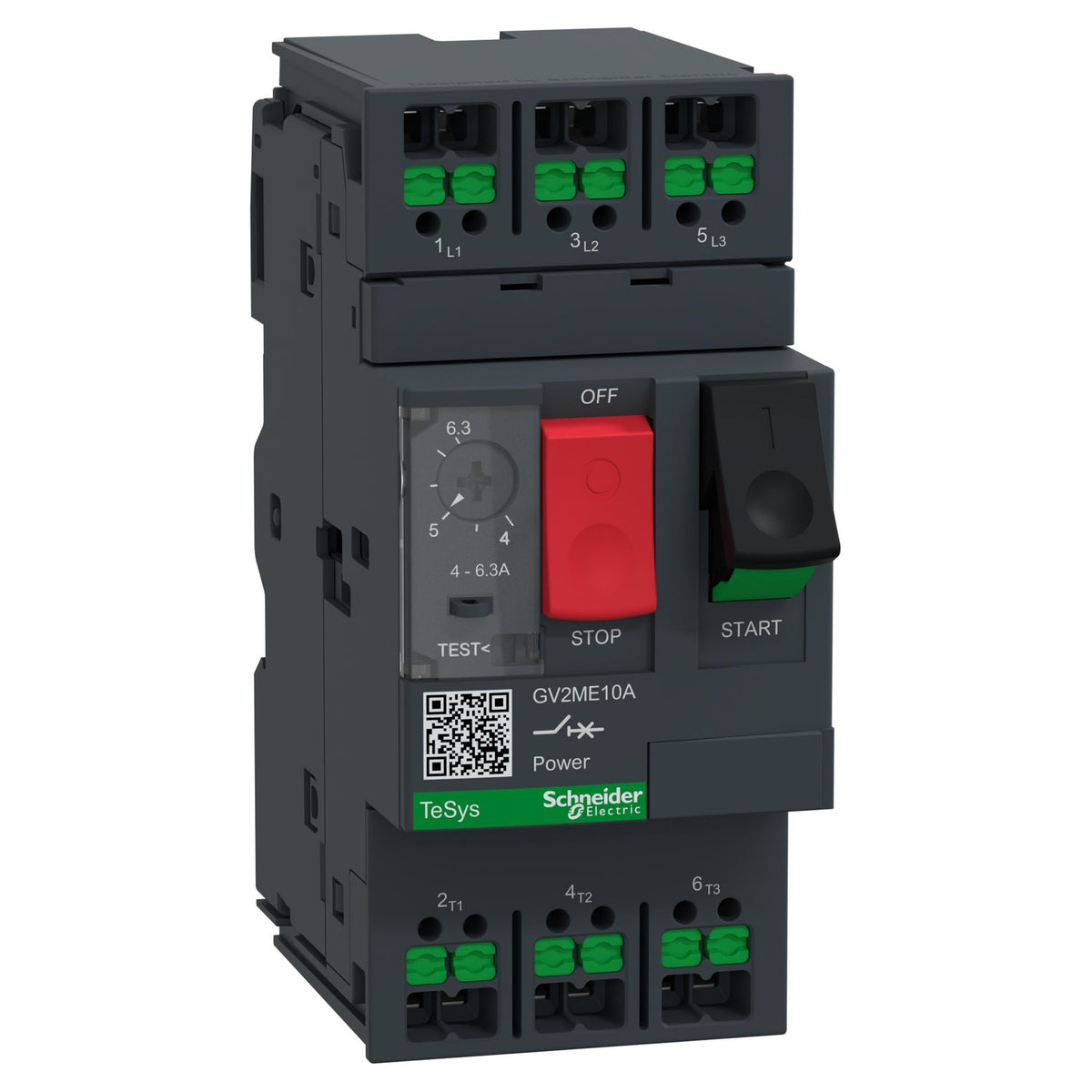

Schneider Electric GV2ME10A TeSys Deca 3P 4-6.3 A 100 kA Motor Protection Circuit Breaker (MPCB)

TeSys Deca thermal-magnetic motor circuit breaker, 3P, 4-6.3 A, 100 kA Icu at 400 V.

Rated current
6.3 A
Rated operational voltage
690 V AC
Motor power
2.2 kW
EAN
3606487541868
Description

About the GV2ME

The Schneider Electric GV2ME10A is a TeSys Deca thermal-magnetic motor circuit breaker with a 4-6.3 A adjustable thermal setting range, rated 6.3 A and 100 kA Icu at 400/415 V across 3 poles. It combines overload and short-circuit protection with manual isolation in one body, controlled by a push-button, for a single 3-phase motor branch circuit.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • CCC
  • EAC
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1

Selection Notes

Set the GV2ME10A thermal dial to the motor's actual nameplate full-load current within its 4-6.3 A range rather than defaulting to the top of the scale — the adjustment is what lets one breaker frame cover several motor sizes without replacing the device. Pick the 6.3 A sibling specifically when the motor's full-load current falls in the top half of this range; a lower-numbered GV2 variant covers the bottom half of the same current band with a finer trip margin. Phase-failure sensitivity is built in, so the GV2ME10A also trips on a lost phase even inside its normal current setting, which an LRD overload relay on an unprotected contactor branch would not catch on its own.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 6

Range TeSys Deca
Product name TeSys GV2
Product or Component Type Motor circuit breaker
Device short name GV2ME
Device Application Motor protection
Trip unit technology Thermal-magnetic

Complementary 29

Poles description 3P
Network type AC
Utilisation category Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
Network frequency 50/60 Hz IEC 60947-2
Motor power kW 2.2 kW 400/415 V AC 50/60 Hz, 3 kW 500 V AC 50/60 Hz, 4 kW 690 V AC 50/60 Hz
Breaking capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 75 % 690 V AC 50/60 Hz IEC 60947-2
Control Type Push-button
Line Rated Current 6.3 A
Thermal protection adjustment range 4…6.3 A IEC 60947-2
Magnetic tripping current 91 A
[Ith] conventional free air thermal current 6.3 A IEC 60947-2
[Ue] rated operational voltage 690 V AC 50/60 Hz IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-2
Phase failure sensitivity Yes IEC 60947-4-1
Suitability for isolation Yes IEC 60947-1
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
Rated duty Uninterrupted IEC 60947-4-1
Connections - terminals Power circuit: snap-in terminal 2 cable(s) 0.0008…0.006 in² (0.5…4 mm²) - flexible without cable end, Power circuit: snap-in terminal 2 cable(s) 0.0008…0.004 in² (0.5…2.5 mm²) - flexible with cable end, Power circuit: snap-in terminal 2 cable(s) (20 AWG...10 AWG) - stranded
Fixing mode 35 mm symmetrical DIN rail clipped, Panel screwed with adaptor plate)
Mounting position Horizontal, Vertical
Width 1.8 in (45 mm)
Height 4.0 in (101 mm)
Depth 3.09 in (78.5 mm)
Net Weight 9.1 oz (258 g)
color Dark grey

Environment 10

Standards EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40:Annex JJ, IEC/EN 60335-1:Clause 30.2
Product Certifications CB Scheme, CE, UKCA, CCC, cULus, ATEX, EU-RO-MR by DNV
IK degree of protection IK04
IP degree of protection IP20 IEC 60529 on front face)
Climatic withstand IACS E10
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Fire resistance 1760 °F (960 °C) IEC 60695-2-11
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Mechanical robustness Shocks 30 Gn for 11 ms, Vibrations 5 Gn, 5...150 Hz
Operating altitude <= 6561.68 ft (2000 m)
Show all 59 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number GV2ME10A
Type designation GV2ME
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487541868

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.258 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for GV2ME10A

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • CB Scheme
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • IEC/EN 60335-2-40:Annex JJ
  • IEC/EN 60335-1:Clause 30.2
Quick answers

Questions about the GV2ME

What is the rated current of GV2ME?

The rated current of GV2ME is 6.3 A.

Which supply voltage is GV2ME rated for?

The rated operational voltage of GV2ME is 690 V AC.

What motor power is GV2ME rated for?

The rated motor power of GV2ME is 2.2 kW.

What is the HS code of GV2ME for customs?

The tariff (HS) code on file for GV2ME is 853620.

What is the EAN of GV2ME?

The EAN (GTIN) of GV2ME is 3606487541868.

Where does GV2ME ship from, and how fast?

GV2ME ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
