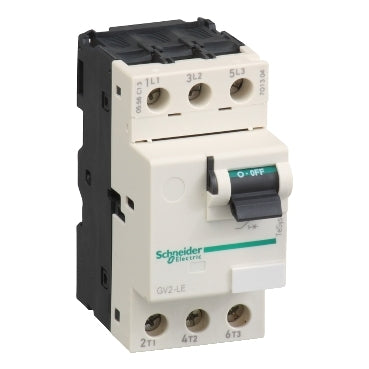

TeSys GV2 magnetic-only manual motor circuit breaker, 14 A, 15 kA Icu at 400/415 V, toggle switch, DIN rail mount.
The Schneider Electric GV2LE16 is a TeSys GV2 manual motor circuit breaker with magnetic-only tripping, rated 14 A with a 15 kA breaking capacity at 400/415 V per IEC 60947-2. Its toggle-switch actuator gives local on/off control and short-circuit disconnection for motors up to 5.5 kW at 400/415 V, and the unit doubles as a load-break isolator per IEC 60947-1.
At 14 A, the GV2LE16 sits at the top of the GV2LE frame and its magnetic trip threshold rises to 253.4 A, matched to motors up to 5.5 kW at 400/415 V. Breaking capacity at 400/415 V drops to 15 kA on this frame, well below the 100 kA rating of the lower-current GV2LE variants, so check upstream fuse or breaker coordination before specifying it as the sole short-circuit protection on a higher-fault-level board. As with the rest of the GV2LE line, it trips on short-circuit current only — add a thermal overload relay for overload protection.
Used as a manual motor disconnect and short-circuit protector ahead of a contactor in TeSys Deca motor-control assemblies, panel-board motor feeders, and machine-building enclosures where a toggle-operated local isolator is required alongside DIN-rail mounted control gear.
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 |
| Product or Component Type | Motor circuit breaker |
| Device short name | GV2LE |
| Device Application | Motor protection |
| Trip unit technology | Magnetic |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1 |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Motor power kW | 5.5 kW 400/415 V AC 50/60 Hz, 7.5 kW 500 V AC 50/60 Hz, 9 kW 690 V AC 50/60 Hz, 11 kW 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 50 % 400/415 V AC 50/60 Hz IEC 60947-2, 50 % 440 V AC 50/60 Hz IEC 60947-2, 75 % 500 V AC 50/60 Hz IEC 60947-2, 75 % 690 V AC 50/60 Hz IEC 60947-2 |
| Control Type | Toggle |
| Line Rated Current | 14 A |
| Magnetic tripping current | 253.4 A |
| [Ith] conventional free air thermal current | 14 A IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Suitability for isolation | Yes IEC 60947-1 |
| Power dissipation per pole | 1.8 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Connections - terminals | Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1…6 mm²) - solid, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - flexible without cable end, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.006 in² (1…4 mm²) - flexible with cable end |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail clipped, Panel screwed with adaptor plate) |
| Mounting position | Horizontal, Vertical |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Depth | 3.09 in (78.5 mm) |
| Net Weight | 0.73 lb(US) (0.33 kg) |
| color | Dark grey |
| Standards | EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40:Annex JJ |
|---|---|
| Product Certifications | CB Scheme, CE, UKCA, CCC, cULus, EAC, LROS (Lloyds register of shipping), BV, RINA, DNV-GL |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 30 Gn for 11 ms, Vibrations 5 Gn, 5...150 Hz |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Part number | GV2LE16 |
|---|---|
| Type designation | GV2LE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110516999 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.33 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of GV2LE is 14 A.
The rated motor power of GV2LE is 5.5 (400–415) kW.
The tariff (HS) code on file for GV2LE is 853620.
The EAN (GTIN) of GV2LE is 3389110516999.
