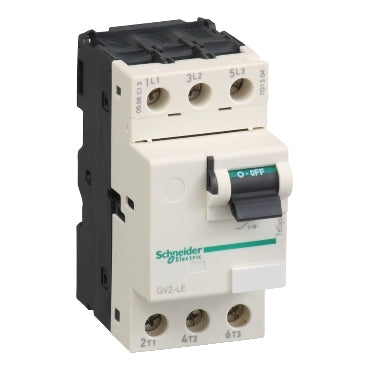

TeSys GV2 magnetic-only manual motor circuit breaker, 2.5 A, 100 kA Icu at 400/415 V, toggle switch, DIN rail mount.
The Schneider Electric GV2LE07 is a TeSys GV2 manual motor circuit breaker with magnetic-only tripping, rated 2.5 A with a 100 kA breaking capacity at 400/415 V per IEC 60947-2. Its toggle-switch actuator gives local on/off control and short-circuit disconnection for motors up to 0.75 kW at 400/415 V, and the unit doubles as a load-break isolator per IEC 60947-1.
The GV2LE07 trips on short-circuit current only — its magnetic-only design has no thermal element, so pair it with a separate thermal overload relay when the application needs overload protection, or select a thermal-magnetic GV2ME variant instead. At 2.5 A with a 39 A magnetic trip threshold, it fits motors up to 0.75 kW at 400/415 V; the next current step up in the GV2 range covers larger motors in the same frame. Its 100 kA Icu at 400/415 V lets it sit on a sub-distribution board without an upstream breaker rated beyond typical factory fault levels.
Used as a manual motor disconnect and short-circuit protector ahead of a contactor in TeSys Deca motor-control assemblies, panel-board motor feeders, and machine-building enclosures where a toggle-operated local isolator is required alongside DIN-rail mounted control gear.
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 |
| Product or Component Type | Motor circuit breaker |
| Device short name | GV2LE |
| Device Application | Motor protection |
| Trip unit technology | Magnetic |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1 |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Motor power kW | 0.75 kW 400/415 V AC 50/60 Hz, 1.1 kW 400/415 V AC 50/60 Hz, 1.1 kW 500 V AC 50/60 Hz, 1.5 kW 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 75 % 690 V AC 50/60 Hz IEC 60947-2 |
| Control Type | Toggle |
| Line Rated Current | 2.5 A |
| Magnetic tripping current | 39 A |
| [Ith] conventional free air thermal current | 2.5 A IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Suitability for isolation | Yes IEC 60947-1 |
| Power dissipation per pole | 1.8 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Connections - terminals | Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1…6 mm²) - solid, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - flexible without cable end, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.006 in² (1…4 mm²) - flexible with cable end |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail clipped, Panel screwed with adaptor plate) |
| Mounting position | Horizontal, Vertical |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Depth | 3.09 in (78.5 mm) |
| Net Weight | 0.73 lb(US) (0.33 kg) |
| color | Dark grey |
| Standards | EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40:Annex JJ |
|---|---|
| Product Certifications | CB Scheme, CE, UKCA, CCC, cULus, EAC, LROS (Lloyds register of shipping), BV, RINA, DNV-GL |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 30 Gn for 11 ms, Vibrations 5 Gn, 5...150 Hz |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Part number | GV2LE07 |
|---|---|
| Type designation | GV2LE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110516920 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.33 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
