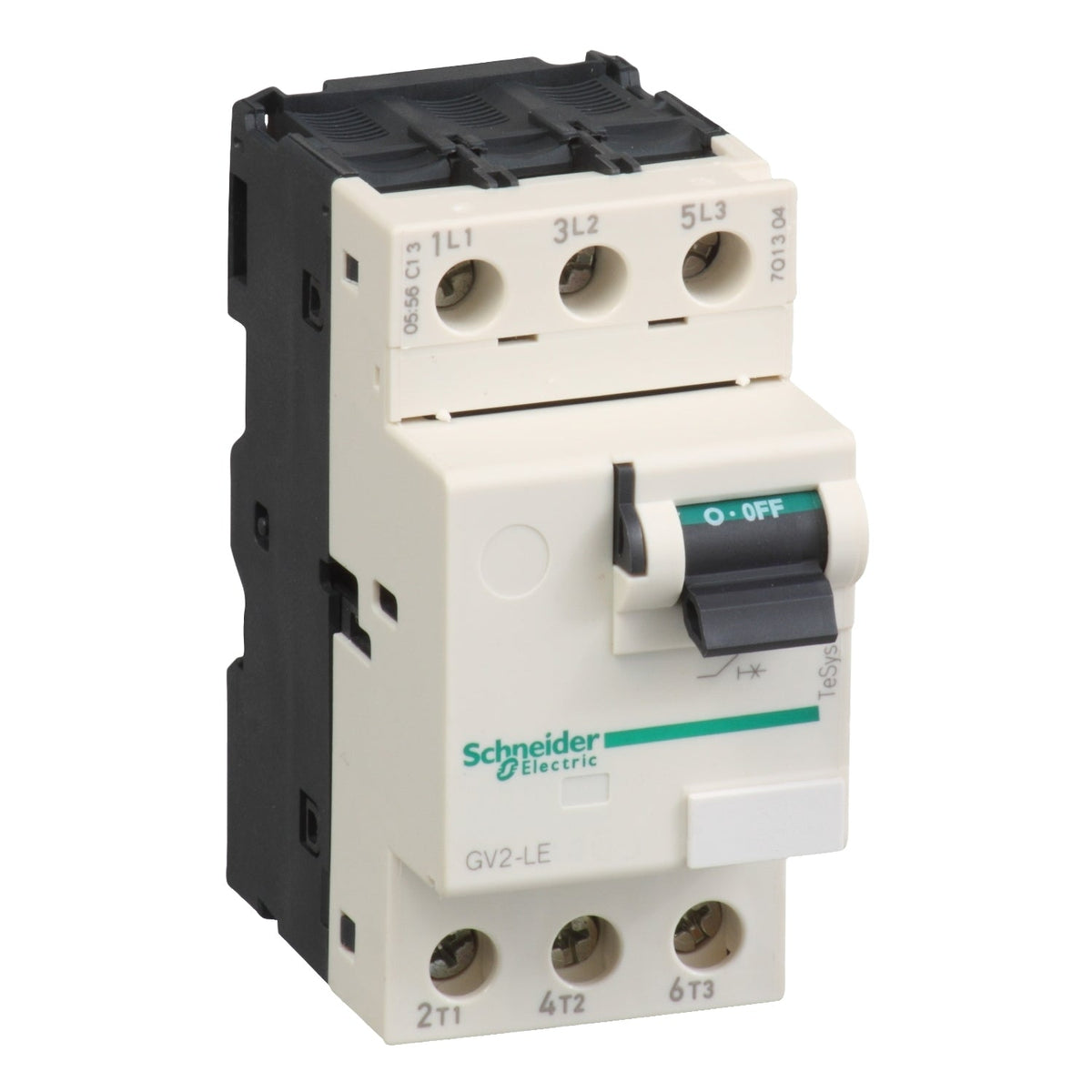

Schneider Electric GV2LE06 TeSys Deca Magnetic 3P 1.6 A 100 kA Motor Protection Circuit Breaker (MPCB)

The Schneider Electric GV2LE06 is a TeSys Deca motor circuit breaker with magnetic-only protection, rated 1.6 A and 100 kA Icu at 400/415 V across 3 poles. It trips on short circuit at roughly 13x its rated current and gives manual isolation and start-stop control through a toggle, leaving thermal overload protection to a separate LRD relay.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• CCC
• EAC
• EN/IEC 60947-2
• EN/IEC 60947-4-1

Selection Notes

Use the GV2LE06 where the motor branch already has separate thermal overload protection (an LRD relay) and the circuit breaker only needs to clear short circuits — the magnetic-only trip unit has no adjustable thermal range, so it will not protect the motor against sustained overcurrent on its own. The toggle gives 100,000 AC-3 start-stop cycles, matching GV2 siblings that add thermal-magnetic protection (GV2ME/GV2P) in the same frame size. Fixed magnetic tripping also means the GV2LE06 does not need re-setting when the motor is changed for one of a similar locked-rotor current, unlike an adjustable thermal dial.
