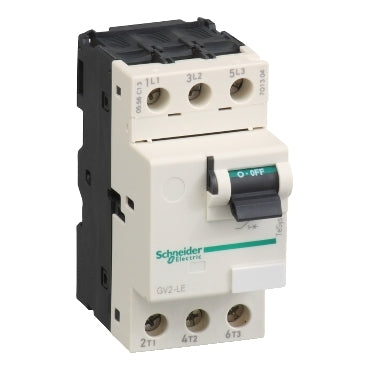

TeSys Deca GV2LE manual motor circuit breaker, 0.63 A magnetic trip, 690 V AC, 100 kA breaking capacity, toggle control.
The Schneider Electric GV2LE04 is a TeSys Deca GV2 manual motor circuit breaker with a fixed magnetic trip unit set for a 0.63 A line current and a 9.3 A magnetic tripping point. Rated for 690 V AC with a 100 kA breaking capacity across the full voltage range, it isolates and short-circuit-protects small motor branches down to 0.12 kW without a built-in thermal overload function.
The LE designation marks this as a magnetic-only circuit protector: the 9.3 A instantaneous trip point protects against short circuits and locked-rotor surges, but there is no thermal overload element, so pair it with a separate thermal overload relay or an already-protected motor when continuous overload protection is required. At a fixed 0.63 A line rating it covers the smallest motors in the GV2 range (0.12-0.18 kW at 400/415 V); larger loads call for a higher current variant in the same GV2LE range. The 100 kA Icu at both 400/415 V and 690 V means it holds full breaking capacity even at the highest rated voltage, which simplifies selection when the same panel design serves multiple supply voltages.
Used as a motor branch disconnector and short-circuit protector ahead of a contactor in TeSys motor starter combinations, or as a stand-alone isolator for small auxiliary motors and fan loads on 35 mm DIN rail.
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 |
| Product or Component Type | Motor circuit breaker |
| Device short name | GV2LE |
| Device Application | Motor protection |
| Trip unit technology | Magnetic |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1 |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Motor power kW | 0.12 kW 400/415 V AC 50/60 Hz, 0.18 kW 400/415 V AC 50/60 Hz, 0.37 kW 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 690 V AC 50/60 Hz IEC 60947-2 |
| Control Type | Toggle |
| Line Rated Current | 0.63 A |
| Magnetic tripping current | 9.3 A |
| [Ith] conventional free air thermal current | 0.63 A IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Suitability for isolation | Yes IEC 60947-1 |
| Power dissipation per pole | 1.8 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Connections - terminals | Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1…6 mm²) - solid, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - flexible without cable end, Power circuit: screw clamp terminal 2 cable(s) 0.002…0.006 in² (1…4 mm²) - flexible with cable end |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail clipped, Panel screwed with adaptor plate) |
| Mounting position | Horizontal, Vertical |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Depth | 3.09 in (78.5 mm) |
| Net Weight | 0.73 lb(US) (0.33 kg) |
| color | Dark grey |
| Standards | EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40:Annex JJ |
|---|---|
| Product Certifications | CB Scheme, CE, UKCA, CCC, cULus, EAC, LROS (Lloyds register of shipping), BV, RINA, DNV-GL |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 30 Gn for 11 ms, Vibrations 5 Gn, 5...150 Hz |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Part number | GV2LE04 |
|---|---|
| Type designation | GV2LE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110516883 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.33 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of GV2LE is 0.63 A.
The rated motor power of GV2LE is 0.12–0.18 (400–415) kW.
The tariff (HS) code on file for GV2LE is 853620.
The EAN (GTIN) of GV2LE is 3389110516883.
GV2LE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
