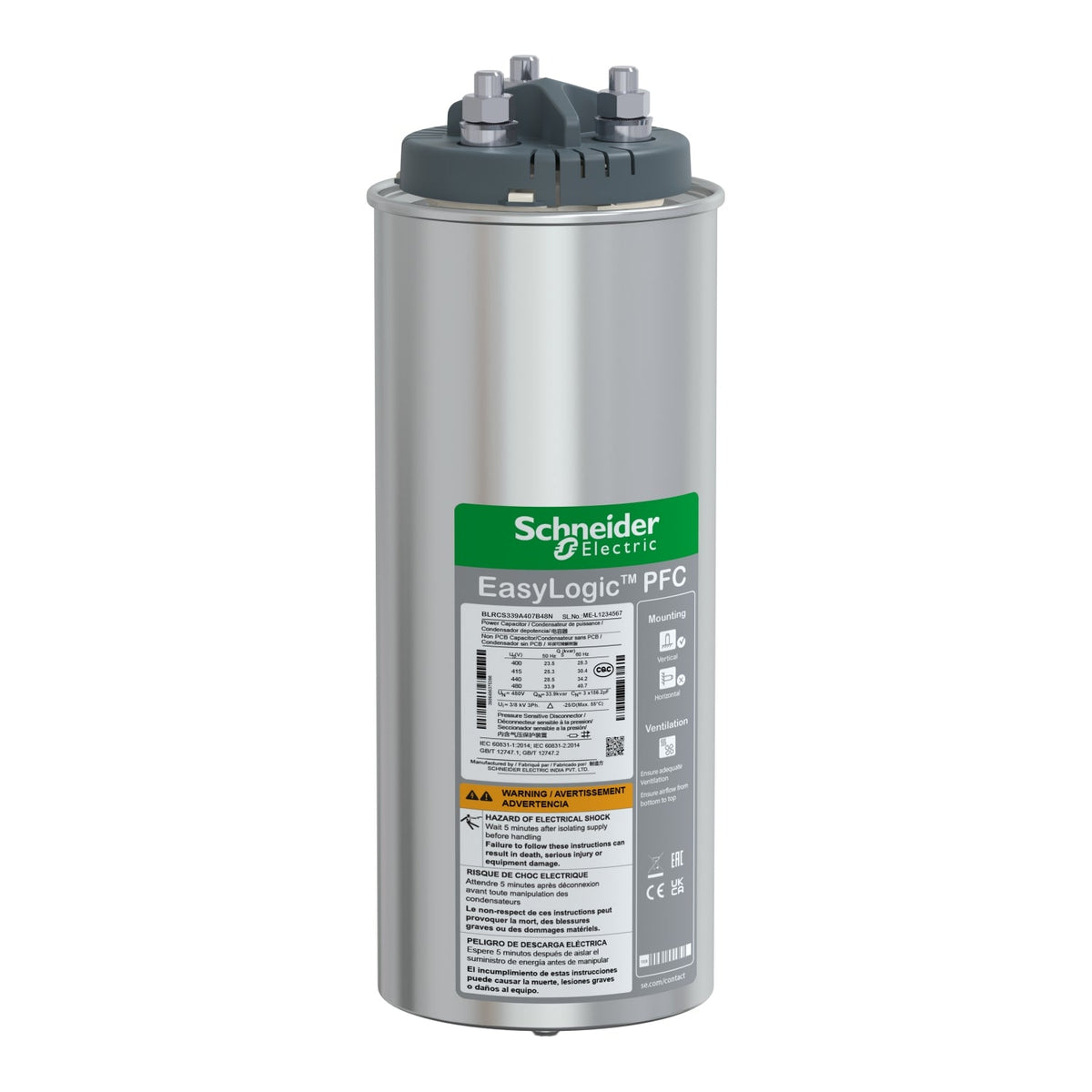

The Schneider Electric BLRCS339A407B48N is an EasyLogic standard-duty power factor correction capacitor rated 33.9 kvar at 480 V AC, 50 Hz (40.7 kvar at 60 Hz), built for three-phase networks with network harmonic content at or below 10%. The metallized polypropylene film element is housed in a IP00 can with stud terminals, dimensioned 116 mm diameter by 321 mm high and weighing 4.1 kg.
This is a standard-duty (SDuty) EasyLogic capacitor, intended for networks with network harmonic content at or below 10% and no significant non-linear loads — where variable frequency drives or large rectifier loads push harmonic content higher, the heavy-duty (HDuty) EasyLogic range with detuned reactors is the correct choice instead. Within the 480 V EasyLogic SDuty line, select this 33.9 kvar unit to match the reactive power deficit measured at the compensation point; oversizing a correction capacitor raises the risk of resonance with upstream reactive elements, so pairing kvar step size to the actual load profile matters more than rounding up to the next sibling rating.
| Part number | BLRCS339A407B48N |
|---|---|
| Model no | EasyLogic PFC Capacitor |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Rated operational voltage | 480 V AC |
|---|---|
| Protection type | IP00 |
| Shipping weight | 4.1 kg |
|---|
| HS code | 853210 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Product or component type | Standard duty capacitor |
|---|---|
| Rated reactive power | 33.9 kvar at 480 V, 50 Hz / 40.7 kvar at 60 Hz |
| Rated voltage | 480 V AC, 50/60 Hz |
| Network harmonic content | <= 10 % |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| Continuous overcurrent capacity | 1.5 x In |
| Inrush current | 200 x In |
| Dielectric losses | < 0.2 W/kvar |
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | -5 % to +10 % |
| Connections - terminals | stud terminals |
| Mounting mode | Vertical |
| Diameter | 116 mm |
| Height | 321 mm |
| Maximum switching operations per year | 5000 |
| Service life | 100,000 h |
| Ambient air temperature for operation | -25...55 °C |
From the manufacturer description; the values above take precedence.
