Part number
BLRCH144A173B48
$94.88 On request Dispatch — · From TürkiyeGet a Quote
PowerLogic

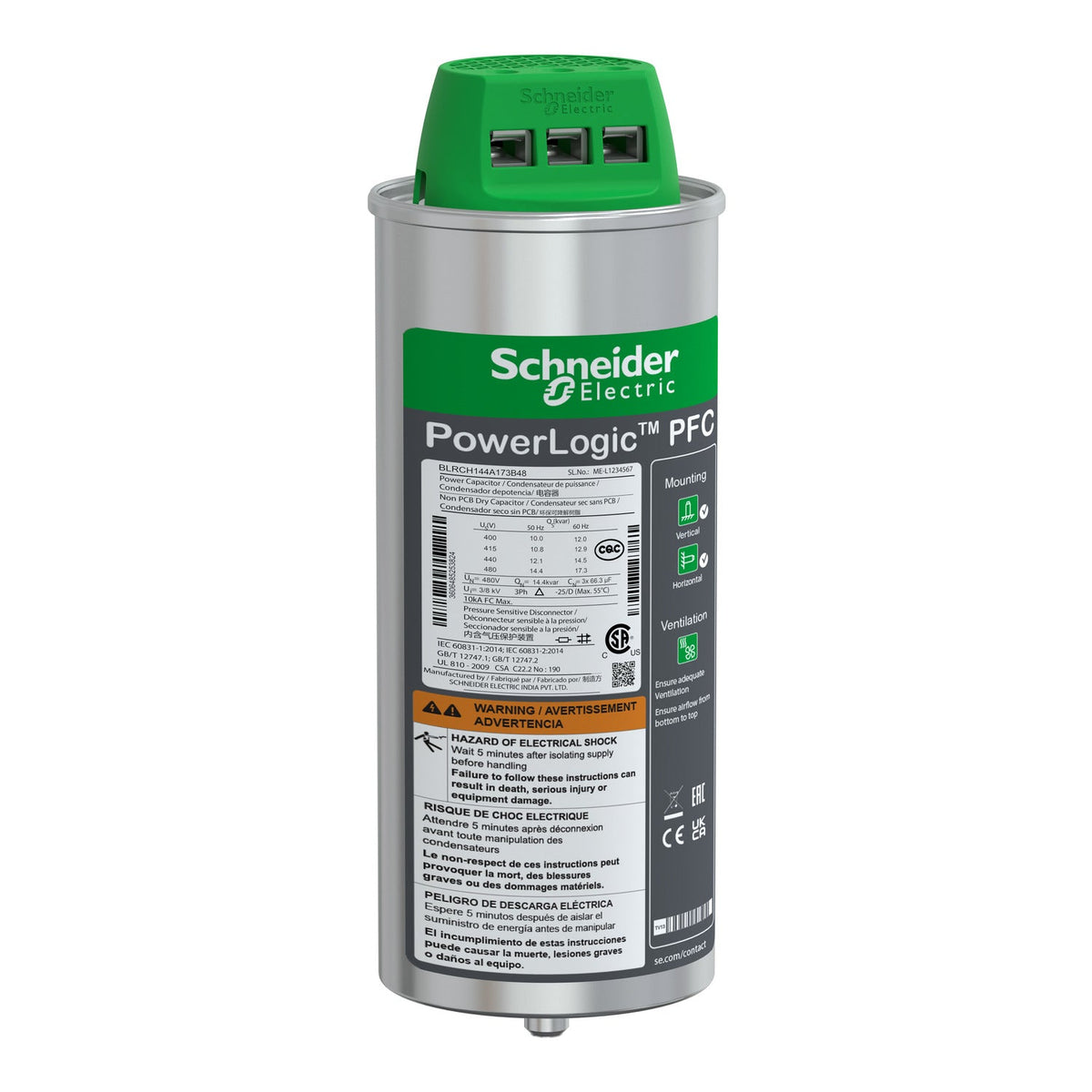

Schneider Electric BLRCH144A173B48 VarPlus Can HDuty 14.4/17.3 kvar 480 V Power Factor Correction Capacitor

VarPlus Can HDuty power factor correction capacitor, 14.4 kvar, 480 V, 50/60 Hz.

Rated operational voltage
480 V AC
Description

About the BLRCH144A173B48

The Schneider Electric BLRCH144A173B48 is a VarPlus Can HDuty power factor correction capacitor rated 14.4 kvar at 480 V, 50 Hz (17.3 kvar at 60 Hz), built for networks with up to 20% harmonic content where the circulating harmonic current requires an increased rated current capacitor rather than a standard-duty unit. Fastening is by clamptite terminal.

Certifications & Standards

  • IEC 60831-2
  • IEC 60831-1

Selection Notes

Match the BLRCH144A173B48 to the switchboard's nominal voltage (480 V) and the reactive power step the correction bank needs -- 14.4 kvar at 50 Hz, 17.3 kvar at 60 Hz. It is the highest reactive-power step in the 480 V HDuty line on the 90 mm can, one size above the 12.5/15 kvar BLRCH125A150B48 at the same voltage and can diameter. The 1.8 x In continuous overcurrent capacity and <=20% permissible network harmonic content make HDuty construction the right choice where variable-speed drives or other non-linear loads circulate harmonic current; on a clean network a VarPlus Can SDuty unit would be the lower-cost alternative.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 11

Range PowerLogic
Range of product PowerLogic
Product or component type Heavy duty capacitor
Product name PowerLogic PFC Capacitor
Network frequency 50/60 Hz
Series name HDuty
Network harmonic content <= 20 %
Electrical parameters 14.4 kvar 480 V 50 Hz, 17.3 kvar 480 V 60 Hz
Maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity 1.8 x In
Rated voltage 480 V AC 50/60 Hz

Complementary 15

Dielectric losses < 0.2 W/kvar
Power losses < 0.5 W/kVAr
Capacitance tolerance - 5 % to 10 %
Voltage test 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s
Inrush current 250 x In
Maximum switching operation per year 7000
Service life in hours 130000 h
Dielectric material Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)
Impregnation material Non-PCB dry PUR resin, Biodegradable
Type of installation Indoor installation
Connections - terminals ClampTite terminal
Mounting mode Upright/horizontal
Diameter 90 mm
Height 242 mm
Net weight 1.6 kg

Environment 6

Standards IEC 60831-2, IEC 60831-1
IP degree of protection IP20
Operating altitude 2000 m
Temperature class D
Ambient air temperature for operation -25…55 °C
Relative humidity 95 %
Show all 55 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number BLRCH144A173B48
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 13.000 cm
Package 1 Length 29.500 cm
Package 1 Weight 1.781 kg
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.183 kg
Shipping weight 1.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BLRCH144A173B48

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60831-2
  • IEC 60831-1
Quick answers

Questions about the BLRCH144A173B48

Which supply voltage is BLRCH144A173B48 rated for?

The rated operational voltage of BLRCH144A173B48 is 480 V AC.

What is the HS code of BLRCH144A173B48 for customs?

The tariff (HS) code on file for BLRCH144A173B48 is 853210.

Where does BLRCH144A173B48 ship from, and how fast?

BLRCH144A173B48 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
