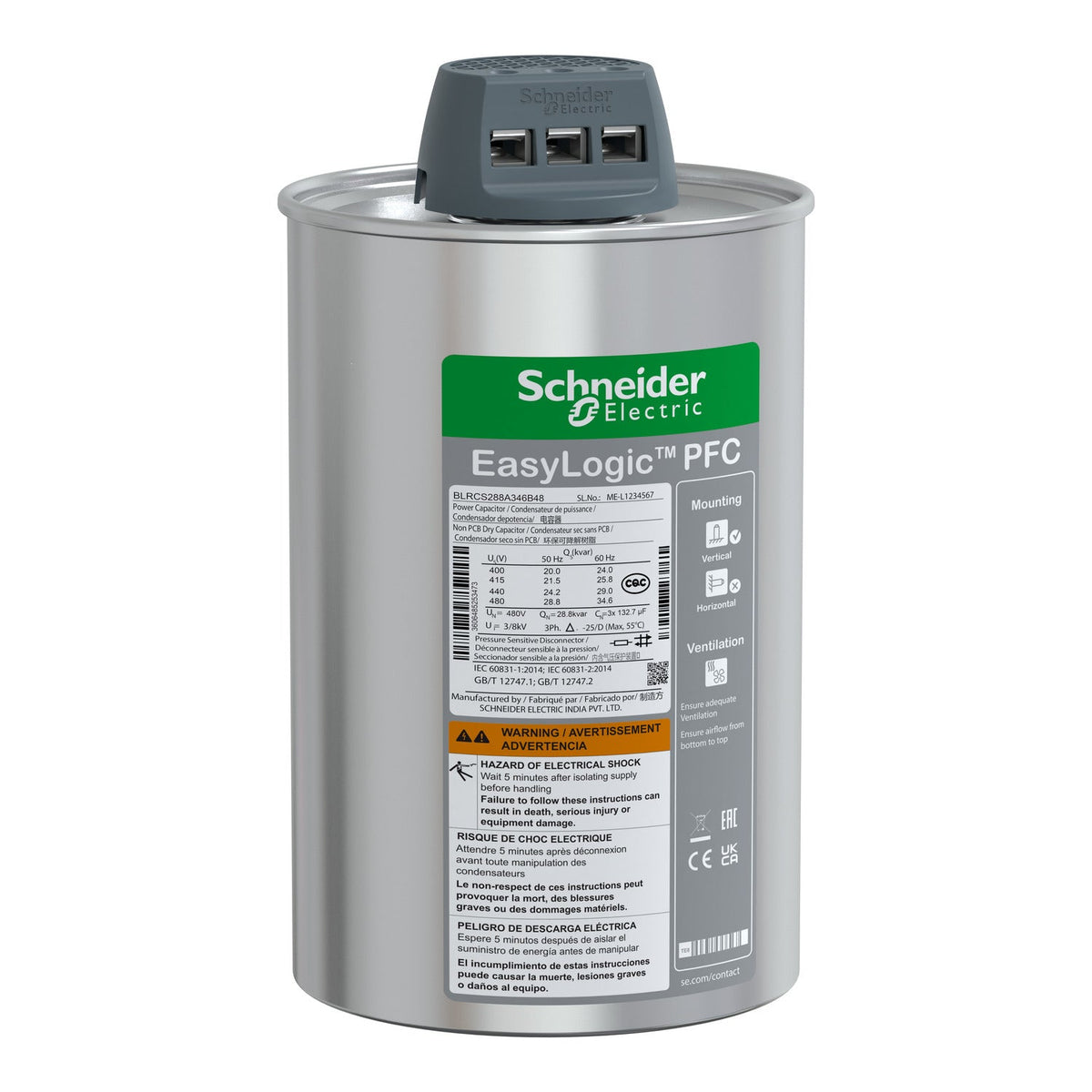

The Schneider Electric BLRCS288A346B48 is an EasyLogic standard-duty power factor correction capacitor rated 28.8 kvar at 480 V AC, 50 Hz (34.6 kvar at 60 Hz), built for three-phase networks with network harmonic content at or below 10%. The metallized polypropylene film element is housed in a IP20 can with ClampTite terminal, dimensioned 136 mm diameter by 242 mm high and weighing 3.2 kg.
This is a standard-duty (SDuty) EasyLogic capacitor, intended for networks with network harmonic content at or below 10% and no significant non-linear loads — where variable frequency drives or large rectifier loads push harmonic content higher, the heavy-duty (HDuty) EasyLogic range with detuned reactors is the correct choice instead. Within the 480 V EasyLogic SDuty line, select this 28.8 kvar unit to match the reactive power deficit measured at the compensation point; oversizing a correction capacitor raises the risk of resonance with upstream reactive elements, so pairing kvar step size to the actual load profile matters more than rounding up to the next sibling rating.
| Range | EasyLogic |
|---|---|
| Product or component type | Standard duty capacitor |
| Product name | EasyLogic PFC Capacitor |
| Network frequency | 50/60 Hz |
| Series name | EasyLogic PFC Capacitor |
| Network harmonic content | <= 10 % |
| Electrical parameters | 28.8 kvar 480 V 50 Hz, 34.6 kvar 480 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.5 x In |
| Rated voltage | 480 V AC 50/60 Hz |
| Dielectric losses | < 0.2 W/kvar |
|---|---|
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s |
| Inrush current | 200 x In |
| Maximum switching operation per year | 5000 |
| Service life in hours | 100000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, |
| Impregnation material | Non-PCB soft PUR resin, Biodegradable |
| Type of installation | Indoor installation |
| Connections - terminals | ClampTite terminal |
| Mounting mode | Vertical |
| Diameter | 136 mm |
| Height | 242 mm |
| Net weight | 3.2 kg |
| Standards | IEC 60831-2, IEC 60831-1 |
|---|---|
| IP degree of protection | IP20 |
| Operating altitude | 2000 m |
| Temperature class | D |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95 % |
| Part number | BLRCS288A346B48 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 24 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.000 cm |
| Package 1 Width | 19.000 cm |
| Package 1 Length | 31.500 cm |
| Package 1 Weight | 3.869 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 12.257 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 15 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 69.285 kg |
| Shipping weight | 3.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
