Part number
BLRCS125A150B48
$73.06 On request Dispatch — · From TürkiyeGet a Quote

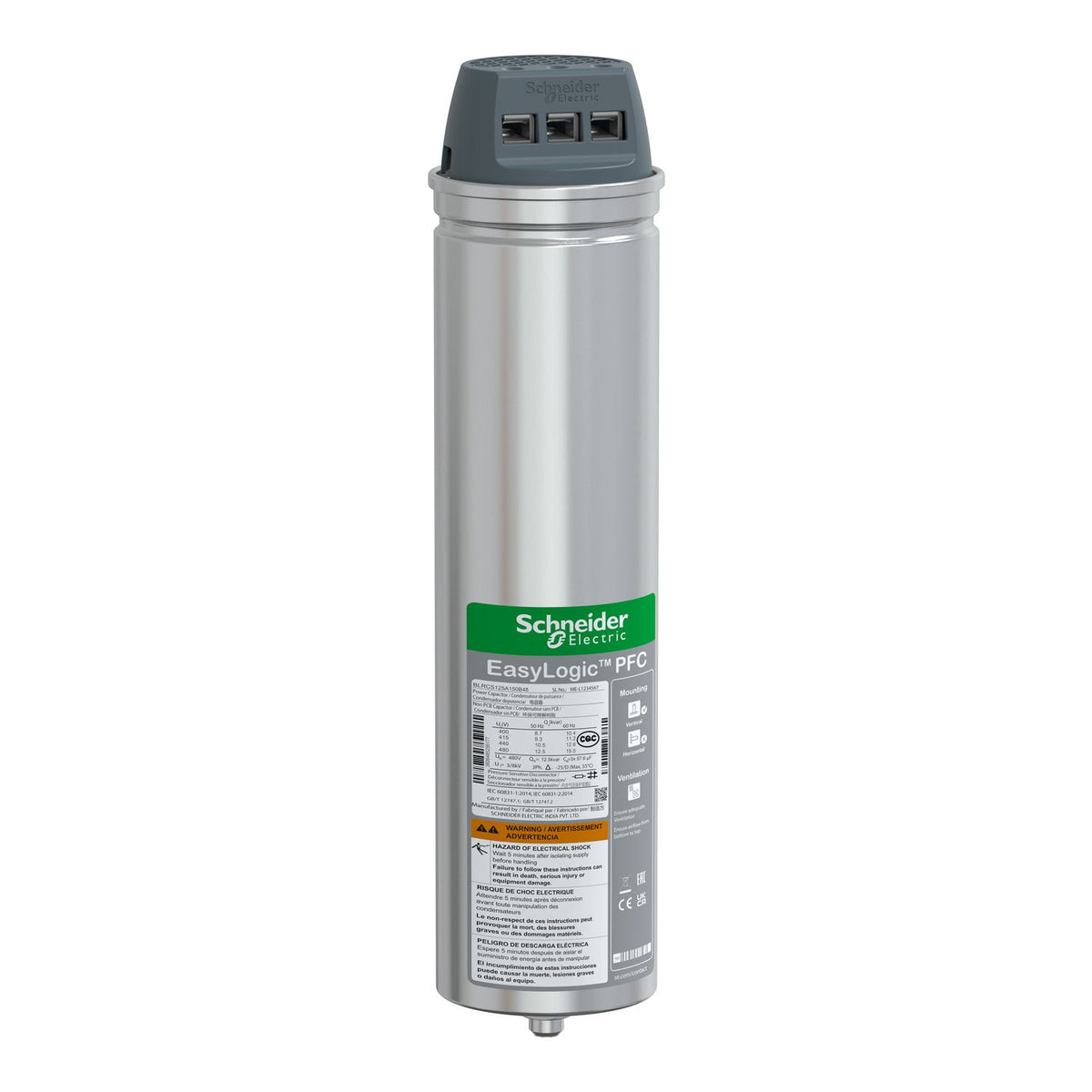

Schneider Electric BLRCS125A150B48 EasyLogic 12.5/15 kvar 480 V Power Factor Correction Capacitor

EasyLogic PFC capacitor, 12.5 kvar at 480 V, 50/60 Hz. IP20, clamptite terminal.

Rated operational voltage
480 V AC
Description

About the BLRCS125A150B48

The Schneider Electric BLRCS125A150B48 is an EasyLogic power factor correction capacitor rated 12.5 kvar at 480 V, 50 Hz (15 kvar at 60 Hz). Built for standard operating conditions with network harmonic content up to 10 %, it corrects the reactive power drawn by stable, largely linear loads, cutting the current an installation pulls from the supply and avoiding low-power-factor penalties on the utility bill.

Certifications & Standards

  • IEC 60831-1
  • IEC 60831-2

Selection Notes

At 12.5 kvar and 480 V, the BLRCS125A150B48 fits a step within an automatic power factor correction bank sized for stable, largely linear loads. Move to the next EasyLogic step in the 480 V family as the compensated reactive load grows, or down a step for finer switching granularity. Because continuous overcurrent capacity is limited to 1.5 x In, keep this variant on networks where harmonic content stays at or below 10%; on busbars with higher distortion from variable-speed drives or rectifiers, the VarPlus Can HDuty range with its 1.8 x In rating is the right choice instead.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 10

Range EasyLogic
Product or component type Standard duty capacitor
Product name EasyLogic PFC Capacitor
Network frequency 50/60 Hz
Series name EasyLogic PFC Capacitor
Network harmonic content <= 10 %
Electrical parameters 12.5 kvar 480 V 50 Hz, 15 kvar 480 V 60 Hz
Maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity 1.5 x In
Rated voltage 480 V AC 50/60 Hz

Complementary 15

Dielectric losses < 0.2 W/kvar
Power losses < 0.5 W/kVAr
Capacitance tolerance - 5 % to 10 %
Voltage test 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s
Inrush current 200 x In
Maximum switching operation per year 5000
Service life in hours 100000 h
Dielectric material Metallized polypropylene film with Zn/Al alloy,
Impregnation material Non-PCB soft PUR resin, Biodegradable
Type of installation Indoor installation
Connections - terminals ClampTite terminal
Mounting mode Vertical
Diameter 75 mm
Height 308 mm
Net weight 1.3 kg

Environment 6

Standards IEC 60831-2, IEC 60831-1
IP degree of protection IP20
Operating altitude 2000 m
Temperature class D
Ambient air temperature for operation -25…55 °C
Relative humidity 95 %
Show all 54 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number BLRCS125A150B48
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 24

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 28.0 cm
Package 1 Width 8.0 cm
Package 1 Length 8.0 cm
Package 1 Weight 1.718 kg
Unit Type of Package 2 S04
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 14.996 kg
Shipping weight 1.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BLRCS125A150B48

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60831-2
  • IEC 60831-1
Quick answers

Questions about the BLRCS125A150B48

Which supply voltage is BLRCS125A150B48 rated for?

The rated operational voltage of BLRCS125A150B48 is 480 V AC.

What is the HS code of BLRCS125A150B48 for customs?

The tariff (HS) code on file for BLRCS125A150B48 is 853210.

Where does BLRCS125A150B48 ship from, and how fast?

BLRCS125A150B48 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
