Part number
BLRCS125A150B44
$62.36 On request Dispatch — · From TürkiyeGet a Quote

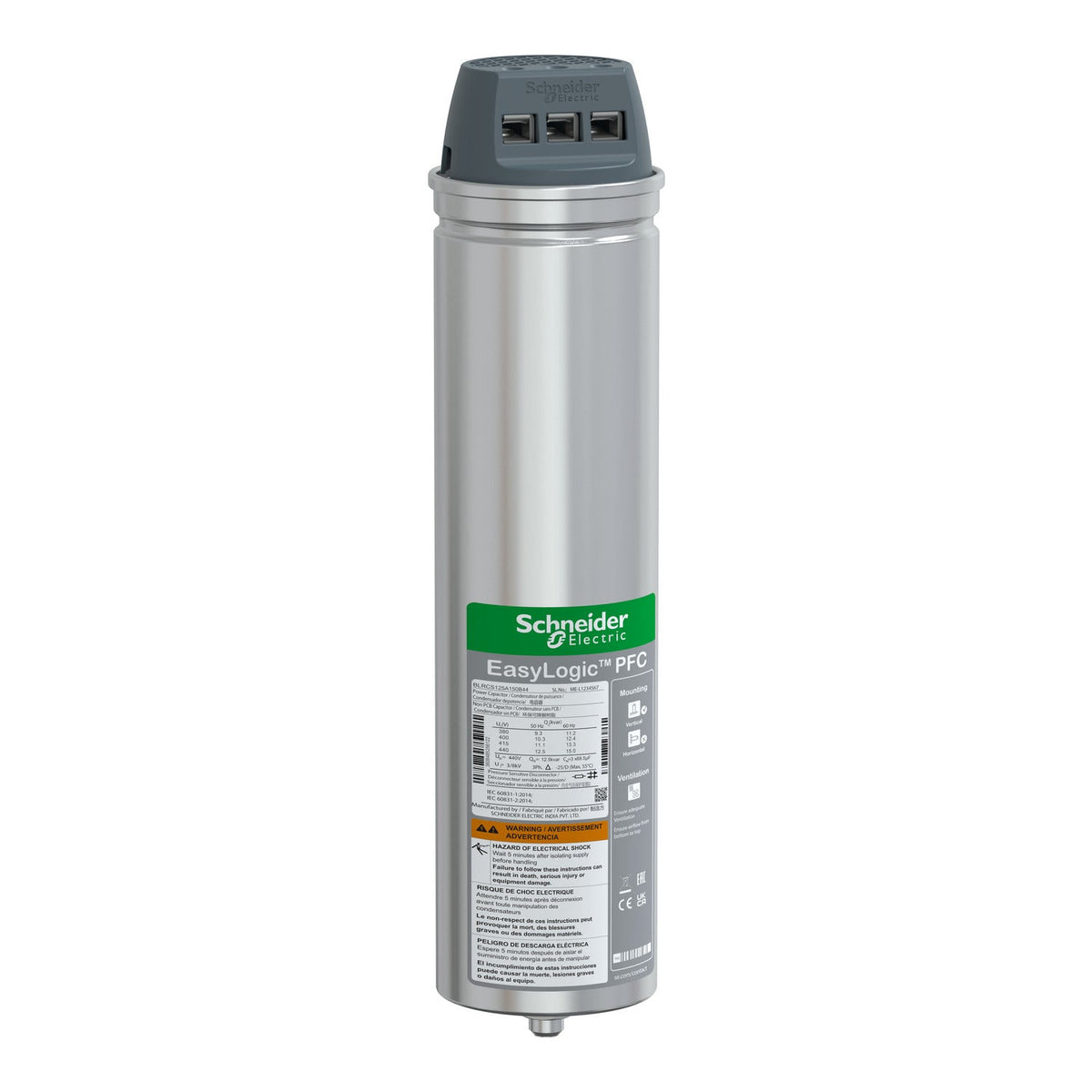

Schneider Electric BLRCS125A150B44 EasyLogic 12.5/15 kvar 440 V Power Factor Correction Capacitor

EasyLogic PFC capacitor, 12.5 kvar at 440 V, 50/60 Hz. IP20, clamptite terminal.

Rated operational voltage
440 V AC
Description

About the BLRCS125A150B44

The Schneider Electric BLRCS125A150B44 is an EasyLogic power factor correction capacitor rated 12.5 kvar at 440 V, 50 Hz (15 kvar at 60 Hz). Built for standard operating conditions with network harmonic content up to 10 %, it corrects the reactive power drawn by stable, largely linear loads, cutting the current an installation pulls from the supply and avoiding low-power-factor penalties on the utility bill.

Certifications & Standards

  • IEC 60831-1
  • IEC 60831-2

Selection Notes

At 12.5 kvar and 440 V, the BLRCS125A150B44 fits a step within an automatic power factor correction bank sized for stable, largely linear loads. Move to the next EasyLogic step in the 440 V family as the compensated reactive load grows, or down a step for finer switching granularity. Because continuous overcurrent capacity is limited to 1.5 x In, keep this variant on networks where harmonic content stays at or below 10%; on busbars with higher distortion from variable-speed drives or rectifiers, the VarPlus Can HDuty range with its 1.8 x In rating is the right choice instead.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 10

Range EasyLogic
Product or component type Standard duty capacitor
Product name EasyLogic PFC Capacitor
Network frequency 50/60 Hz
Series name EasyLogic PFC Capacitor
Network harmonic content <= 10 %
Electrical parameters 12.5 kvar 440 V 50 Hz, 15 kvar 440 V 60 Hz
Maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity 1.5 x In
Rated voltage 440 V AC 50/60 Hz

Complementary 15

Dielectric losses < 0.2 W/kvar
Power losses < 0.5 W/kVAr
Capacitance tolerance - 5 % to 10 %
Voltage test 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s
Inrush current 200 x In
Maximum switching operation per year 5000
Service life in hours 100000 h
Dielectric material Metallized polypropylene film with Zn/Al alloy,
Impregnation material Non-PCB soft PUR resin, Biodegradable
Type of installation Indoor installation
Connections - terminals ClampTite terminal
Mounting mode Vertical
Diameter 75 mm
Height 308 mm
Net weight 1.3 kg

Environment 6

Standards IEC 60831-2, IEC 60831-1
IP degree of protection IP20
Operating altitude 2000 m
Temperature class D
Ambient air temperature for operation -25…55 °C
Relative humidity 95 %
Show all 54 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number BLRCS125A150B44
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 24

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 28.000 cm
Package 1 Width 8.000 cm
Package 1 Length 8.000 cm
Package 1 Weight 1.704 kg
Unit Type of Package 2 S04
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 14.884 kg
Shipping weight 1.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BLRCS125A150B44

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60831-2
  • IEC 60831-1
Quick answers

Questions about the BLRCS125A150B44

Which supply voltage is BLRCS125A150B44 rated for?

The rated operational voltage of BLRCS125A150B44 is 440 V AC.

What is the HS code of BLRCS125A150B44 for customs?

The tariff (HS) code on file for BLRCS125A150B44 is 853210.

Where does BLRCS125A150B44 ship from, and how fast?

BLRCS125A150B44 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
