Part number
BLRCS106A127B52
$76.41 On request Dispatch — · From TürkiyeGet a Quote

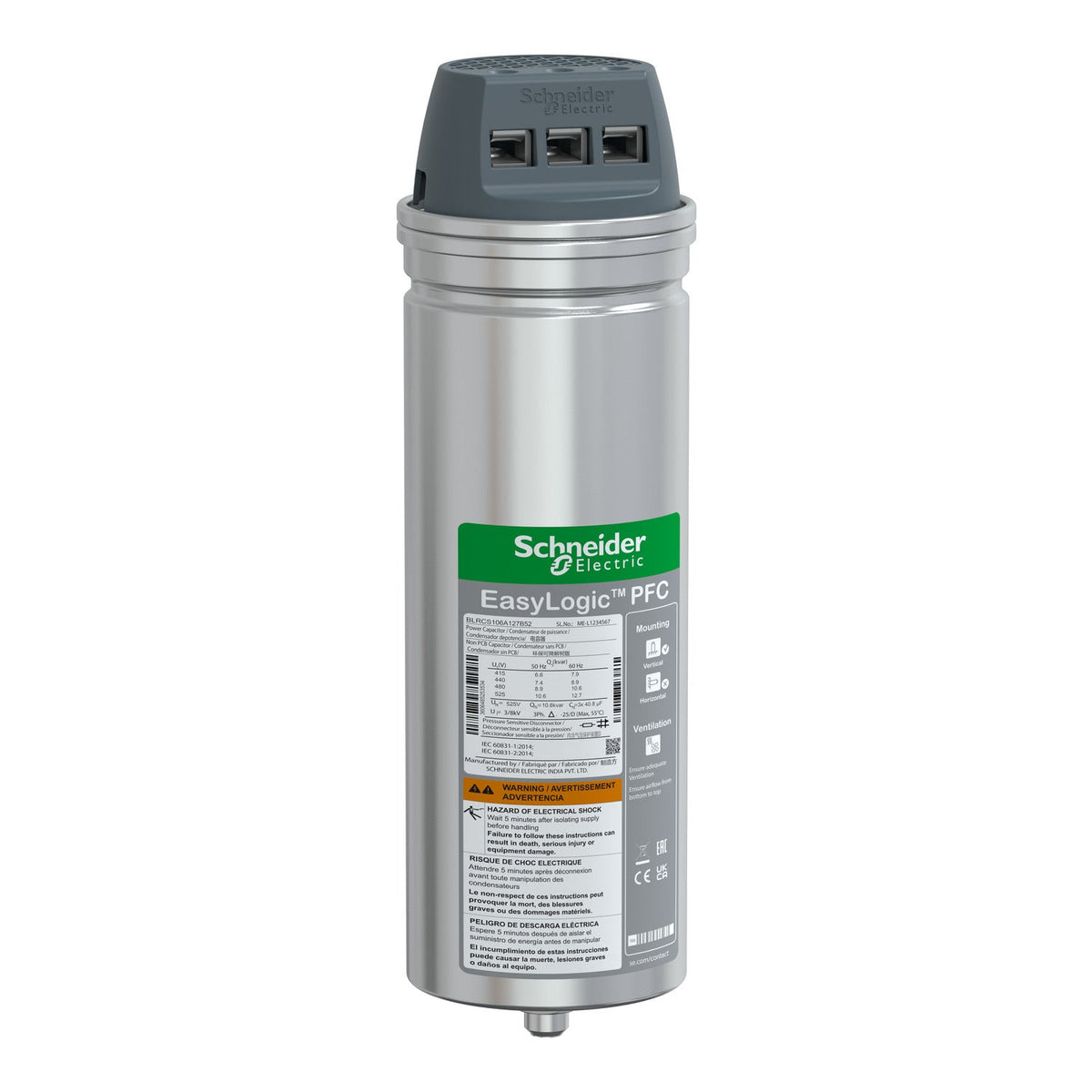

Schneider Electric BLRCS106A127B52 EasyLogic 10.6/12.7 kvar 525 V Power Factor Correction Capacitor

EasyLogic PFC capacitor, 10.6 kvar at 525 V, 50/60 Hz. IP20, clamptite terminal.

Rated operational voltage
525 V AC
Description

About the BLRCS106A127B52

The Schneider Electric BLRCS106A127B52 is an EasyLogic power factor correction capacitor rated 10.6 kvar at 525 V, 50 Hz (12.7 kvar at 60 Hz). Built for standard operating conditions with network harmonic content up to 10 %, it corrects the reactive power drawn by stable, largely linear loads, cutting the current an installation pulls from the supply and avoiding low-power-factor penalties on the utility bill.

Certifications & Standards

  • IEC 60831-1
  • IEC 60831-2

Selection Notes

At 10.6 kvar and 525 V, the BLRCS106A127B52 fits a step within an automatic power factor correction bank sized for stable, largely linear loads. Move to the next EasyLogic step in the 525 V family as the compensated reactive load grows, or down a step for finer switching granularity. Because continuous overcurrent capacity is limited to 1.5 x In, keep this variant on networks where harmonic content stays at or below 10%; on busbars with higher distortion from variable-speed drives or rectifiers, the VarPlus Can HDuty range with its 1.8 x In rating is the right choice instead.

Specification

Full specification

60 values · Last verified 30 Oct 2026

Main 10

Range EasyLogic
Product or component type Standard duty capacitor
Product name EasyLogic PFC Capacitor
Network frequency 50/60 Hz
Series name EasyLogic PFC Capacitor
Network harmonic content <= 10 %
Electrical parameters 10.6 kvar 525 V 50 Hz, 12.7 kvar 525 V 60 Hz
Maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity 1.5 x In
Rated voltage 525 V AC 50/60 Hz

Complementary 15

Dielectric losses < 0.2 W/kvar
Power losses < 0.5 W/kVAr
Capacitance tolerance - 5 % to 10 %
Voltage test 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s
Inrush current 200 x In
Maximum switching operation per year 5000
Service life in hours 100000 h
Dielectric material Metallized polypropylene film with Zn/Al alloy,
Impregnation material Non-PCB soft PUR resin, Biodegradable
Type of installation Indoor installation
Connections - terminals ClampTite terminal
Mounting mode Vertical
Diameter 75 mm
Height 233 mm
Net weight 1.2 kg

Environment 6

Standards IEC 60831-2, IEC 60831-1
IP degree of protection IP20
Operating altitude 2000 m
Temperature class D
Ambient air temperature for operation -25…55 °C
Relative humidity 95 %
Show all 60 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number BLRCS106A127B52
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 24

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 12.000 cm
Package 1 Length 28.500 cm
Package 1 Weight 1.300 kg
Unit Type of Package 2 S04
Number of Units in Package 2 15
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 20.199 kg
Unit Type of Package 3 P06
Number of Units in Package 3 60
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 88.796 kg
Shipping weight 1.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BLRCS106A127B52

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60831-2
  • IEC 60831-1
Quick answers

Questions about the BLRCS106A127B52

Which supply voltage is BLRCS106A127B52 rated for?

The rated operational voltage of BLRCS106A127B52 is 525 V AC.

What is the HS code of BLRCS106A127B52 for customs?

The tariff (HS) code on file for BLRCS106A127B52 is 853210.

Where does BLRCS106A127B52 ship from, and how fast?

BLRCS106A127B52 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
