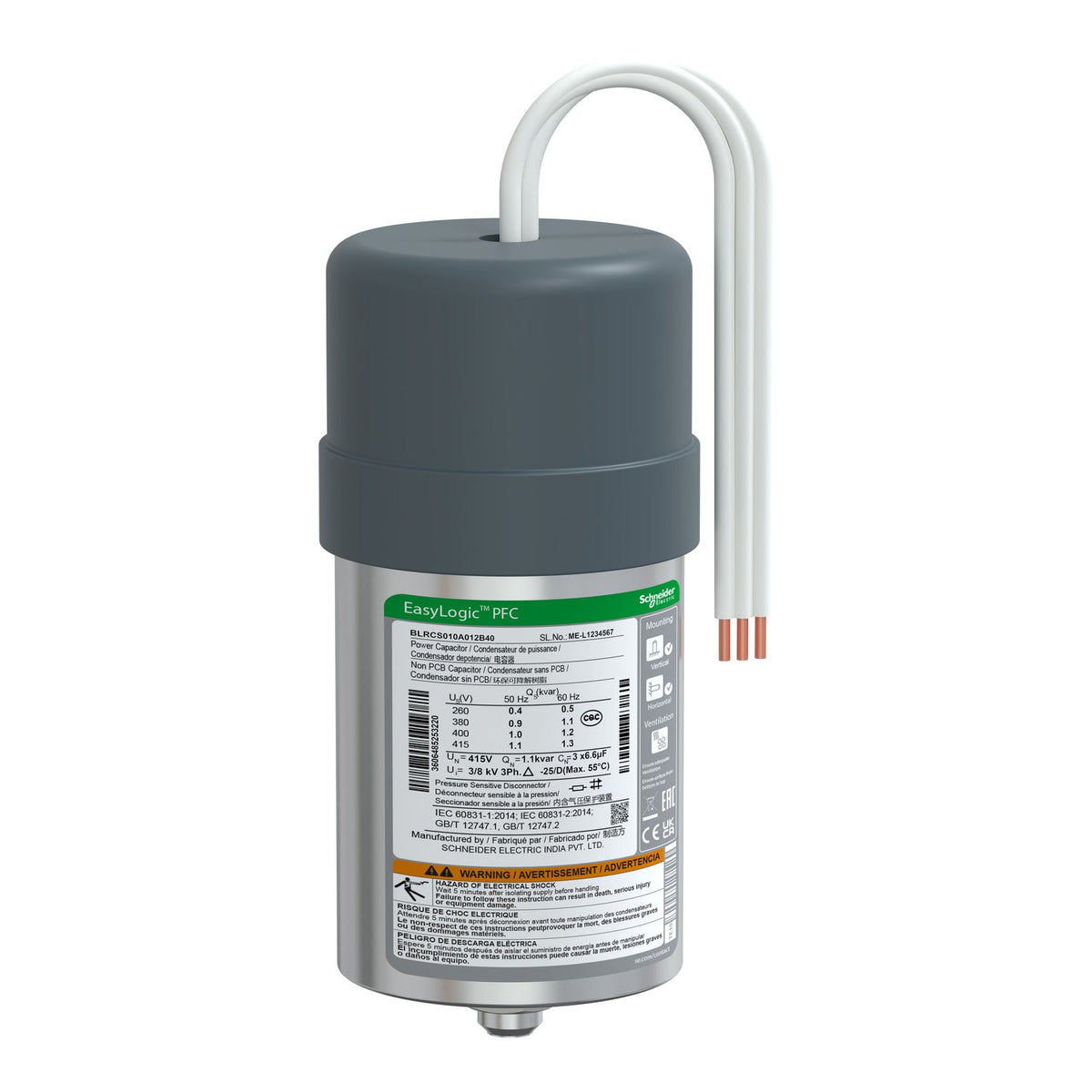

The Schneider Electric BLRCS010A012B40 is an EasyLogic power factor correction capacitor rated 1 kvar at 400 V, 50 Hz (1.2 kvar at 60 Hz). Built for standard operating conditions with network harmonic content up to 10 %, it corrects the reactive power drawn by stable, largely linear loads, cutting the current an installation pulls from the supply and avoiding low-power-factor penalties on the utility bill.
At 1 kvar and 400 V, the BLRCS010A012B40 fits a step within an automatic power factor correction bank sized for stable, largely linear loads. Move to the next EasyLogic step in the 400 V family as the compensated reactive load grows, or down a step for finer switching granularity. Because continuous overcurrent capacity is limited to 1.5 x In, keep this variant on networks where harmonic content stays at or below 10%; on busbars with higher distortion from variable-speed drives or rectifiers, the VarPlus Can HDuty range with its 1.8 x In rating is the right choice instead.
| Range | EasyLogic |
|---|---|
| Product or component type | Standard duty capacitor |
| Product name | EasyLogic PFC Capacitor |
| Network frequency | 50/60 Hz |
| Series name | EasyLogic PFC Capacitor |
| Network harmonic content | <= 10 % |
| Electrical parameters | 0.9 kvar 380 V 50 Hz, 1.1 kvar 380 V 60 Hz, 1 kvar 400 V 50 Hz, 1.2 kvar 400 V 60 Hz, 1.1 kvar 415 V 50 Hz, 1.3 kvar 415 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.5 x In |
| Rated voltage | 380…415 V AC 50/60 Hz |
| Dielectric losses | < 0.2 W/kvar |
|---|---|
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s |
| Inrush current | 200 x In |
| Maximum switching operation per year | 5000 |
| Service life in hours | 100000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, |
| Impregnation material | Non-PCB soft PUR resin, Biodegradable |
| Type of installation | Indoor installation |
| Connections - terminals | Double Faston terminal |
| Mounting mode | Vertical |
| Diameter | 63 mm |
| Height | 140 mm |
| Net weight | 0.5 kg |
| Standards | IEC 60831-1, IEC 60831-2 |
|---|---|
| IP degree of protection | IP20 |
| Operating altitude | 2000 m |
| Temperature class | D |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95 % |
| Part number | BLRCS010A012B40 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 24 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 28.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 645.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.685 kg |
| Shipping weight | 0.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
