Part number
BLRCH400A480B52
$183.43 On request Dispatch — · From TürkiyeGet a Quote
PowerLogic

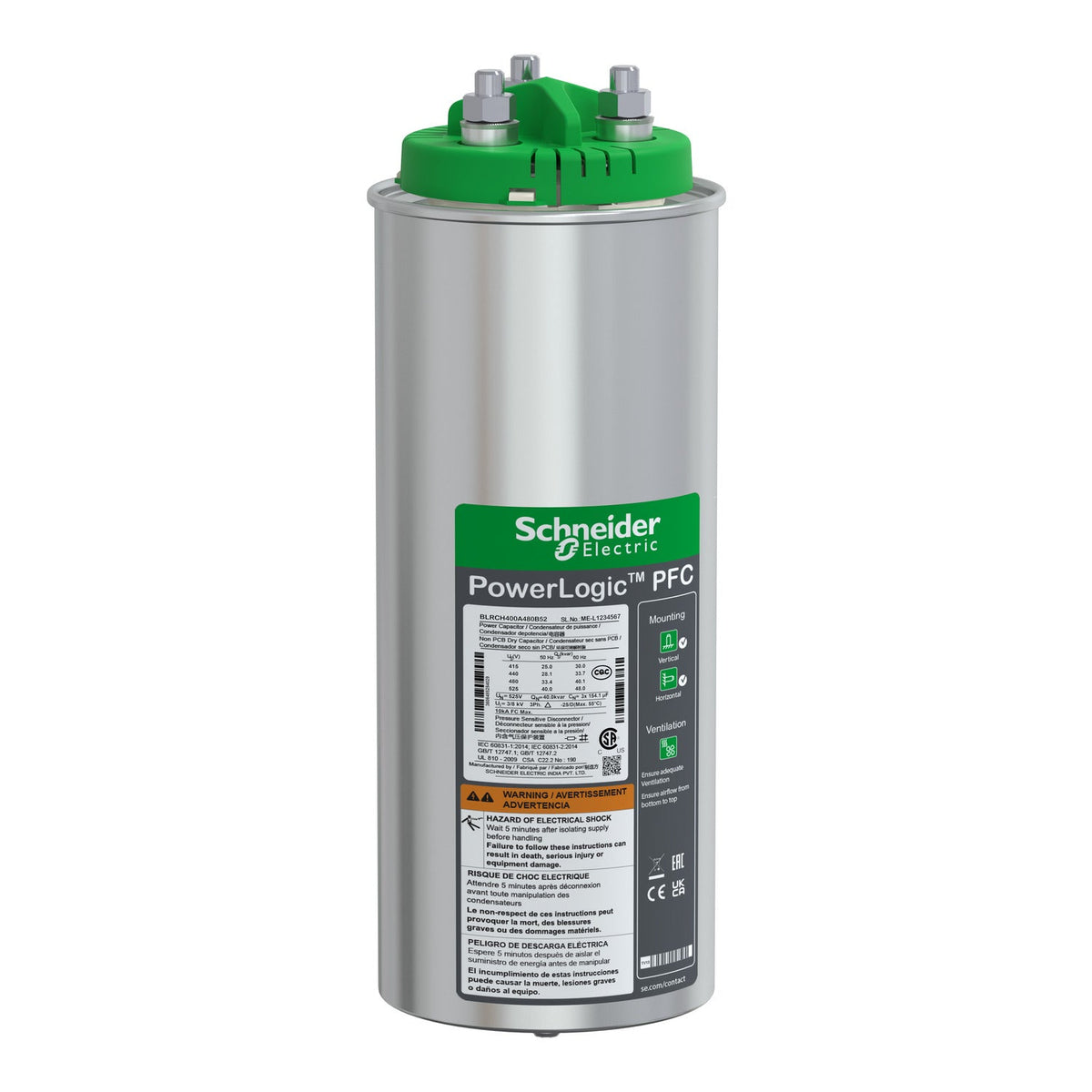

Schneider Electric BLRCH400A480B52 VarPlus Can HDuty 40/48 kvar 525 V Power Factor Correction Capacitor

VarPlus Can HDuty PFC capacitor, 40 kvar at 525 V, 50/60 Hz. IP00, stud terminals.

Rated operational voltage
525 V AC
Description

About the BLRCH400A480B52

The Schneider Electric BLRCH400A480B52 is a VarPlus Can HDuty power factor correction capacitor rated 40 kvar at 525 V, 50 Hz (48 kvar at 60 Hz). Its heavy-duty dielectric tolerates network harmonic content up to 20 % and a continuous overcurrent capacity of 1.8 x In, so it keeps correcting power factor on busbars that also feed variable-speed drives, rectifiers and other harmonic-generating loads without overheating.

Certifications & Standards

  • IEC 60831-1
  • IEC 60831-2

Selection Notes

At 40 kvar and 525 V, the BLRCH400A480B52 is sized for incomers or filter branches with documented harmonic distortion up to 20% - its 1.8 x In continuous overcurrent capacity and 250 x In inrush rating are built in for duty where variable-speed drives or rectifiers already share the busbar. Pick a smaller HDuty step in the same 525 V family when correcting a lighter non-linear load, or a larger one as the reactive power demand grows. On network segments that stay under 10% harmonic content, the standard-duty EasyLogic range covers the same kvar steps at a lower continuous overcurrent rating.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 11

Range PowerLogic
Range of product PowerLogic
Product or component type Heavy duty capacitor
Product name PowerLogic PFC Capacitor
Network frequency 50/60 Hz
Series name HDuty
Network harmonic content <= 20 %
Electrical parameters 40 kvar 525 V 50 Hz, 48 kvar 525 V 60 Hz
Maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity 1.8 x In
Rated voltage 525 V AC 50/60 Hz

Complementary 15

Dielectric losses < 0.2 W/kvar
Power losses < 0.5 W/kVAr
Capacitance tolerance - 5 % to 10 %
Voltage test 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s
Inrush current 250 x In
Maximum switching operation per year 7000
Service life in hours 130000 h
Dielectric material Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)
Impregnation material Non-PCB dry PUR resin, Biodegradable
Type of installation Indoor installation
Connections - terminals Stud terminals
Mounting mode Upright/horizontal
Diameter 116 mm
Height 321 mm
Net weight 4.1 kg

Environment 6

Standards IEC 60831-1, IEC 60831-2
IP degree of protection IP00
Operating altitude 2000 m
Temperature class D
Ambient air temperature for operation -25…55 °C
Relative humidity 95 %
Show all 55 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number BLRCH400A480B52
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.500 cm
Package 1 Width 19.500 cm
Package 1 Length 39.000 cm
Package 1 Weight 4.130 kg
Unit Type of Package 2 S06
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 62.560 kg
Shipping weight 4.1 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BLRCH400A480B52

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60831-1
  • IEC 60831-2
Quick answers

Questions about the BLRCH400A480B52

Which supply voltage is BLRCH400A480B52 rated for?

The rated operational voltage of BLRCH400A480B52 is 525 V AC.

What is the HS code of BLRCH400A480B52 for customs?

The tariff (HS) code on file for BLRCH400A480B52 is 853210.

Where does BLRCH400A480B52 ship from, and how fast?

BLRCH400A480B52 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
