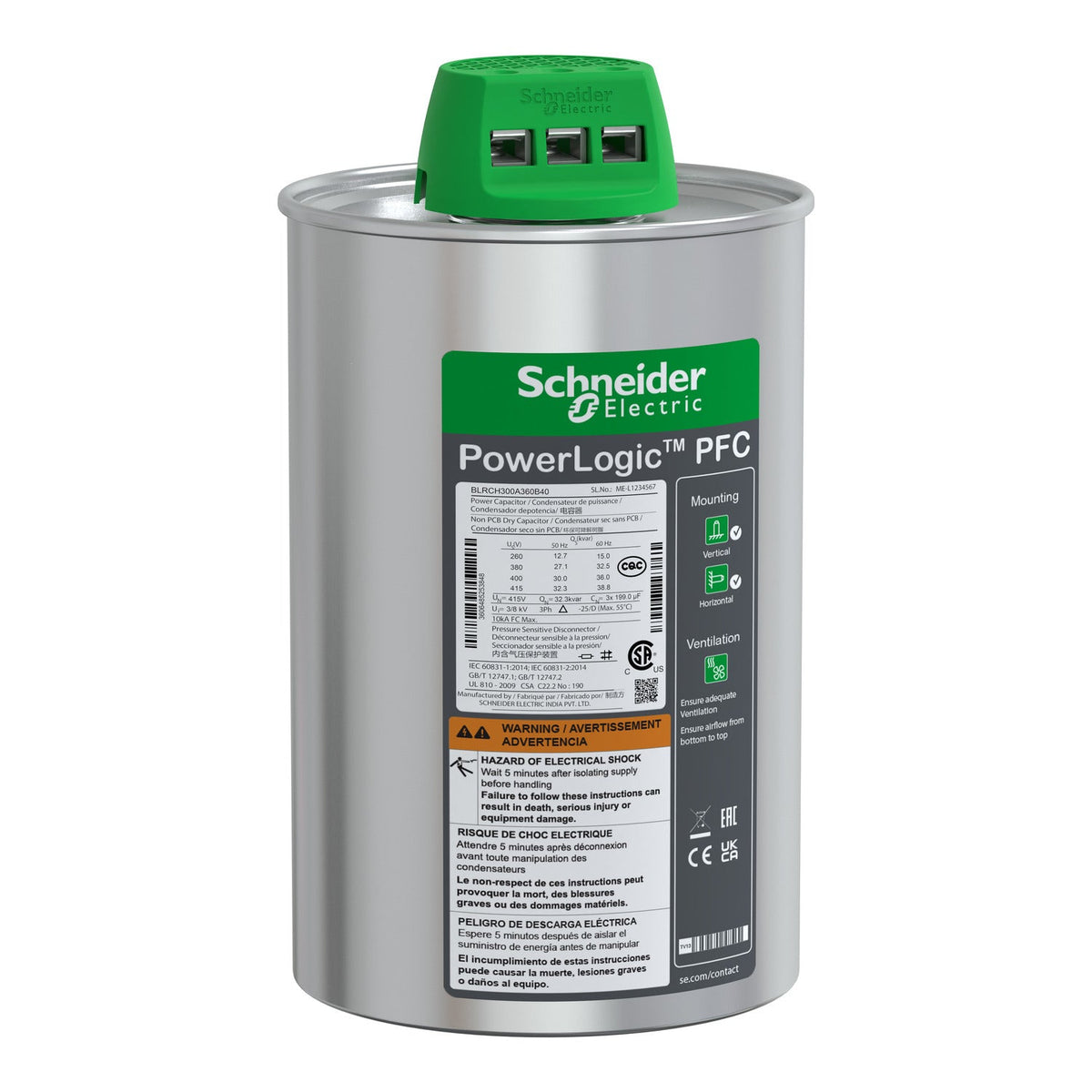

Schneider Electric BLRCH300A360B40 VarPlus Can HDuty 30 kvar 400 V 50 Hz Power Factor Correction Capacitor

The Schneider Electric BLRCH300A360B40 is a VarPlus Can HDuty power factor correction capacitor rated 30 kvar at 400 V, 50 Hz (36 kvar at 60 Hz). Built with a metallized polypropylene film dielectric and a 1.8× In continuous overcurrent rating for networks with up to 20% harmonic content, it connects through a clamptite terminal in a 136 mm diameter, IP20 enclosure weighing 3.2 kg.

Technical Specifications

Certifications & Standards

• IEC 60831-1
• IEC 60831-2

Selection Notes

HDuty (heavy duty) construction gives the BLRCH300A360B40 a 1.8× In continuous overcurrent capacity, so it stays within rating on networks where variable-speed drives or rectifiers push harmonic distortion toward the 20% ceiling — a standard-duty capacitor sized only for the fundamental would overheat under the same load. At 400 V the unit delivers 30 kvar on a 50 Hz network or 36 kvar on a 60 Hz network from the same can, useful when the same bank design serves both European and North American sites. Pick this variant to match bus voltage directly rather than relying on a transformer tap; the 136 mm x 242 mm can and clamptite terminal keep the footprint compact for panel-mounted power factor correction banks.
