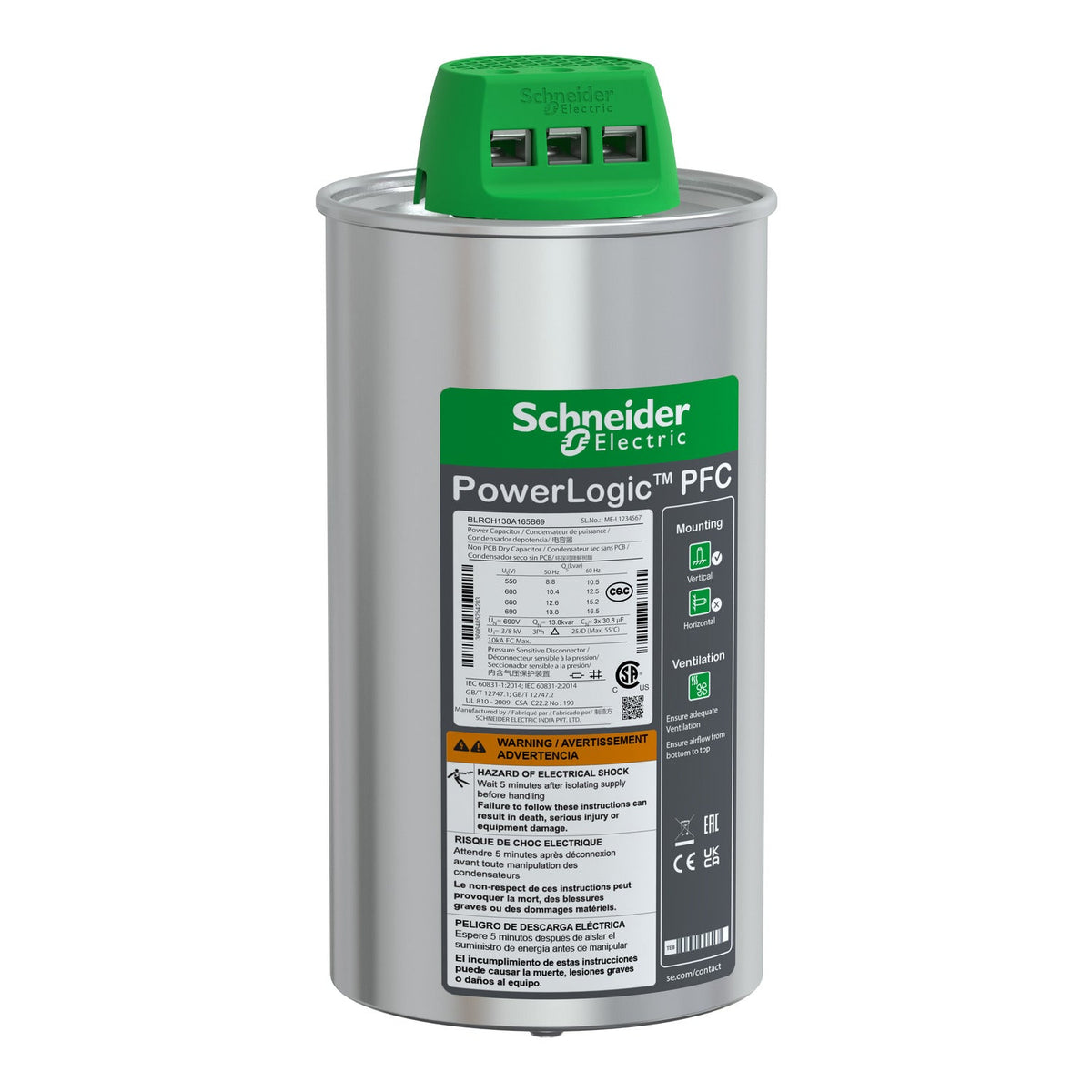

The Schneider Electric BLRCH138A165B69 is a VarPlus Can HDuty power factor correction capacitor rated 13.8 kvar at 690 V, 50 Hz (16.5 kvar at 60 Hz), built for networks with up to 20% harmonic content where the circulating harmonic current requires an increased rated current capacitor rather than a standard-duty unit. Fastening is by clamptite terminal.
Match the BLRCH138A165B69 to the switchboard's nominal voltage (690 V) and the reactive power step the correction bank needs -- 13.8 kvar at 50 Hz, 16.5 kvar at 60 Hz. At 13.8/16.5 kvar on a 690 V board it uses the larger 116 mm can (2.5 kg); for the same 690 V voltage at the lower 12.5/15 kvar step, the smaller 90 mm BLRCH125A150B69 applies instead. The 1.8 x In continuous overcurrent capacity and <=20% permissible network harmonic content make HDuty construction the right choice where variable-speed drives or other non-linear loads circulate harmonic current; on a clean network a VarPlus Can SDuty unit would be the lower-cost alternative.
| Range | PowerLogic |
|---|---|
| Range of Product | PowerLogic |
| Product or Component Type | Heavy duty capacitor |
| Product name | PowerLogic PFC Capacitor |
| Network Frequency | 50/60 Hz |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 13.8 kvar 690 V 50 Hz, 16.5 kvar 690 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un 8 hours over 24 hours) |
| continuous overcurrent capacity | 1.8 x In |
| Rated voltage | 690 V AC 50/60 Hz |
| Dielectric losses | < 0.2 W/kvar |
|---|---|
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals 10 s, <= 660 V - 3 kV AC between terminal and container 10 s, >= 660 V - 6 kV AC between terminal and container 10 s |
| Inrush current | 250 x In |
| Maximum switching operation per year | 7000 |
| Service life in hours | 130000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Impregnation material | Non-PCB dry PUR resin, Biodegradable |
| Type of Installation | Indoor installation |
| Connections - terminals | ClampTite terminal |
| Mounting Mode | Upright/horizontal |
| Diameter | 4.6 in (116 mm) |
| Height | 9.5 in (242 mm) |
| Net Weight | 5.5 lb(US) (2.5 kg) |
| Standards | IEC 60831-1, IEC 60831-2 |
|---|---|
| IP degree of protection | IP20 |
| Operating altitude | 6561.68 ft (2000 m) |
| Temperature class | D |
| Ambient air temperature for operation | -13…131 °F (-25…55 °C) |
| Relative humidity | 95 % |
| Part number | BLRCH138A165B69 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485254203 |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 7.480 in (19.000 cm) |
| Package 1 Width | 7.480 in (19.000 cm) |
| Package 1 Length | 12.402 in (31.500 cm) |
| Package weight(Lbs) | 6.462 lb(US) (2.931 kg) |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 29.528 in (75.000 cm) |
| Package 2 Width | 23.622 in (60.000 cm) |
| Package 2 Length | 31.496 in (80.000 cm) |
| Package 2 Weight | 123.382 lb(US) (55.965 kg) |
| Shipping weight | 2.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of BLRCH138A165B69 is 690 V AC.
The tariff (HS) code on file for BLRCH138A165B69 is 853210.
The EAN (GTIN) of BLRCH138A165B69 is 3606485254203.
BLRCH138A165B69 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
