Part number
BLRCH125A150B52
$103.73 On request Dispatch — · From TürkiyeGet a Quote
PowerLogic

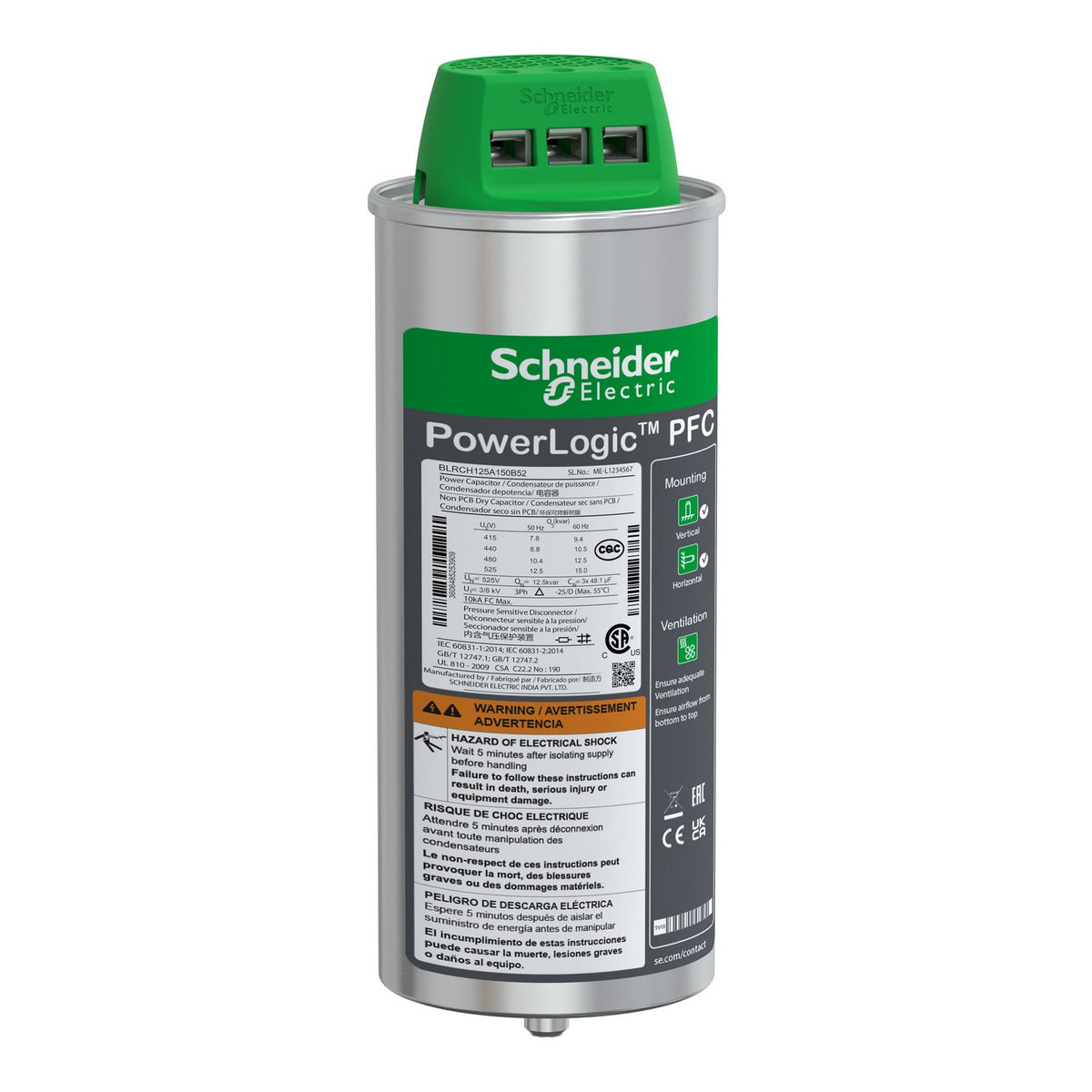

Schneider Electric BLRCH125A150B52 VarPlus Can HDuty 12.5/15 kvar 525 V Power Factor Correction Capacitor

VarPlus Can HDuty power factor correction capacitor, 12.5 kvar, 525 V, 50/60 Hz.

Rated operational voltage
525 V AC
Description

About the BLRCH125A150B52

The Schneider Electric BLRCH125A150B52 is a VarPlus Can HDuty power factor correction capacitor rated 12.5 kvar at 525 V, 50 Hz (15 kvar at 60 Hz), built for networks with up to 20% harmonic content where the circulating harmonic current requires an increased rated current capacitor rather than a standard-duty unit. Fastening is by clamptite terminal.

Certifications & Standards

  • IEC 60831-1
  • IEC 60831-2

Selection Notes

Match the BLRCH125A150B52 to the switchboard's nominal voltage (525 V) and the reactive power step the correction bank needs -- 12.5 kvar at 50 Hz, 15 kvar at 60 Hz. It is the 12.5/15 kvar step for 525 V boards, in the same 90 mm can as the 400/440/480 V variants -- only the 106A127 model at 10.6/12.7 kvar also covers 525 V. The 1.8 x In continuous overcurrent capacity and <=20% permissible network harmonic content make HDuty construction the right choice where variable-speed drives or other non-linear loads circulate harmonic current; on a clean network a VarPlus Can SDuty unit would be the lower-cost alternative.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 11

Range PowerLogic
Range of product PowerLogic
Product or component type Heavy duty capacitor
Product name PowerLogic PFC Capacitor
Network frequency 50/60 Hz
Series name HDuty
Network harmonic content <= 20 %
Electrical parameters 12.5 kvar 525 V 50 Hz, 15 kvar 525 V 60 Hz
Maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity 1.8 x In
Rated voltage 525 V AC 50/60 Hz

Complementary 15

Dielectric losses < 0.2 W/kvar
Power losses < 0.5 W/kVAr
Capacitance tolerance - 5 % to 10 %
Voltage test 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s
Inrush current 250 x In
Maximum switching operation per year 7000
Service life in hours 130000 h
Dielectric material Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)
Impregnation material Non-PCB dry PUR resin, Biodegradable
Type of installation Indoor installation
Connections - terminals ClampTite terminal
Mounting mode Upright/horizontal
Diameter 90 mm
Height 242 mm
Net weight 1.6 kg

Environment 6

Standards IEC 60831-1, IEC 60831-2
IP degree of protection IP20
Operating altitude 2000 m
Temperature class D
Ambient air temperature for operation -25…55 °C
Relative humidity 95 %
Show all 55 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number BLRCH125A150B52
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 24

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.600 cm
Package 1 Width 12.400 cm
Package 1 Length 28.500 cm
Package 1 Weight 1.778 kg
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.400 kg
Shipping weight 1.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BLRCH125A150B52

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60831-1
  • IEC 60831-2
Quick answers

Questions about the BLRCH125A150B52

Which supply voltage is BLRCH125A150B52 rated for?

The rated operational voltage of BLRCH125A150B52 is 525 V AC.

What is the HS code of BLRCH125A150B52 for customs?

The tariff (HS) code on file for BLRCH125A150B52 is 853210.

Where does BLRCH125A150B52 ship from, and how fast?

BLRCH125A150B52 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
