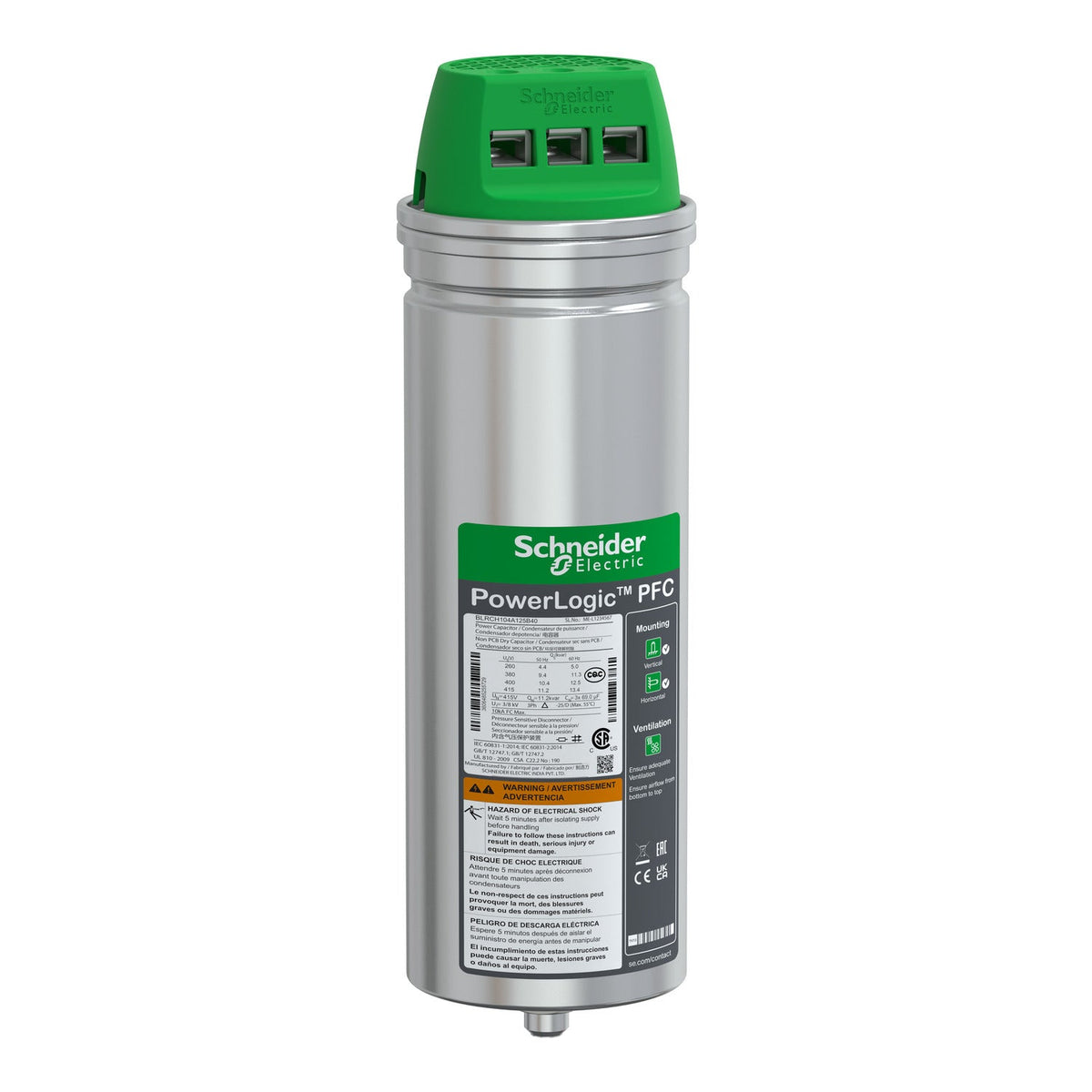

The Schneider Electric BLRCH104A125B40 is a VarPlus Can HDuty power factor correction capacitor rated 10.4 kvar at 400 V, 50 Hz (12.5 kvar at 60 Hz), built for networks with up to 20% harmonic content where the circulating harmonic current requires an increased rated current capacitor rather than a standard-duty unit. Fastening is by clamptite terminal.
Match the BLRCH104A125B40 to the switchboard's nominal voltage (400 V) and the reactive power step the correction bank needs -- 10.4 kvar at 50 Hz, 12.5 kvar at 60 Hz. Its 380-415 V rated-voltage band covers 400 V boards and nearby 380/415 V variants with one SKU, at the same 75 mm can size as the 440 V BLRCH100A120B44. The 1.8 x In continuous overcurrent capacity and <=20% permissible network harmonic content make HDuty construction the right choice where variable-speed drives or other non-linear loads circulate harmonic current; on a clean network a VarPlus Can SDuty unit would be the lower-cost alternative.
| Range | PowerLogic |
|---|---|
| Range of product | PowerLogic |
| Product or component type | Heavy duty capacitor |
| Product name | PowerLogic PFC Capacitor |
| Network frequency | 50/60 Hz |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 9.4 kvar 380 V 50 Hz, 11.3 kvar 380 V 60 Hz, 10.4 kvar 400 V 50 Hz, 12.5 kvar 400 V 60 Hz, 11.2 kvar 415 V 50 Hz, 13.5 kvar 415 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.8 x In |
| Rated voltage | 380…415 V AC 50/60 Hz |
| Dielectric losses | < 0.2 W/kvar |
|---|---|
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s |
| Inrush current | 250 x In |
| Maximum switching operation per year | 7000 |
| Service life in hours | 130000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Impregnation material | Non-PCB dry PUR resin, Biodegradable |
| Type of installation | Indoor installation |
| Connections - terminals | ClampTite terminal |
| Mounting mode | Upright/horizontal |
| Diameter | 75 mm |
| Height | 233 mm |
| Net weight | 1.2 kg |
| Standards | IEC 60831-1, IEC 60831-2 |
|---|---|
| IP degree of protection | IP20 |
| Operating altitude | 2000 m |
| Temperature class | D |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95 % |
| Part number | BLRCH104A125B40 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.500 cm |
| Package 1 Width | 12.400 cm |
| Package 1 Length | 28.500 cm |
| Package 1 Weight | 1.323 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.607 kg |
| Shipping weight | 1.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
