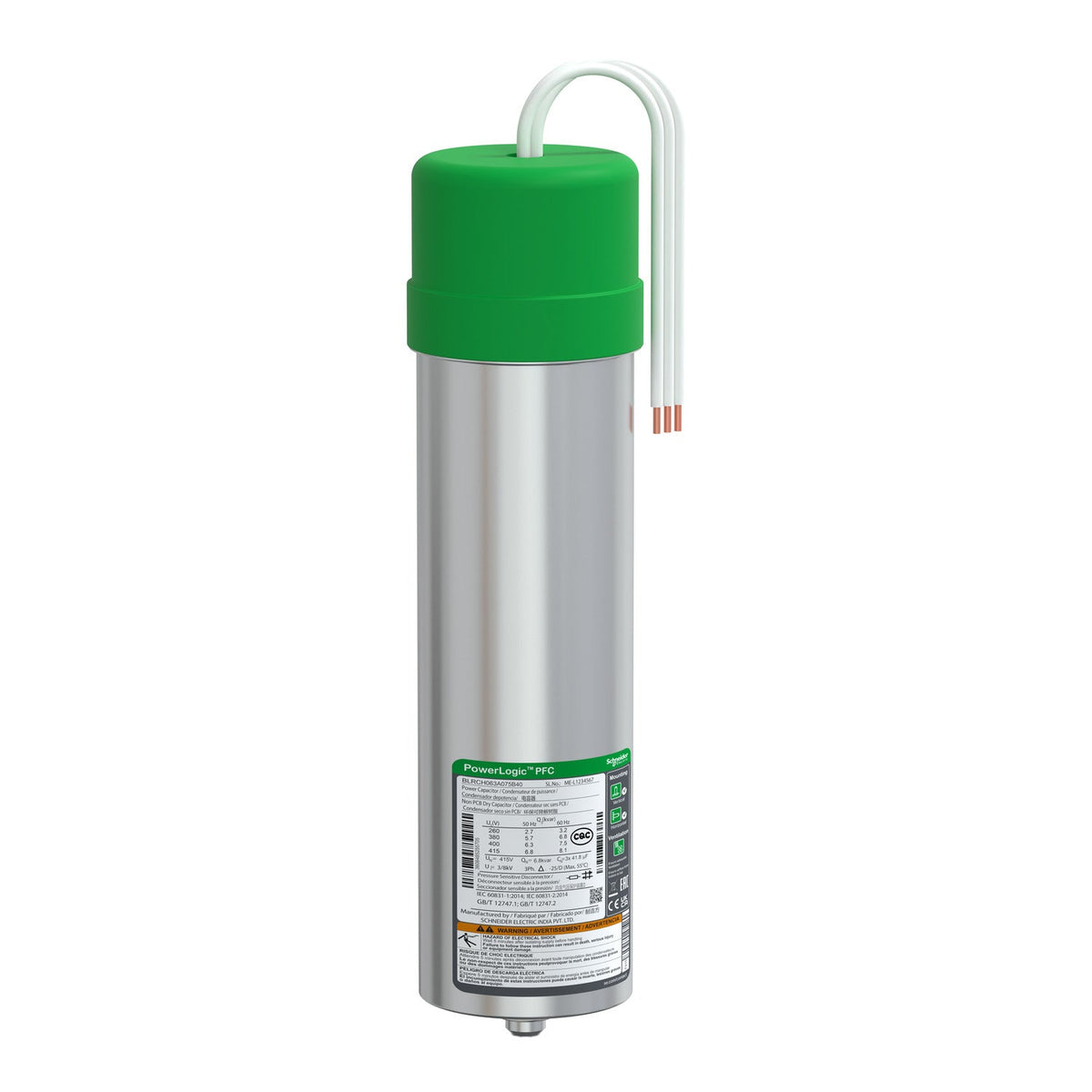

The Schneider Electric BLRCH063A075B40 is a VarPlus Can HDuty power factor correction capacitor rated 6.3 kvar at 400 V, 50 Hz (7.5 kvar at 60 Hz), built for networks with up to 20% harmonic content where the circulating harmonic current requires an increased rated current capacitor rather than a standard-duty unit. Fastening is by double faston terminal.
Match the BLRCH063A075B40 to the switchboard's nominal voltage (400 V) and the reactive power step the correction bank needs -- 6.3 kvar at 50 Hz, 7.5 kvar at 60 Hz. It shares the same 63 mm can as the 5/6 kvar BLRCH050A060B40, so stepping up to 6.3/7.5 kvar on a 400 V board adds reactive power without changing the enclosure footprint. The 1.8 x In continuous overcurrent capacity and <=20% permissible network harmonic content make HDuty construction the right choice where variable-speed drives or other non-linear loads circulate harmonic current; on a clean network a VarPlus Can SDuty unit would be the lower-cost alternative.
| Range | PowerLogic |
|---|---|
| Range of product | PowerLogic |
| Product or component type | Heavy duty capacitor |
| Product name | PowerLogic PFC Capacitor |
| Network frequency | 50/60 Hz |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 5.7 kvar 380 V 50 Hz, 6.8 kvar 380 V 60 Hz, 6.3 kvar 400 V 50 Hz, 7.5 kvar 400 V 60 Hz, 6.8 kvar 415 V 50 Hz, 8.1 kvar 415 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.8 x In |
| Rated voltage | 380…415 V AC 50/60 Hz |
| Dielectric losses | < 0.2 W/kvar |
|---|---|
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, >= 660 V - 6 kV AC between terminal and container for 10 s |
| Inrush current | 250 x In |
| Maximum switching operation per year | 7000 |
| Service life in hours | 130000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Impregnation material | Non-PCB dry PUR resin, Biodegradable |
| Type of installation | Indoor installation |
| Connections - terminals | Double Faston terminal |
| Mounting mode | Upright/horizontal |
| Diameter | 63 mm |
| Height | 245 mm |
| Net weight | 0.9 kg |
| Standards | IEC 60831-2, IEC 60831-1 |
|---|---|
| IP degree of protection | IP20 |
| Operating altitude | 2000 m |
| Temperature class | D |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95 % |
| Part number | BLRCH063A075B40 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.500 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 28.500 cm |
| Package 1 Weight | 1.056 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 16.988 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 77.952 kg |
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
