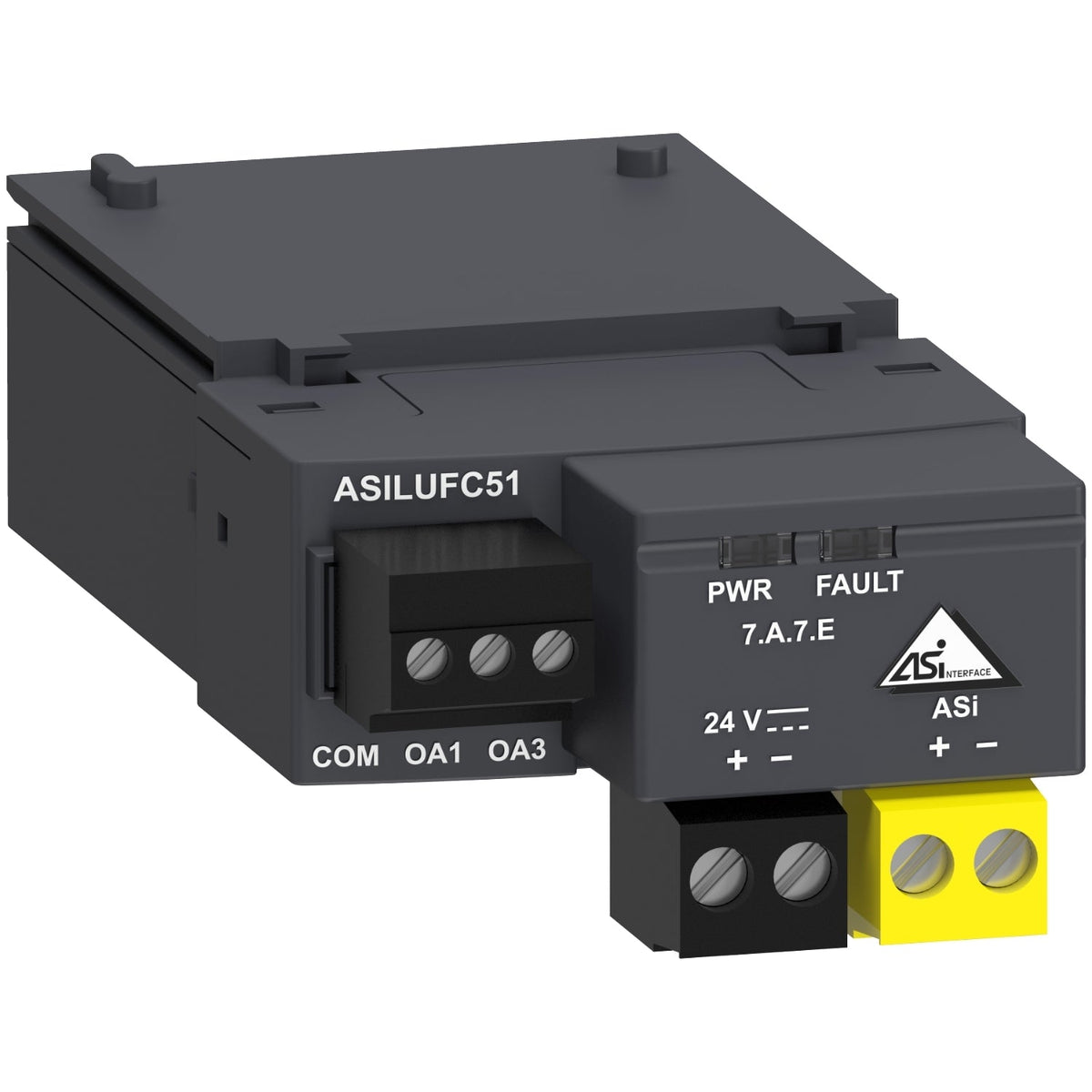

The Schneider Electric ASILUFC51 is a TeSys U communication module that plugs into LUB non-reversing and LU2B reversing power bases equipped with a BL-type 24 V DC control unit, linking the starter-controller to an AS-Interface network of up to 62 slaves. It provides a yellow AS-i bus connector, a black 24 V DC supply connector and two front-panel LEDs for power and fault status.
Fit the ASILUFC51 when a TeSys U starter-controller needs to join an AS-Interface segment instead of hardwired discrete control: its 2 dedicated outputs drive the coil of a LUB or LU2B power base directly, and the 62-slave addressing range covers a full AS-i branch without a separate fieldbus gateway per starter. It requires a BL-type (24 V DC) LUC control unit on the same base — it is not compatible with AC-coil control units.
| Range | TeSys |
|---|---|
| Device short name | ASILUL |
| Product or Component Type | Communication module |
| Product Compatibility | LUCB, LUCM, LUCD, LUCA, LUCL, LUCC |
| Device Application | Communication |
| Range compatibility | TeSys TeSys U LUB non reversing power base, TeSys TeSys U LU2B reversing power base |
| main function available | Communication module |
|---|---|
| Mounting Mode | Plug-in |
| Mounting Location | Front side |
| Physical interface | 7.A.7.E |
| Bus type | AS-Interface |
| Addressing | 62 slaves |
| Return time | 10 ms |
| Current consumption | 200 mA 24 V output, 25 mA normal operation, 30 mA fault condition |
| Number of outputs | 2 dedicated to starter-controller coil operation |
| Local signalling | 2 LEDs front panel |
| Connection pitch | 0.15 in (3.81 mm) output, 0.20 in (5.08 mm) input |
| Connections - terminals | Input screw clamp terminals 1 0.0003…0.002 in² (0.2…1.5 mm²)flexible without cable end, Input screw clamp terminals 1 0.0003…0.002 in² (0.2…1.5 mm²)rigid without cable end, Input screw clamp terminals 1 0.0004…0.002 in² (0.25…1.5 mm²)flexible with cable end, Input screw clamp terminals 2 0.0003…0.002 in² (0.2…1 mm²)flexible without cable end, Input screw clamp terminals 2 0.0003…0.002 in² (0.2…1 mm²)rigid without cable end, Input screw clamp terminals 2 0.0004…0.002 in² (0.25…1 mm²)flexible with cable end, Input screw clamp terminals 2 0.0008…0.002 in² (0.5…1 mm²)flexible with cable end, Output screw clamp terminals 1 0.0002…0.002 in² (0.14…1 mm²)flexible without cable end, Output screw clamp terminals 1 0.0002…0.002 in² (0.14…1 mm²)rigid without cable end, Output screw clamp terminals 1 0.0004…0.0008 in² (0.25…0.5 mm²)flexible with cable end, Output screw clamp terminals 1 0.0004…0.002 in² (0.25…1 mm²)flexible with cable end, Output screw clamp terminals 2 0.0002…0.0008 in² (0.14…0.5 mm²)rigid without cable end, Output screw clamp terminals 2 0.0002…0.001 in² (0.14…0.75 mm²)flexible without cable end, Output screw clamp terminals 2 0.0004…0.0005 in² (0.25…0.34 mm²)flexible with cable end, Output screw clamp terminals 2 0.0008 in² (0.5 mm²)flexible with cable end |
| Tightening torque | Input: 4.4…5.3 lbf.in (0.5…0.6 N.m)0.1 in (3.5 mm), Output: 1.8…2.21 lbf.in (0.2…0.25 N.m)0.10 in (2.5 mm) |
| Product Certifications | AS-Interface V2.1 No 52303 |
|---|---|
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Part number | ASILUFC51 |
|---|---|
| Type designation | ASILUL |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110745092 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.059 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for ASILUL is 853650.
The EAN (GTIN) of ASILUL is 3389110745092.
ASILUL ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
