Modicon Power SupplySchneider Electric ABLS1A24200 Modicon 24V DC 20A 1-Phase 100-240V AC Regulated Power Supply
24 V DC / 20 A regulated power supply, 100-240 V AC single-phase input, DIN-rail, IP20.
Description
About the ABLS1A24200
About the ABLS1A24200

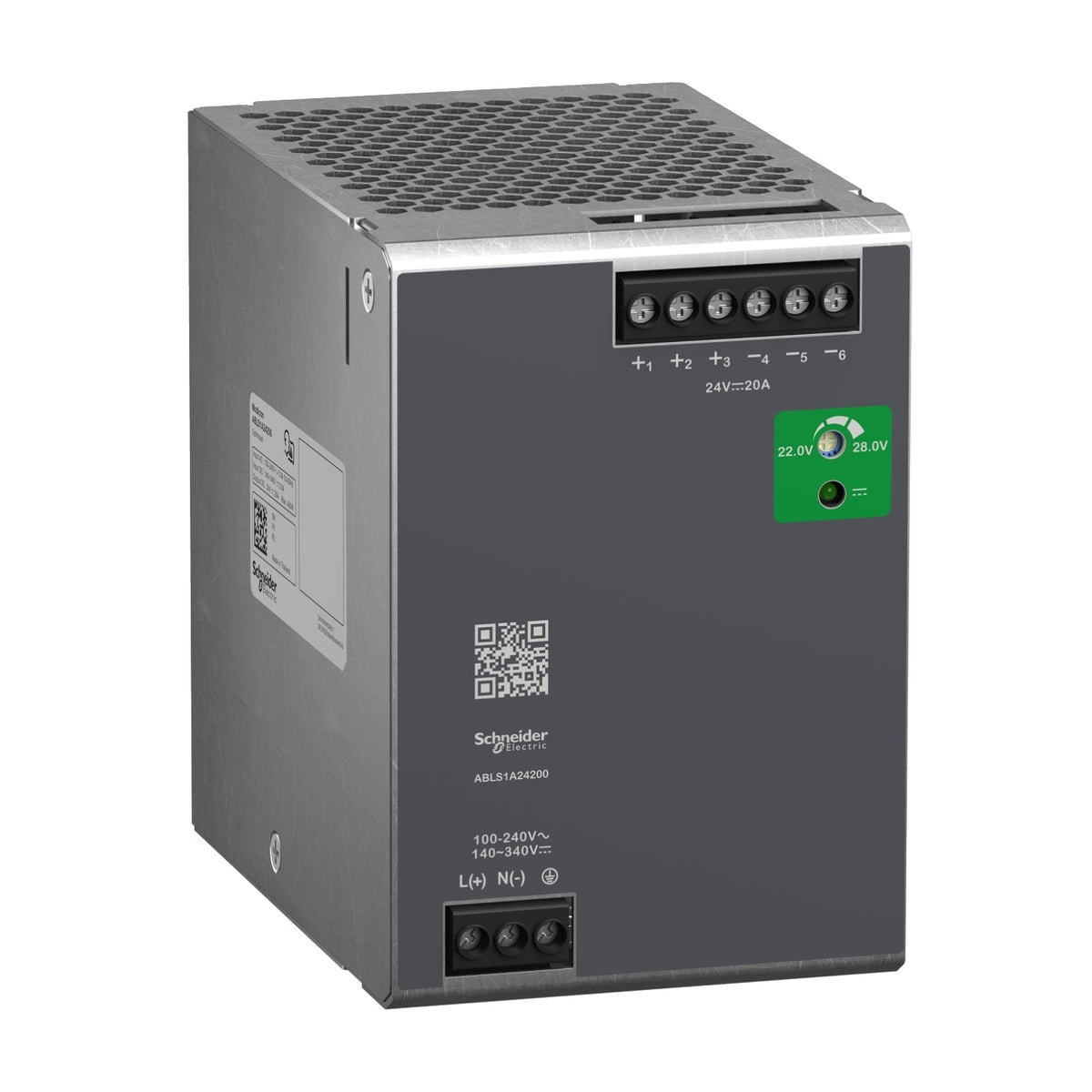

The Schneider Electric ABLS1A24200 is a regulated switch-mode DC power supply from the Modicon Power Supply range, converting a 100-240 V AC single-phase input into a regulated 24 V DC output at up to 20 A (480 W). Housed in an aluminum book-style enclosure for DIN-rail mounting, it protects against overload and short-circuit with automatic restart once the fault clears.
Certifications & Standards
- CE
- cUL Listed
- cUL Recognized
- RCM
- CB Scheme
- EAC
- KC
- IEC 62368-1
- EN/IEC 61204-3
Selection Notes
At 20 A / 480 W, the ABLS1A24200 is the largest single-phase 24 V unit in this range, sized for a panel with multiple PLC racks or a large combined I/O and relay load on one 24 V DC bus rather than paralleling smaller supplies. Its 45-90 A inrush current calls for an upstream breaker sized accordingly - 13 A C-curve or 16 A B-curve, per the manufacturer's recommendation.
Specification
Full specification
Main 9
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure Material | Aluminum |
| Nominal input voltage | 100...240 V AC single phase, 100...240 V AC phase to phase, 140...340 V DC |
| Rated power in W | 480 W |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
Complementary 30
| Efficiency at full load | 85...264 V AC without temperature derating, 120...375 V DC without temperature derating |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN, TT, IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 10 A, External protection (recommended) 20 A Curve C, External protection (recommended) 16 A Curve B, External protection (recommended) 13 A Curve C |
| Inrush current | 45.0 A 115 V, 90.0 A 230 V |
| Power factor | 0.95 at 115 V AC, 0.95 at 230 V AC |
| Efficiency | 85 % 115 V AC, 88 % 230 V AC |
| Output voltage adjustment | 22...28 V |
| Power dissipation in W | 60 W |
| Current consumption | < 5.4 A 115 V AC, < 2.7 A 230 V AC, < 5 A 140 V DC |
| Turn-on time | < 1.5 s |
| Holding time | > 20 ms 115 V AC, > 20 ms 230 V AC |
| Startup with capacitive loads | 8000 µF |
| Residual ripple | < 120 mV |
| Meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset, Against over temperature, protection technology: manual reset, Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.75...4 mm², 20 AWG...12 AWG) without wire end ferrule output, Screw connection 0.75...4 mm², 20 AWG...14 AWG) with wire end ferrule output, Screw connection 0.75...4 mm², 18 AWG...12 AWG) without wire end ferrule input, Screw connection 0.75...4 mm², 18 AWG...12 AWG) with wire end ferrule input |
| Line and load regulation | < 0.5 % network 0 to 100 % load at 77 °F (25 °C), < 1 % network full voltage range in line at 77 °F (25 °C) |
| Status LED | 1 LED (Green) output voltage |
| Depth | 5.06 in (128.5 mm) |
| Height | 4.9 in (123.6 mm) |
| Width | 3.4 in (85.5 mm) |
| Net Weight | 2.76 lb(US) (1.25 kg) |
| Output coupling | Parallel, Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, Double-profile DIN rail |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
Environment 11
| Standards | IEC 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201 |
|---|---|
| Product certifications | CE, CUL Listed, CUL Recognized, RCM, CB Scheme, EAC, KC |
| Operating altitude | < 5000 m |
| Shock resistance | 150 m/s² 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -4…104 °F (-20…40 °C) without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -4…122 °F (-20…50 °C) without derating mounting position A 230 V AC < 6561.68 ft (2000 m), 104…158 °F (40…70 °C) with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.68 ft (2000 m), 122…158 °F (50…70 °C) with current derating of 2.5 % per °C mounting position A 230 V AC < 6561.68 ft (2000 m) |
| Electrical shock protection class | Class I |
| Pollution degree | 2 |
| Vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, Immunity to voltage dips conforming to IEC 61000-4-11, Disturbing field emission conforming to EN 55016-2-3, Limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1 |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3, Radiated emissions IEC 61000-6-4 |
Show all 63 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABLS1A24200 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481500267 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 1.25 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ABLS1A24200
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- EAC
- CB Scheme
- IEC 62368-1
- EN/IEC 61010-1
- EN 61010-2-201
- EN/IEC 61204-3
- IEC 61000-6-1
- IEC 61000-6-2
- IEC 61000-6-3
- IEC 61000-6-4
- IEC 61000-3-2
- EN 61000-3-3
- UL 62368-1
- UL 61010-1
Quick answers
Questions about the ABLS1A24200
What is the rated current of ABLS1A24200?
The rated current of ABLS1A24200 is 20 A.
Which supply voltage is ABLS1A24200 rated for?
The rated operational voltage of ABLS1A24200 is 100–240 V AC.
What is the HS code of ABLS1A24200 for customs?
The tariff (HS) code on file for ABLS1A24200 is 850440.
What is the EAN of ABLS1A24200?
The EAN (GTIN) of ABLS1A24200 is 3606481500267.
Where does ABLS1A24200 ship from, and how fast?
ABLS1A24200 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
