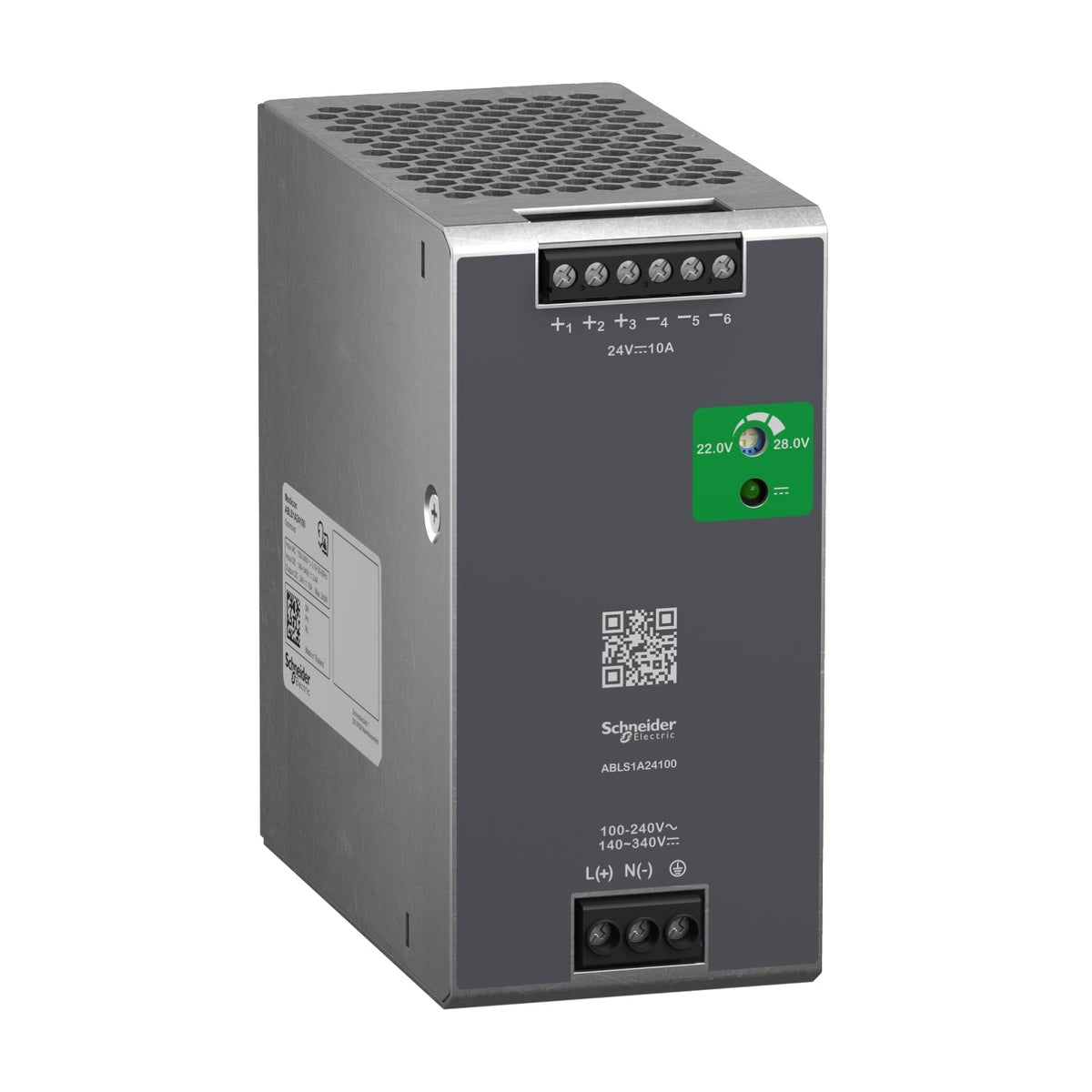

Modicon Power SupplySchneider Electric ABLS1A24100 Modicon 24V DC 10A 1-Phase 100-240V AC Regulated Power Supply
24 V DC / 10 A regulated power supply, 100-240 V AC single-phase input, DIN-rail, IP20.
Description
About the ABLS1A24100
About the ABLS1A24100
The Schneider Electric ABLS1A24100 is a regulated switch-mode DC power supply from the Modicon Power Supply range, converting a 100-240 V AC single-phase input into a regulated 24 V DC output at up to 10 A (240 W). Housed in an aluminum book-style enclosure for DIN-rail mounting, it protects against overload and short-circuit with automatic restart once the fault clears.
Certifications & Standards
- CE
- cUL Listed
- cUL Recognized
- RCM
- CB Scheme
- EAC
- KC
- IEC 62368-1
- EN/IEC 61204-3
- UL 508
- CSA C22.2 No. 107.1
Selection Notes
At 10 A / 240 W, the ABLS1A24100 is sized for a 24 V DC rail carrying a larger I/O count or several motor-control relay and contactor coils rather than a single small controller. Its 0.95 power factor at both 115 V and 230 V input keeps line current draw proportionate to load, and the 22-28 V trim range compensates for voltage drop on longer DIN-rail runs.
Specification
Full specification
Main 9
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure Material | Aluminum |
| Nominal input voltage | 100...240 V AC single phase, 100...240 V AC phase to phase, 140...340 V DC |
| Rated power in W | 240 W |
| Output voltage | 24 V DC |
| Power supply output current | 10 A |
Complementary 30
| Efficiency at full load | 85...264 V AC without temperature derating, 120...375 V DC without temperature derating |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN, TT, IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 6.3 A, External protection (recommended) 20 A Curve B, External protection (recommended) 20 A Curve C, External protection (recommended) 6 A Curve B, External protection (recommended) 6 A Curve C |
| Inrush current | 30.0 A 115 V, 60.0 A 230 V |
| Power factor | 0.95 at 115 V AC, 0.95 at 230 V AC |
| Efficiency | 85 % 115 V AC, 88 % 230 V AC |
| Output voltage adjustment | 22...28 V |
| Power dissipation in W | 36 W |
| Current consumption | < 2.8 A 115 V AC, < 1.4 A 230 V AC, < 2.4 A 140 V DC |
| Turn-on time | < 1 s |
| Holding time | > 20 ms 115 V AC, > 20 ms 230 V AC |
| Startup with capacitive loads | 8000 µF |
| Residual ripple | < 120 mV |
| Meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset, Against over temperature, protection technology: manual reset, Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.5...4 mm², 20 AWG...12 AWG) without wire end ferrule output, Screw connection 0.5...2.5 mm², 20 AWG...14 AWG) with wire end ferrule output, Screw connection 0.75...4 mm², 18 AWG...12 AWG) without wire end ferrule input, Screw connection 0.75...4 mm², 18 AWG...12 AWG) with wire end ferrule input |
| Line and load regulation | < 0.5 % network 0 to 100 % load at 77 °F (25 °C), < 1 % network full voltage range in line at 77 °F (25 °C) |
| Status LED | 1 LED (Green) output voltage |
| Depth | 4.6 in (117.6 mm) |
| Height | 4.9 in (123.6 mm) |
| Width | 2.4 in (60 mm) |
| Net Weight | 1.8 lb(US) (0.8 kg) |
| Output coupling | Parallel, Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, Double-profile DIN rail |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
Environment 11
| Standards | IEC 62368-1, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, UL 508, CSA C22.2 No. 107.1 |
|---|---|
| Product certifications | CE, CUL Listed, CUL Recognized, RCM, CB Scheme, EAC, KC |
| Operating altitude | < 5000 m |
| Shock resistance | 150 m/s² 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -4…104 °F (-20…40 °C) without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -4…122 °F (-20…50 °C) without derating mounting position A 230 V AC < 6561.68 ft (2000 m), 104…158 °F (40…70 °C) with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.68 ft (2000 m), 122…158 °F (50…70 °C) with current derating of 2.5 % per °C mounting position A 230 V AC < 6561.68 ft (2000 m) |
| Electrical shock protection class | Class I |
| Pollution degree | 2 |
| Vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, Immunity to voltage dips conforming to IEC 61000-4-11, Disturbing field emission conforming to EN 55016-2-3, Limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1 |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3, Radiated emissions IEC 61000-6-4 |
Show all 63 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABLS1A24100 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481500250 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
