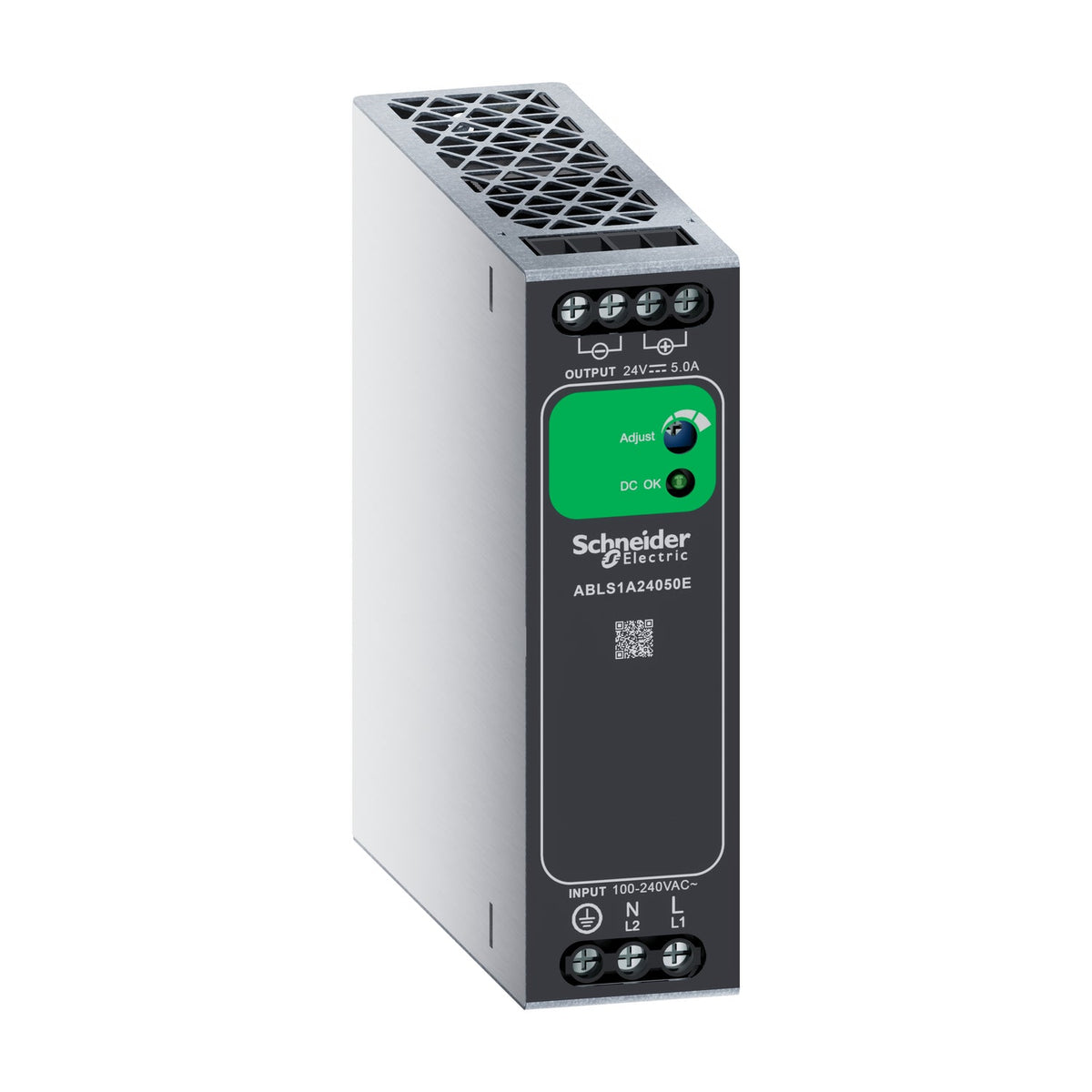

Modicon ABL2Schneider Electric ABLS1A24050E Modicon ABL2 24V DC 5A 1-Phase 100-240V AC Regulated Power Supply
24 V DC / 5 A regulated power supply, 100-240 V AC single-phase input, DIN-rail, IP20.
Description
About the ABLS1A24050E
About the ABLS1A24050E
The Schneider Electric ABLS1A24050E is a single-phase, DIN-rail mounted regulated switch-mode power supply from the Easy Modicon ABL2 range, delivering 24 V DC at up to 5 A (120 W) from a 100-240 V AC input. It is designed for general industrial loads such as small to mid-size PLCs, HMIs, sensors and I/O modules, with an output adjustment potentiometer for cable-drop compensation.
Certifications & Standards
- CE
- UL 508
- UKCA
- RoHS
- RoHS
- REACH
Selection Notes
The ABLS1A24050E matches the standard ABLS1A24050's 5 A / 120 W, 24 V DC output in the lighter Easy Modicon ABL2 enclosure, sized for the same PLC-plus-HMI-plus-I/O load where panel depth or cost is the deciding factor. The 21.6-27.6 V output window and 1.1-1.3x In overload threshold keep it within standard 24 V DC equipment tolerance. Four output terminals and a 100,000 h MTBF at 40 degC suit continuous panel duty with straightforward field wiring, and the 20 A / 35 A inrush current at 115 V / 230 V AC should be sized into the upstream branch circuit selection.
Specification
Full specification
Main 10
| Range of Product | Modicon ABL2 |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Rated power in W | 120 W |
| Main Input Voltage | 100...240 V AC single phase, 140...340 V DC |
| Output voltage | 24 V DC |
| Power supply output current | 5 A |
| Operating position | Vertical |
| Vibration resistance | 2 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Name of test | Radiated electromagnetic field conforming to EN 61000-4-3 level 3A, Electrostatic discharges conforming to EN 61000-4-2 level 3B, Electrical fast transients/bursts conforming to EN 61000-4-4 level 3B, Surge conforming to EN 61000-4-5 level 3B, Conducted conforming to EN 61000-4-6 level 3A, Emission conforming to EN 55032 |
Complementary 21
| Input voltage limits | 90...264 V AC, 127...370 V DC |
|---|---|
| Network Frequency | 47...63 Hz |
| Inrush current | 20 A at 115 V AC, 35 A at 230 V AC |
| Cos phi | 0.4…0.6 |
| Efficiency | 87 % |
| Current consumption | 1.34 A at 240 V, 2.38 A at 100 V |
| Input protection type | Integrated fuse (not interchangeable) |
| Output voltage limits | 21.6...27.6 V |
| Line and load regulation | +/- 1 % |
| Holding time | >= 12 ms at 115 V |
| Output protection type | Against overload, protection technology: 1.1...1.3 x In overload protection, Against overvoltage, protection technology: tripping if U between 29...33 V, Against short-circuits, protection technology: automatic reset, Thermal, protection technology: auto reset |
| Connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² 12 AWG, For input connection: screw type terminals, connection capacity: 2 x 4 mm² 12 AWG, For output connection: screw type terminals, connection capacity: 2 x 4 mm² 12 AWG |
| Marking | CE, UL |
| Operating altitude | 6561.68 ft (2000 m), 5000 m |
| Overvoltage category | II |
| Meantime between failure [MTBF] | 100000 h at 104 °F (40 °C) |
| Status LED | 1 LED (Green) output voltage |
| Width | 1.4 in (36 mm) |
| Height | 4.9 in (125 mm) |
| Depth | 4.4 in (113 mm) |
| Net Weight | 0.994 lb(US) (0.451 kg) |
Environment 9
| Product Certifications | CE, RoHS, RoHS (china), UKCA, UL 508, REACH |
|---|---|
| Environmental characteristic | Safety conforming to EN 62368-1, EMC conforming to BS EN/EN 61000-4-2/3/4/5/6/8/11, EMC conforming to EN 55032 |
| IP degree of protection | IP20 conforming to EN 62368-1 |
| Ambient air temperature for operation | 68…122 °F (20…50 °C) (without derating), 122…158 °F (50…70 °C) (with derating factor) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 10…95 % |
| Overvoltage category | Class I conforming to EN 62368-1 |
| Pollution degree | 2 |
| Dielectric strength | 2000 V between input and ground, 3000 V between input and output, 500 V between output and ground |
Show all 53 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABLS1A24050E |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606487460459 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.451 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
