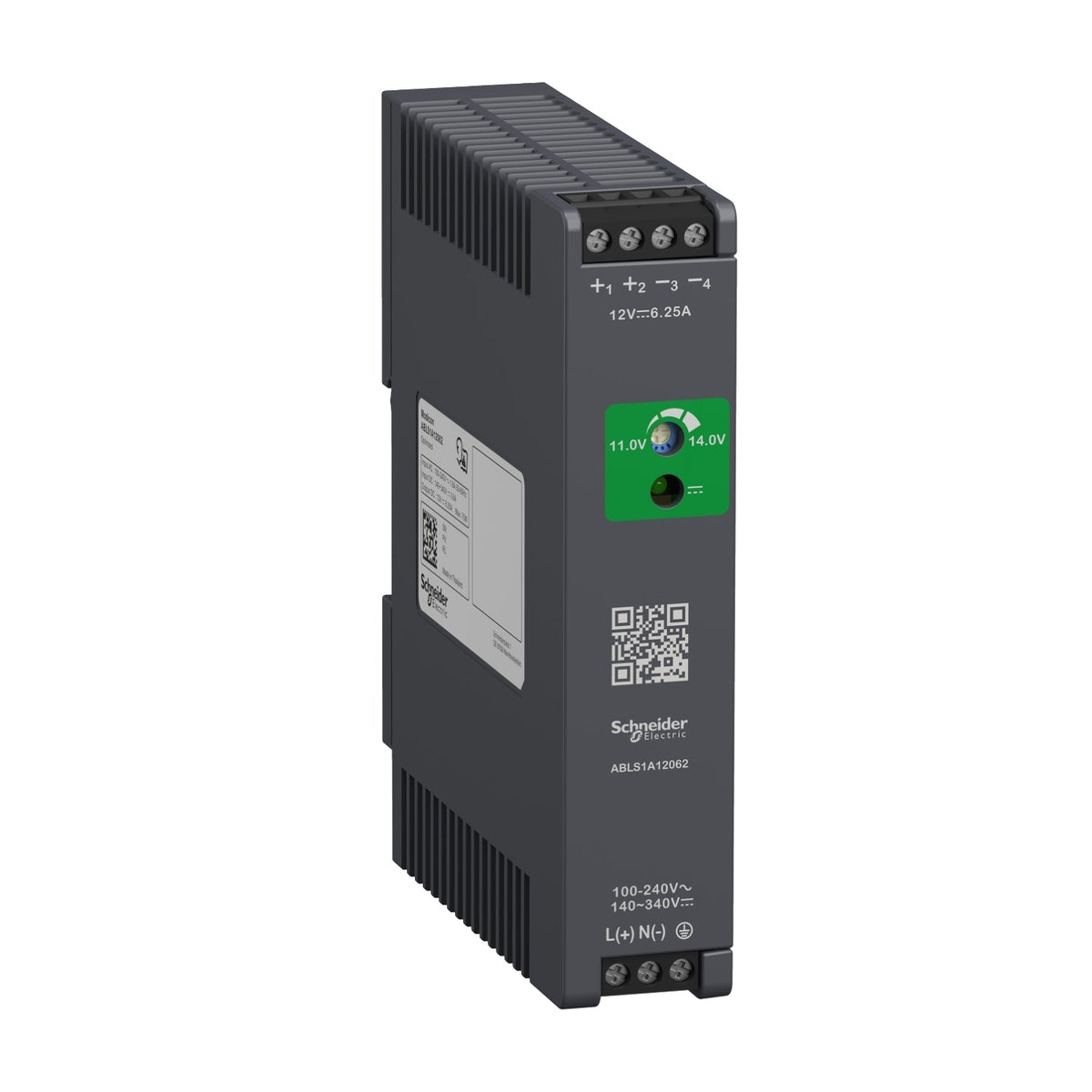

Modicon Power SupplySchneider Electric ABLS1A12062 Modicon 12 V DC 6.25 A 1-Phase 100-240 V AC Regulated Power Supply
Modicon Optimized power supply, 100-240 V AC in, 12 V DC / 6.25 A / 75 W out, 27 mm DIN rail.
Description
About the ABLS1A12062
About the ABLS1A12062
The Schneider Electric ABLS1A12062 is a Modicon Power Supply range Optimized-variant regulated power supply delivering 12 V DC at 6.25 A from a 100-240 V AC single-phase (or 140-340 V DC) input. Rated 75 W, it mounts on DIN rail in a slim 27 mm wide housing and carries an internal 5 A fuse plus automatic-reset overload, short-circuit and overvoltage protection.
Certifications & Standards
- CE
- CUL Listed
- CUL Recognized
- RCM
- CB Scheme
- EAC
- KC
- NEC class 2
- IEC 62368-1
- EN/IEC 61010-1
- EN 61010-2-201
- EN/IEC 61204-3
Selection Notes
The ABLS1A12062's 6.25 A / 75 W rating at 12 V DC matches the ABLS1A12060E's output level but in the slimmer 27 mm Optimized-variant housing and with an added 140-340 V DC input option for DC-bus installations. Choose it over the ABLS1A12060E when panel width is tight or the supply needs to accept a DC input in addition to AC mains.
Specification
Full specification
Main 9
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure Material | Plastic |
| Nominal input voltage | 100...240 V AC single phase, 100...240 V AC phase to phase, 140...340 V DC |
| Rated power in W | 75 W |
| Output voltage | 12 V DC |
| Power supply output current | 6.25 A |
Complementary 30
| Efficiency at full load | 85...264 V AC without temperature derating, 120...375 V DC without temperature derating |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN, TT, IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 5 A, External protection (recommended) 20 A Curve C, External protection (recommended) 13 A Curve B, External protection (recommended) 10 A Curve C |
| Inrush current | 40.0 A 115 V, 80.0 A 230 V |
| Power factor | 0.55 at 115 V AC, 0.45 at 230 V AC |
| Efficiency | 87 % 230 V AC |
| Output voltage adjustment | 11...14 V |
| Power dissipation in W | 16 W |
| Current consumption | < 1.8 A 115 V AC, < 1 A 230 V AC, < 0.8 A 140 V DC |
| Turn-on time | < 1.2 s |
| Holding time | > 20 ms 115 V AC, > 40 ms 230 V AC |
| Startup with capacitive loads | 5000 µF |
| Residual ripple | < 120 mV |
| Meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset, Against over temperature, protection technology: manual reset, Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.5...2.5 mm², 20 AWG...14 AWG) output, Screw connection 0.75...2.5 mm², 18 AWG...14 AWG) input |
| Line and load regulation | < 0.5 % network 0 to 100 % load at 77 °F (25 °C), < 1 % network full voltage range in line at 77 °F (25 °C) |
| Status LED | 1 LED (Green) output voltage |
| Depth | 4.02 in (102 mm) |
| Height | 4.9 in (123.6 mm) |
| Width | 1.06 in (27 mm) |
| Net Weight | 0.49 lb(US) (0.22 kg) |
| Output coupling | Parallel, Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, Double-profile DIN rail |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
Environment 11
| Standards | IEC 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201 |
|---|---|
| Product certifications | CE, CUL Listed, CUL Recognized, RCM, CB Scheme, EAC, KC, NEC class 2 |
| Operating altitude | < 5000 m overvoltage category III |
| Shock resistance | 150 m/s² 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -4…14 °F (-20…-10 °C) with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), 14…104 °F (-10…40 °C) without derating mounting position A 115 V AC < 6561.68 ft (2000 m), 14…122 °F (-10…50 °C) without derating mounting position A 230 V AC < 6561.68 ft (2000 m), 104…158 °F (40…70 °C) with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.68 ft (2000 m), 122…158 °F (50…70 °C) with current derating of 2.5 % per °C mounting position A 230 V AC < 6561.68 ft (2000 m) |
| Electrical shock protection class | Class I |
| Pollution degree | 2 |
| Vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, Immunity to voltage dips conforming to IEC 61000-4-11, Disturbing field emission conforming to EN 55016-2-3, Limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1 |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3, Radiated emissions IEC 61000-6-4 |
Show all 63 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABLS1A12062 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481500199 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 0.22 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
