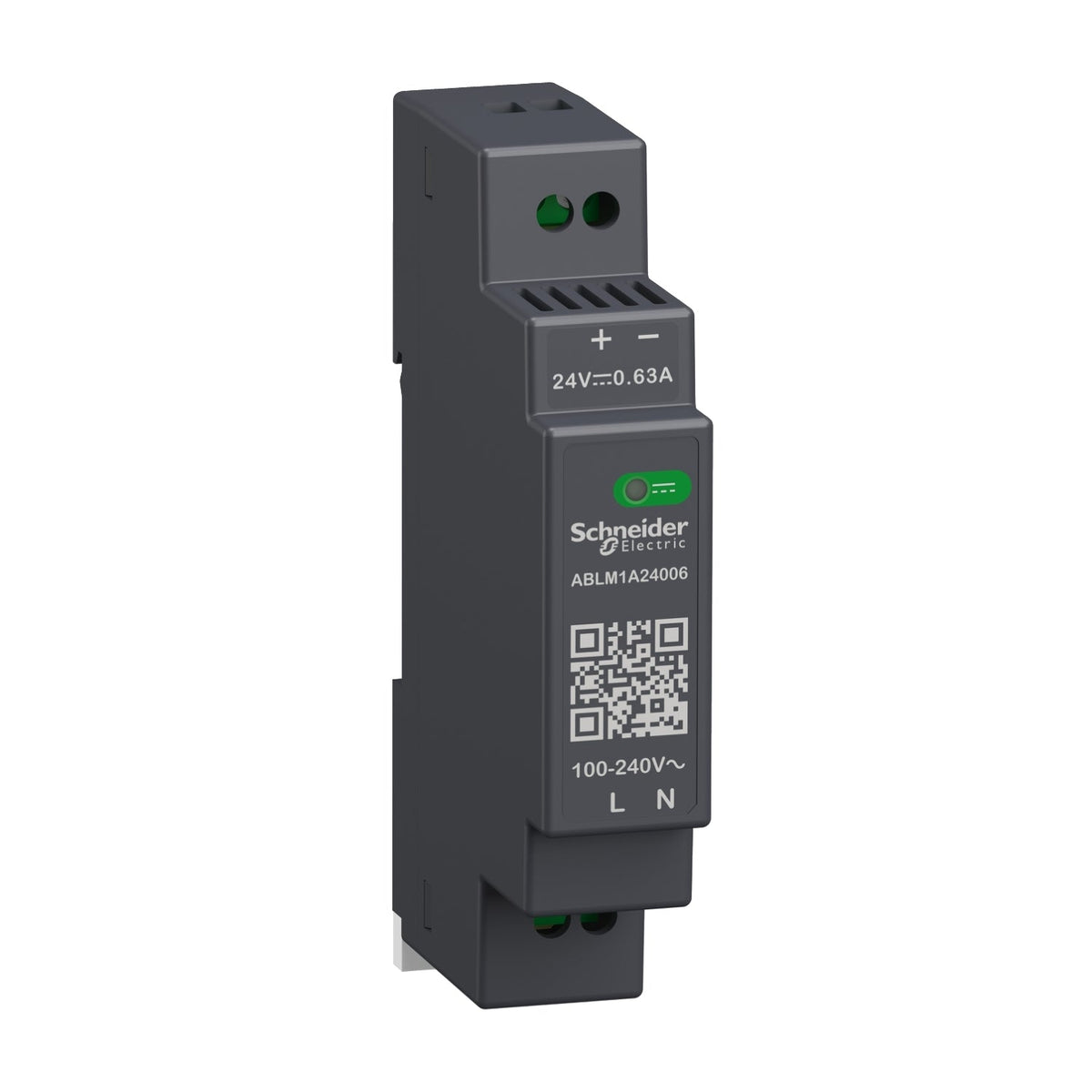

Modicon Power SupplySchneider Electric ABLM1A24006 Modicon 24 V DC 0.625 A 1-Phase 100-240 V AC Regulated Power Supply
Modicon modular power supply, 100-240 V AC in, 24 V DC / 0.625 A / 15 W out, 18 mm DIN rail.
Description
About the ABLM1A24006
About the ABLM1A24006
The Schneider Electric ABLM1A24006 is a Modicon Power Supply range modular regulated switch-mode power supply delivering 24 V DC at 0.625 A from a 100-240 V AC single-phase input. Rated 15 W, it clips onto an omega DIN rail in an 18 mm wide housing and carries an internal 3.15 A fuse plus automatic-reset overload and short-circuit protection. A front LED confirms output voltage presence.
Certifications & Standards
- CE
- CUL Listed
- CUL Recognized
- RCM
- CB Scheme
- EAC
- KC
- NEC class 2
- IEC 62368-1
- EN/IEC 61010-1
- EN 61010-2-201
- EN/IEC 61204-3
Selection Notes
The ABLM1A24006's 0.625 A / 15 W rating covers a small group of 24 V DC devices where the 0.42 A ABLM1A24004 would run out of headroom, while keeping the same compact 18 mm-wide housing. Move to the 1.25 A or 2.5 A variants in the same Modicon Power Supply range as the 24 V DC load grows.
Specification
Full specification
Main 9
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Modular |
| Enclosure Material | Plastic |
| Nominal input voltage | 100...240 V AC single phase, 100...240 V AC phase to phase |
| Rated power in W | 15 W |
| Output voltage | 24 V DC |
| Power supply output current | 0.625 A |
Complementary 29
| Efficiency at full load | 90...264 V AC |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN, TT, IT |
| Maximum leakage current | 0.25 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 3.15 A, External protection (recommended) 20 A Curve B, External protection (recommended) 20 A Curve C, External protection (recommended) 2 A Curve B, External protection (recommended) 2 A Curve C |
| Inrush current | 15 A 115 V, 30 A 230 V |
| Power factor | 0.51 at 115 V AC, 0.40 at 230 V AC |
| Efficiency | 81 % 115 V AC, 81 % 230 V AC |
| Power dissipation in W | 3.5 W |
| Current consumption | < 0.4 A 115 V AC, < 0.25 A 230 V AC |
| Turn-on time | < 2 s |
| Holding time | > 10 ms 115 V AC, > 60 ms 230 V AC |
| Startup with capacitive loads | 3000 µF |
| Residual ripple | < 100 mV |
| Meantime between failure [MTBF] | 3000000 h at 77 °F (25 °C), full load, 1000000 h at 131 °F (55 °C), 80 % load |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset, Against over temperature, protection technology: manual reset, Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.5...1.5 mm², 20 AWG...16 AWG) without wire end ferrule input/output, Screw connection 0.5...1 mm², 20 AWG...18 AWG) with wire end ferrule input/output |
| Line and load regulation | < 0.5 % network in line, < 1 % network 0 to 100 % load |
| Status LED | 1 LED (Green) output voltage |
| Depth | 2.2 in (55.6 mm) |
| Height | 3.6 in (91 mm) |
| Width | 0.7 in (18 mm) |
| Net Weight | 0.223 lb(US) (0.101 kg) |
| Output coupling | Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, Double-profile DIN rail, panel mounting |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC input/output |
| Service life | 10 year(s) |
| Overvoltage category | II |
Environment 11
| Standards | IEC 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201 |
|---|---|
| Product certifications | CE, CUL Listed, CUL Recognized, RCM, CB Scheme, EAC, KC, NEC class 2 |
| Operating altitude | < 6561.68 ft (2000 m) overvoltage category III, 2000 m...5000 m overvoltage category II |
| Shock resistance | 150 m/s² 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -13…131 °F (-25…55 °C) without current derating mounting position A < 6561.68 ft (2000 m), 131…158 °F (55…70 °C) with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m) |
| Electrical shock protection class | Class II without PE connection |
| Pollution degree | 2 |
| Vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60721-3-3, 10 m/s² (f= 9…200 Hz) conforming to IEC 60721-3-3 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, Electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, Electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, Electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, Immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, Immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11, Immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11, Immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11, Disturbing field emission conforming to EN 55016-2-3, Limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1 |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3, Radiated emissions IEC 61000-6-4 |
Show all 62 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABLM1A24006 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481500120 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 0.101 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
