Part number
ABLM1A12042
$101.83 On request Dispatch — · From TürkiyeGet a Quote

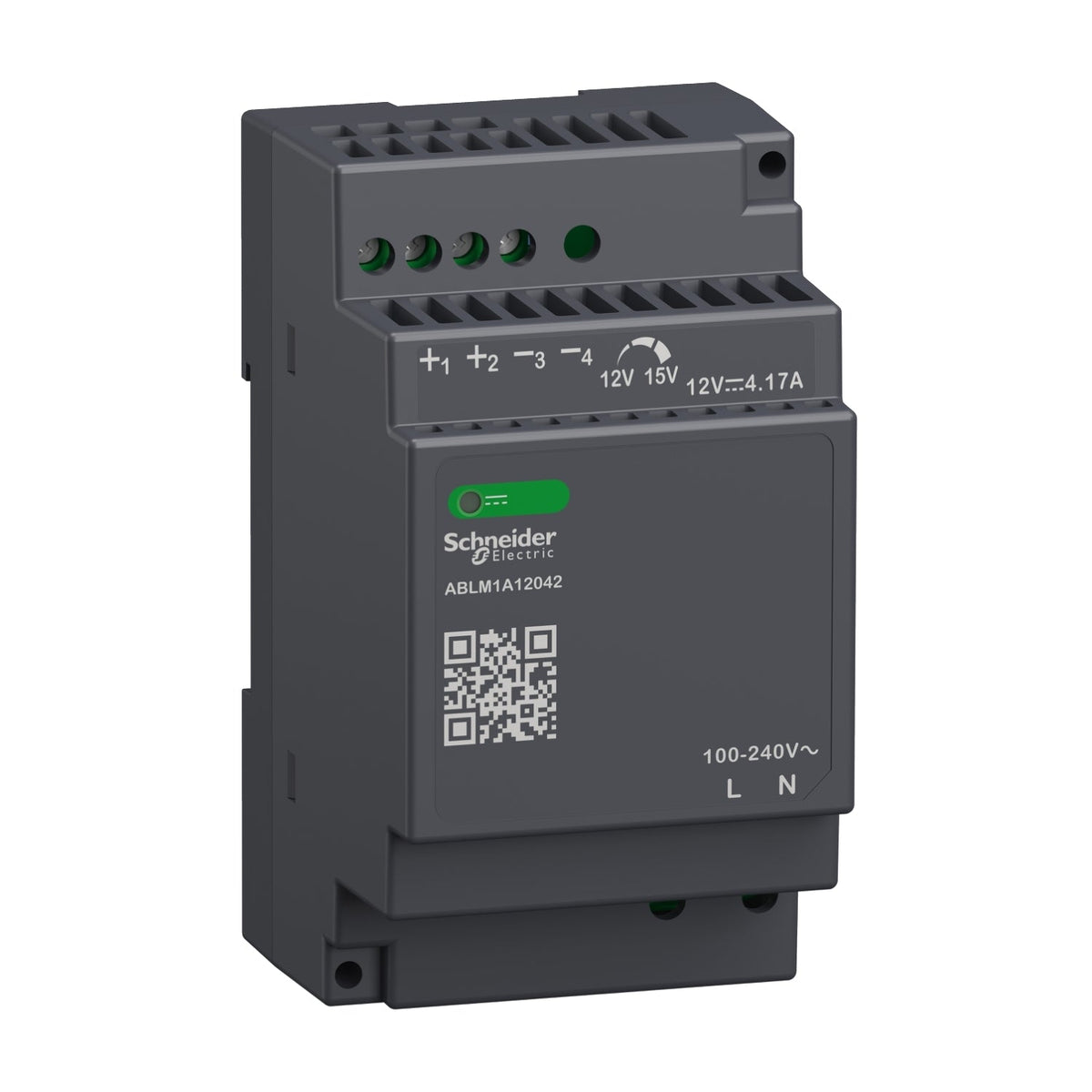

Schneider Electric ABLM1A12042 Modicon modular power supply - 12 V DC 4.17 A
  • CE
  • EAC
  • CB Scheme
Documents 4 DatasheetEN · PDFProduct data sheet ABLM1A12042 ManualEN · PDFInstruction sheet GDE5435601All 4 documents ↓
Modicon Power Supply

Schneider Electric ABLM1A12042 Modicon 12 V DC 4.17 A 1-Phase 100-240 V AC Regulated Power Supply

Modicon modular power supply, 100-240 V AC in, 12 V DC / 4.17 A / 50 W out, 53 mm DIN rail.

Ratings Full specification ↓
Rated current
4.17 A
Rated operational voltage
100–240 V AC
EAN
3606481500168
Description

About the ABLM1A12042

The Schneider Electric ABLM1A12042 is a Modicon Power Supply range modular regulated switch-mode power supply delivering 12 V DC at 4.17 A from a 100-240 V AC single-phase input. Rated 50 W, it clips onto an omega DIN rail in a 53 mm wide housing and carries an internal 3.15 A fuse plus automatic-reset overload and short-circuit protection. A front LED confirms output voltage presence.

Certifications & Standards

  • CE
  • CUL Listed
  • CUL Recognized
  • RCM
  • CB Scheme
  • EAC
  • KC
  • NEC class 2
  • IEC 62368-1
  • EN/IEC 61010-1
  • EN 61010-2-201
  • EN/IEC 61204-3

Selection Notes

The ABLM1A12042's 4.17 A / 50 W rating is the largest 12 V DC output in the ABLM1A modular family, suited to a panel with several 12 V DC devices sharing one rail-mounted supply. Drop to the 2.1 A or 1 A variants in the same range when the 12 V DC load is smaller, since all three share the same mounting footprint and enclosure.

Specification

Full specification

63 values · Last verified 30 Oct 2026

Main 9

Range of Product Modicon Power Supply
Product or Component Type Power supply
Power supply type Regulated switch mode
Variant option Modular
Enclosure Material Plastic
Nominal input voltage 100...240 V AC single phase, 100...240 V AC phase to phase
Rated power in W 50 W
Output voltage 12 V DC
Power supply output current 4.17 A

Complementary 30

Efficiency at full load 90...264 V AC
Nominal network frequency 50…60 Hz
Network system compatibility TN, TT, IT
Maximum leakage current 0.25 mA 240 V AC
Input protection type Integrated fuse (not interchangeable) 3.15 A, External protection (recommended) 20 A Curve B, External protection (recommended) 20 A Curve C, External protection (recommended) 10 A Curve B, External protection (recommended) 6 A Curve C
Inrush current 30 A 115 V, 60 A 230 V
Power factor 0.50 at 115 V AC, 0.39 at 230 V AC
Efficiency 88 % 115 V AC, 88 % 230 V AC
Output voltage adjustment 12...15 V
Power dissipation in W 5.5 W
Current consumption < 1.5 A 115 V AC, < 1 A 230 V AC
Turn-on time < 2 s
Holding time > 20 ms 115 V AC, > 60 ms 230 V AC
Startup with capacitive loads 3000 µF
Residual ripple < 100 mV
Meantime between failure [MTBF] 1500000 h at 77 °F (25 °C), full load, 1000000 h at 131 °F (55 °C), 80 % load
Output protection type Against overload and short-circuits, protection technology: automatic reset, Against over temperature, protection technology: manual reset, Against overvoltage, protection technology: manual reset
Connections - terminals Screw connection 0.5...2.5 mm², 20 AWG...14 AWG) without wire end ferrule output, Screw connection 0.5...1.5 mm², 20 AWG...16 AWG) with wire end ferrule output, Screw connection 0.5...1.5 mm², 20 AWG...16 AWG) input
Line and load regulation < 0.5 % network in line, < 1 % network 0 to 100 % load
Status LED 1 LED (Green) output voltage
Depth 2.2 in (55.6 mm)
Height 3.6 in (91 mm)
Width 2.09 in (53 mm)
Net Weight 0.487 lb(US) (0.221 kg)
Output coupling Serial, Parallel
Mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, Double-profile DIN rail, panel mounting
Supply SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Dielectric strength 3000 V AC input/output
Service life 10 year(s)
Overvoltage category II

Environment 11

Standards IEC 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201
Product certifications CE, CUL Listed, CUL Recognized, RCM, CB Scheme, EAC, KC, NEC class 2
Operating altitude < 6561.68 ft (2000 m) overvoltage category III, 2000 m...5000 m overvoltage category II
Shock resistance 150 m/s² 11 ms
IP degree of protection IP20
Ambient air temperature for operation -13…131 °F (-25…55 °C) without current derating mounting position A < 6561.68 ft (2000 m), 131…158 °F (55…70 °C) with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
Electrical shock protection class Class II without PE connection
Pollution degree 2
Vibration resistance 3 mm (f= 2…9 Hz) conforming to IEC 60721-3-3, 10 m/s² (f= 9…200 Hz) conforming to IEC 60721-3-3
Electromagnetic immunity Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, Electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, Electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, Electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, Immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, Immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11, Immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11, Immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11, Disturbing field emission conforming to EN 55016-2-3, Limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
Electromagnetic emission Conducted emissions IEC 61000-6-3, Radiated emissions IEC 61000-6-4
Show all 63 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number ABLM1A12042
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481500168

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IN
Shipping weight 0.221 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for ABLM1A12042 4
Missing a document? Ask us
Certifications

Certifications and standards
  • CE
  • EAC
  • CB Scheme
  • IEC 62368-1
  • EN/IEC 61010-1
  • EN 61010-2-201
  • EN/IEC 61204-3
  • IEC 61000-6-1
  • IEC 61000-6-2
  • IEC 61000-6-3
  • IEC 61000-6-4
  • IEC 61000-3-2
  • EN 61000-3-3
  • UL 62368-1
  • UL 61010-1
Quick answers

Questions about the ABLM1A12042

What is the rated current of ABLM1A12042?

The rated current of ABLM1A12042 is 4.17 A.

Which supply voltage is ABLM1A12042 rated for?

The rated operational voltage of ABLM1A12042 is 100–240 V AC.

What is the HS code of ABLM1A12042 for customs?

The tariff (HS) code on file for ABLM1A12042 is 850440.

What is the EAN of ABLM1A12042?

The EAN (GTIN) of ABLM1A12042 is 3606481500168.

Where does ABLM1A12042 ship from, and how fast?

ABLM1A12042 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
