Schneider Electric ABLM1A05036 Modicon 5 V DC 3.6 A 1-Phase 100-240 V AC Regulated Power Supply

% $-86.37

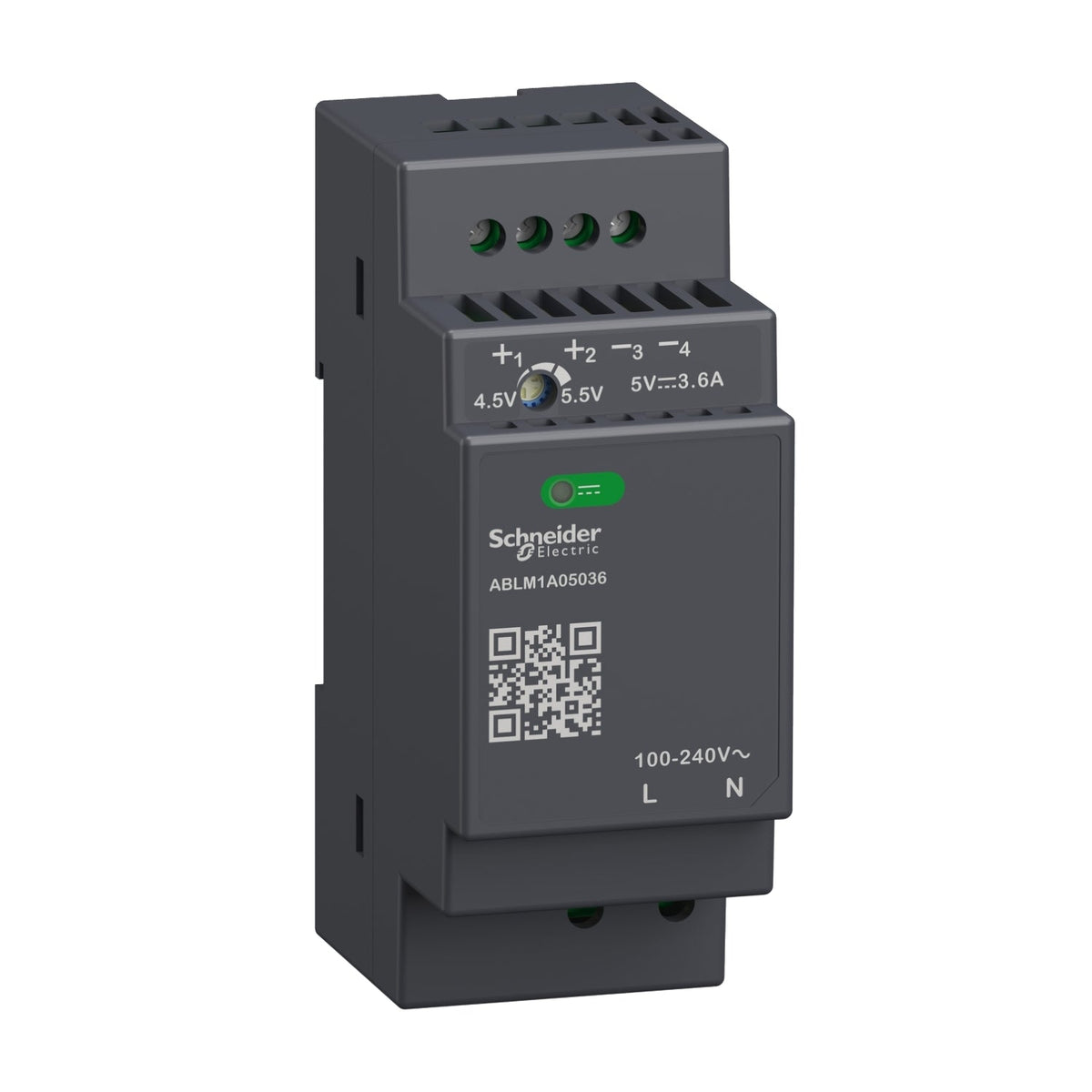

Schneider Electric ABLM1A05036 Modicon modular power supply - 5 V DC 3.6 A
Schneider Electric ABLM1A05036 Modicon modular power supply - 5 V DC 3.6 A

Schneider Electric ABLM1A05036 Modicon 5 V DC 3.6 A 1-Phase 100-240 V AC Regulated Power Supply

Brand: Schneider Electric
Reference No: ABLM1A05036
Catalog No: ABLM1A05036
Series: Modicon Power Supply
Tariff Code (HS): 850440
Rated Current: 3.6 A
Rated Voltage: 100-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$86.37

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ABLM1A05036 is a Modicon Power Supply range modular regulated switch-mode power supply delivering 5 V DC at 3.6 A from a 100-240 V AC single-phase input. Rated 18 W, it clips onto an omega DIN rail in a compact 36 mm wide housing and carries an internal 3.15 A fuse plus automatic-reset overload and short-circuit protection. A front LED confirms output voltage presence.

Technical Specifications

Reference ABLM1A05036
GTIN 3606481500137
Brand Schneider Electric
Range Modicon Power Supply
Product Type Power supply
Nominal Input Voltage 100-240 V AC single phase
Rated Power 18 W
Output Voltage 5 V DC
Output Current 3.6 A
Efficiency 80 %
Inrush Current 25 A at 115 V / 50 A at 230 V
Power Dissipation 4.5 W
Integrated Fuse 3.15 A (not interchangeable)
Dimensions (W x H x D) 36 x 91 x 55.6 mm
Mounting Top hat TH35-15 / TH35-7.5 DIN rail (IEC 60715)
IP Degree of Protection IP20
Operating Temperature -25 to 55 °C without derating (<2000 m)
MTBF 2,500,000 h at 25 °C, full load
Net Weight 0.170 kg

Certifications & Standards

  • CE
  • CUL Listed
  • CUL Recognized
  • RCM
  • CB Scheme
  • EAC
  • KC
  • NEC class 2
  • IEC 62368-1
  • EN/IEC 61010-1
  • EN 61010-2-201
  • EN/IEC 61204-3

Selection Notes

The ABLM1A05036 is the 5 V DC member of the ABLM1A modular family, sized for logic-level circuits or legacy 5 V field devices rather than the 12 V or 24 V I/O common on most modern PLCs. Reach for the 12 V or 24 V variants in the same range when the downstream devices use those standard automation voltages instead.

Technical Details

Short Description
Modicon modular power supply, 100-240 V AC in, 5 V DC / 3.6 A / 18 W out, 36 mm DIN rail.
Rated Current (Ampere)
3.6 A
Rated Voltage (VAC)
100-240 V AC
Mounting Type
DIN rail
Protection Type
IP20
Catalog No
ABLM1A05036
Delivery Date (Days)
30 days
Model Number
Modicon Power Supply
Tariff Code
850440
