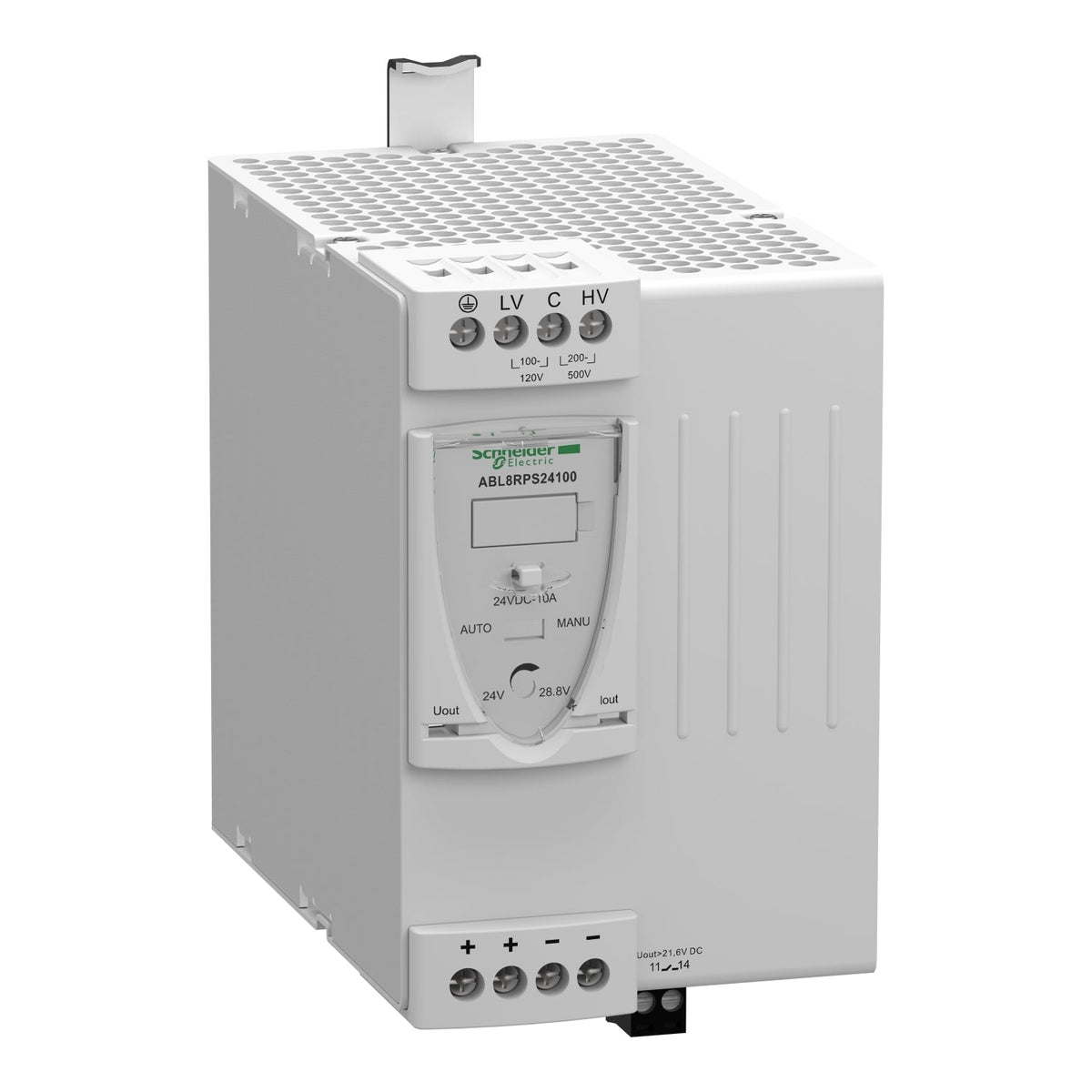

Modicon Power SupplySchneider Electric ABL8RPS24100 Modicon 24 V DC 10 A 1/2-Phase 100-500 V AC Regulated Power Supply
Modicon power supply, 100-500 V AC in, 24 V DC / 10 A / 240 W out, 86 mm wide, DIN rail mount.
Description
About the ABL8RPS24100
About the ABL8RPS24100
The Schneider Electric ABL8RPS24100 is a Modicon Power Supply range regulated switch-mode power supply for 100-500 V AC installations. It converts single or two-phase mains into a regulated 24 V DC output rated at 10 A and 240 W, with a power-factor-correction filter and automatic-reset overload protection. At 86 mm wide, it mounts on 35 mm DIN rail alongside GB2 or GV2 circuit breakers.
Certifications & Standards
- CE
- CCSAus
- EAC
- KC
- RCM
- UL
- UL 508
- CSA C22.2 No 60950-1
- EN/IEC 62368-1
Selection Notes
The ABL8RPS24100's 10 A / 240 W rating covers a mid-size panel with a PLC, an HMI and several I/O modules sharing one 24 V DC bus. Move to the 20 A ABL8RPM variant in the same Modicon Power Supply range for a larger panel, or drop to the 3 A or 5 A units for a lighter load.
Specification
Full specification
Main 9
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase N-L1, 200...500 V AC phase to phase L1-L2 |
| Rated power in W | 240 W |
| Output voltage | 24 V DC |
| Power supply output current | 10 A |
| Permissible temporary current boost | 1.5 x In for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
Complementary 20
| Efficiency at full load | 170...550 V AC, 85...132 V AC |
|---|---|
| Inrush current | 30 A |
| Power factor | 0.68 at 240 V AC, 0.69 at 120 V AC |
| Efficiency | 87 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 31 W |
| Provided equipment | Power factor correction filter IEC 61000-3-2 |
| Output protection type | Against overload, protection technology: manual or automatic reset, Against overvoltage, protection technology: 30...32 V, manual reset, Against short-circuits, protection technology: manual or automatic reset, Against undervoltage, protection technology: tripping if U < 21.6 V, Thermal, protection technology: automatic reset |
| Connections - terminals | Removable screw terminal block 2 x 2.5 mm², diagnostic relay, Screw type terminals 3 x 0.5...3 x 4 mm², 22 AWG...12 AWG) input connection, Screw type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) input ground connection, Screw type terminals 4 x 0.5...4 x 4 mm², 22 AWG...12 AWG) output connection, Screw type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) output ground connection |
| Status LED | 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current |
| Depth | 5.7 in (145 mm) |
| Height | 4.9 in (125 mm) |
| Width | 3.4 in (86 mm) |
| Net Weight | 2.2 lb(US) (1 kg) |
| Output coupling | Parallel, Series |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Dielectric strength | 3500 V with between input and ground, 4000 V with between input and output, 500 V with between output and ground |
Environment 6
| Standards | UL 508, CSA C22.2 No 60950-1, EN/IEC 62368-1 |
|---|---|
| Product certifications | CCSAus, EAC, KC, RCM, UL |
| Environmental characteristic | EMC conforming to IEC 61000-6-1, EMC conforming to IEC 61000-6-3, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-4, EMC conforming to EN/IEC 61204-3, Safety conforming to IEC 60950-1, Safety conforming to EN/IEC 61204-3 |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | 122…140 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m), -13…122 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m) |
Show all 48 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABL8RPS24100 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119405621 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | PH |
|---|---|
| Shipping weight | 1.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
