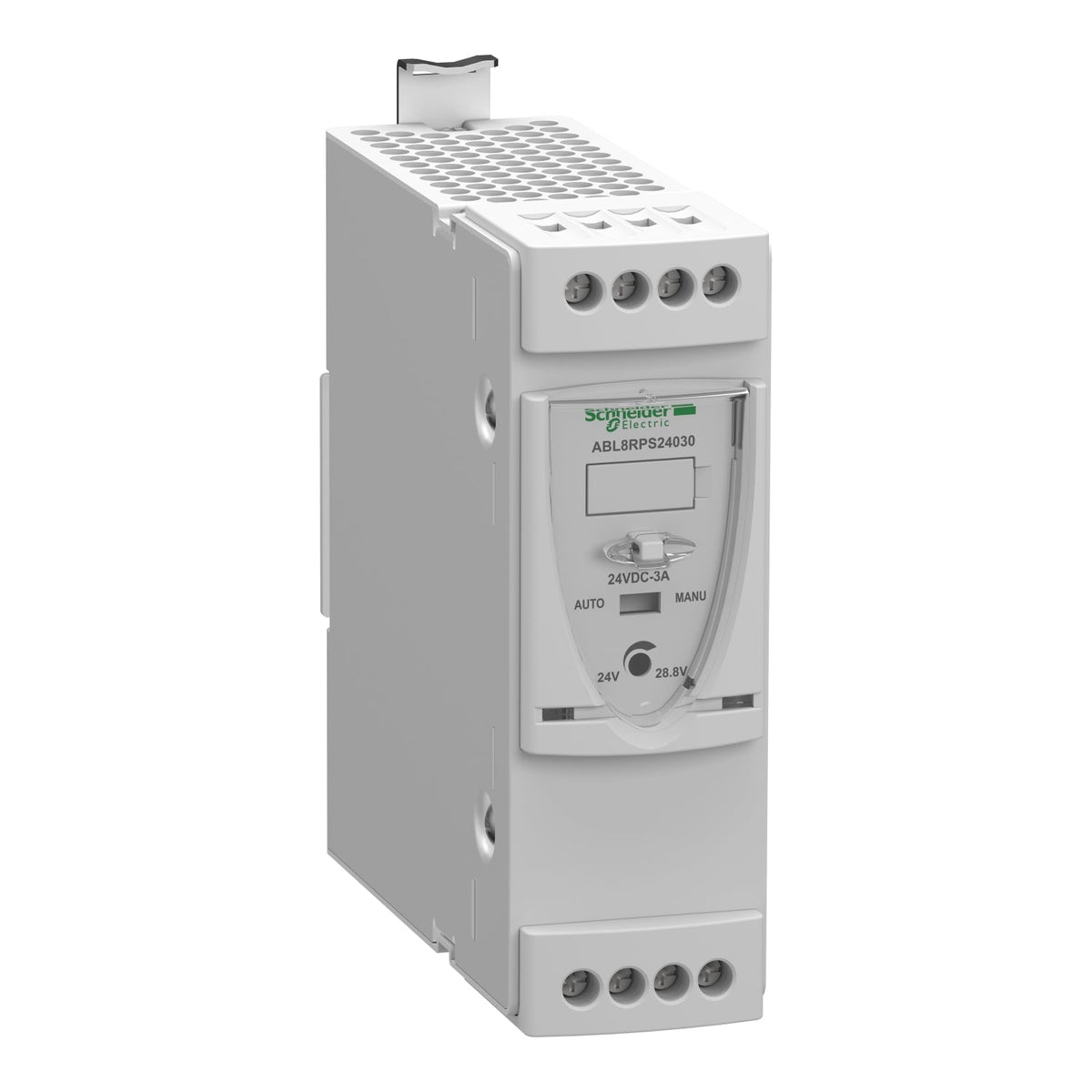

Schneider Electric ABL8RPS24030 Modicon 24 V DC 3 A 1/2-Phase 100-500 V AC Regulated Power Supply

% $-181.34
Schneider Electric ABL8RPS24030 Modicon power supply - 24 V DC 3 A 72 W
Schneider Electric ABL8RPS24030 Modicon power supply - 24 V DC 3 A 72 W

Schneider Electric ABL8RPS24030 Modicon 24 V DC 3 A 1/2-Phase 100-500 V AC Regulated Power Supply

Brand: Schneider Electric
Reference No: ABL8RPS24030
Catalog No: ABL8RPS24030
Series: Modicon Power Supply
Tariff Code (HS): 850440
Rated Current: 3 A
Rated Voltage: 100-500 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$181.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ABL8RPS24030 is a Modicon Power Supply range regulated switch-mode power supply built for wide-range 100-500 V AC installations. It converts single or two-phase mains into a regulated 24 V DC output rated at 3 A and 72 W, with a built-in power-factor-correction filter and automatic-reset overload protection. At 44 mm wide, it mounts on 35 mm DIN rail alongside GB2 or GV2 circuit breakers.

Technical Specifications

Reference ABL8RPS24030
GTIN 3389119405607
Brand Schneider Electric
Range Modicon Power Supply
Product Type Power supply
Nominal Input Voltage 100-120 V AC 1-phase (N-L1) / 200-500 V AC phase-to-phase (L1-L2)
Rated Power 72 W
Output Voltage 24 V DC
Output Current 3 A
Permissible Temporary Current Boost 1.5 x In for 4 s
Inrush Current 30 A
Efficiency 87 %
Output Voltage Adjustment 24-28.8 V
Power Dissipation 7.8 W
Dimensions (W x H x D) 45 x 125 x 125 mm
Mounting 35 x 15 mm / 35 x 7.5 mm DIN rail
IP Degree of Protection IP20 (IEC 60529)
Operating Temperature -25 to 50 °C without derating, 50 to 60 °C with derating (<2000 m)
Net Weight 0.3 kg

Certifications & Standards

  • CE
  • CCSAus
  • EAC
  • UL
  • RCM
  • KC
  • CSA C22.2 No 60950-1
  • UL 508
  • EN/IEC 62368-1

Selection Notes

The ABL8RPS24030's 3 A / 72 W rating fits a single compact PLC, a handful of sensors or a small I/O block on a 24 V DC bus. Step up to the 5 A, 10 A or 20 A variants in the same Modicon Power Supply range as more field devices or a second I/O rack are added, since all four accept the same wide 100-500 V AC input and mount the same way.

Technical Details

Short Description
Modicon power supply, 100-500 V AC in, 24 V DC / 3 A / 72 W out, 44 mm wide, DIN rail mount.
Rated Current (Ampere)
3 A
Rated Voltage (VAC)
100-500 V AC
Mounting Type
DIN rail
Protection Type
IP20
Catalog No
ABL8RPS24030
Delivery Date (Days)
30 days
Model Number
Modicon Power Supply
Tariff Code
850440
