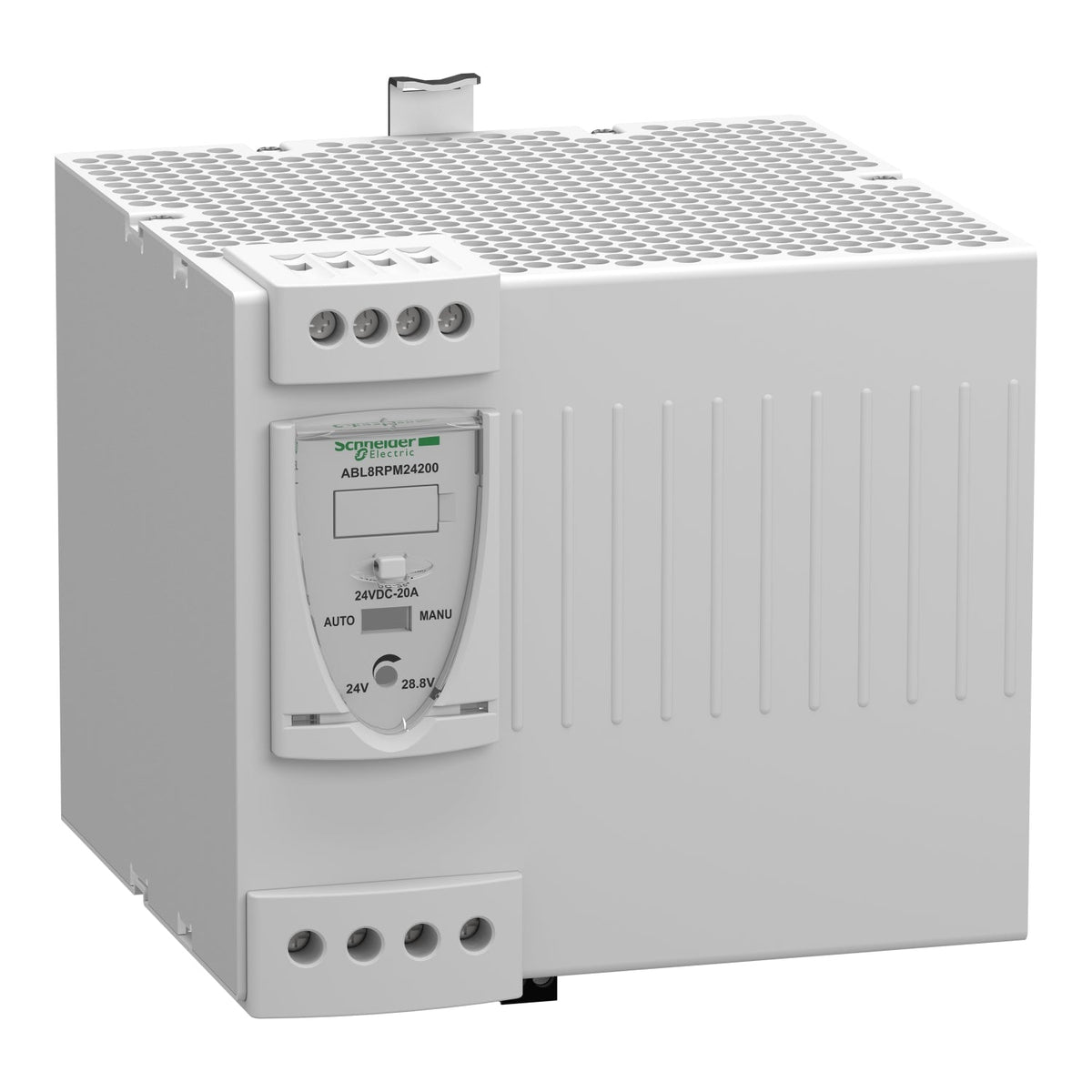

Modicon Power SupplySchneider Electric ABL8RPM24200 Modicon 24 V DC 20 A 1/2-Phase 100-240 V AC Regulated Power Supply
Modicon power supply, 100-240 V AC in, 24 V DC / 20 A / 480 W out, DIN rail mount, 150% inrush boost.
Description
About the ABL8RPM24200
About the ABL8RPM24200
The Schneider Electric ABL8RPM24200 is a Modicon Power Supply range regulated switch-mode power supply for 24 V DC automation loads. It accepts 100-240 V AC single or two-phase input and delivers 20 A continuous output at 480 W, with a 150% overload reserve for 4 s to ride through simultaneous inrush currents. It mounts on 35 mm DIN rail and reports output status through front LEDs.
Certifications & Standards
- CE
- CCSAus
- EAC
- KC
- RCM
- UL
- UL 508
- CSA C22.2 No 60950-1
- EN/IEC 62368-1
Selection Notes
The ABL8RPM24200's 20 A / 480 W rating suits a panel with several I/O racks, an HMI and multiple field devices sharing one 24 V DC bus, and the 150% / 4 s current boost covers simultaneous inrush when several loads switch on together. Drop to the lower-current ABL8RPS variants in the same Modicon Power Supply range for a single PLC or a small device cluster where 480 W is more capacity than the panel needs.
Specification
Full specification
Main 9
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase N-L1, 200...240 V AC phase to phase L1-L2 |
| Rated power in W | 480 W |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
| Permissible temporary current boost | 1.5 x In for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
Complementary 20
| Efficiency at full load | 85...132 V AC, 170...264 V AC |
|---|---|
| Inrush current | 30 A |
| Power factor | 0.68 at 240 V AC, 0.69 at 120 V AC |
| Efficiency | 88 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 57.6 W |
| Provided equipment | Power factor correction filter IEC 61000-3-2 |
| Output protection type | Against overload, protection technology: manual or automatic reset, Against overvoltage, protection technology: 30...32 V, manual reset, Against short-circuits, protection technology: manual or automatic reset, Against undervoltage, protection technology: tripping if U < 21.6 V, Thermal, protection technology: automatic reset |
| Connections - terminals | Removable screw terminal block 2 x 2.5 mm², diagnostic relay, Screw type terminals 3 x 0.5...3 x 4 mm², 22 AWG...12 AWG) input connection, Screw type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) input ground connection, Screw type terminals 4 x 0.5...4 x 4 mm², 22 AWG...12 AWG) output connection |
| Status LED | 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current |
| Depth | 5.7 in (145 mm) |
| Height | 4.9 in (125 mm) |
| Width | 5.7 in (146 mm) |
| Net Weight | 3.5 lb(US) (1.6 kg) |
| Output coupling | Series, Parallel |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Dielectric strength | 2500 V with between input and ground, 3000 V with between input and output, 500 V with between output and ground |
Environment 6
| Standards | CSA C22.2 No 60950-1, UL 508, EN/IEC 62368-1 |
|---|---|
| Product certifications | CCSAus, EAC, KC, RCM, UL |
| Environmental characteristic | EMC conforming to IEC 61000-6-1, EMC conforming to IEC 61000-6-3, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-4, EMC conforming to EN/IEC 61204-3, Safety conforming to IEC 60950-1, Safety conforming to EN/IEC 61204-3 |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 conforming to IEC 60529, IP10 |
| Ambient air temperature for operation | 122…140 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m), -13…122 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m) |
Show all 48 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABL8RPM24200 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119405638 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | PH |
|---|---|
| Shipping weight | 1.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ABL8RPM24200
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- EAC
- CSA C22.2 No 60950-1
- UL 508
- EN/IEC 62368-1
Quick answers
Questions about the ABL8RPM24200
What is the rated current of ABL8RPM24200?
The rated current of ABL8RPM24200 is 20 A.
Which supply voltage is ABL8RPM24200 rated for?
The rated operational voltage of ABL8RPM24200 is 100–240 V AC.
What is the HS code of ABL8RPM24200 for customs?
The tariff (HS) code on file for ABL8RPM24200 is 850440.
What is the EAN of ABL8RPM24200?
The EAN (GTIN) of ABL8RPM24200 is 3389119405638.
Where does ABL8RPM24200 ship from, and how fast?
ABL8RPM24200 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
