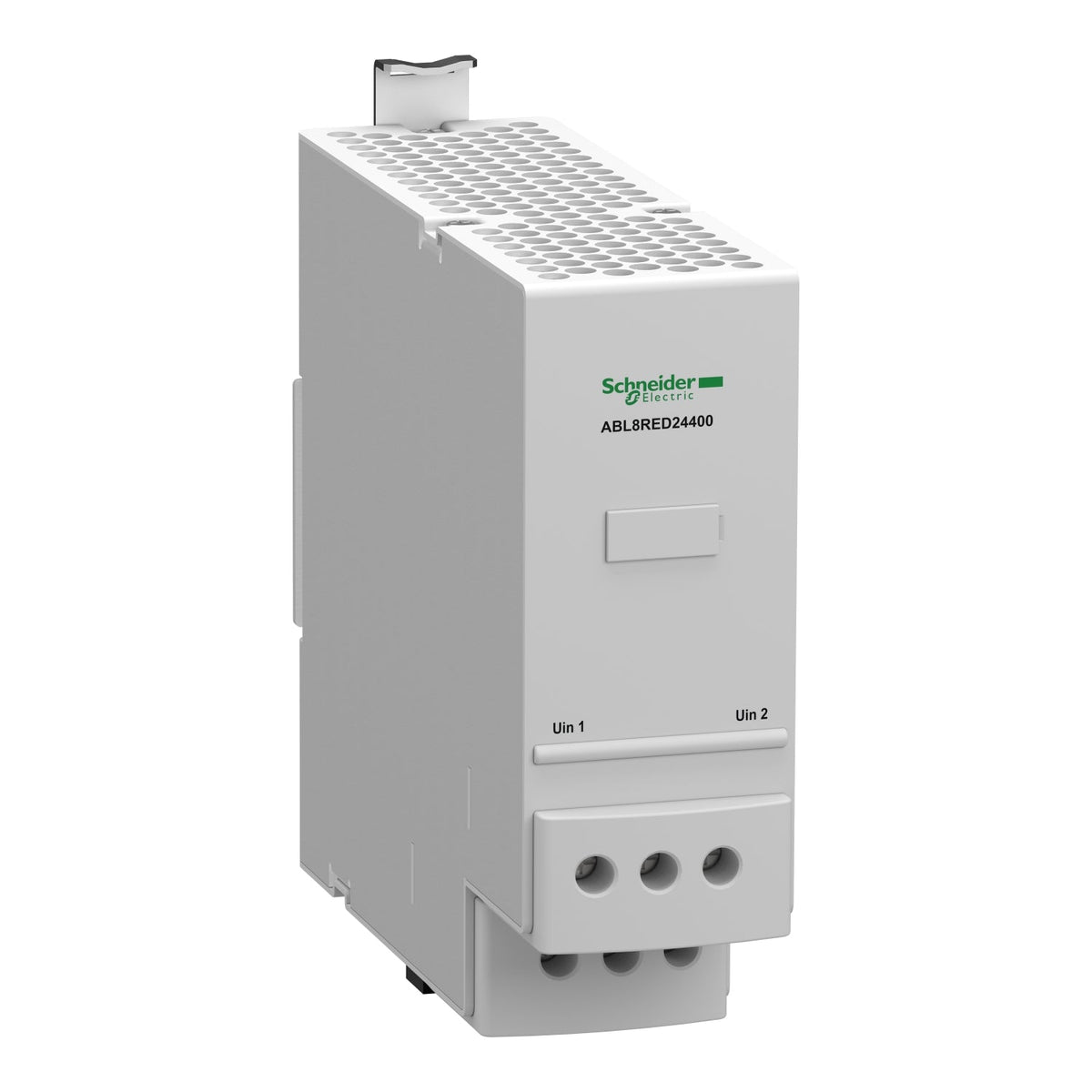

PhaseoSchneider Electric ABL8RED24400 Phaseo Redundancy Module 24 V DC 40 A Power Supply
Phaseo redundancy module, 24 V DC, 40 A, backs up a bus across two parallel power supplies. DIN rail mount.
Description
About the ABL8RED24400
About the ABL8RED24400
The Schneider Electric ABL8RED24400 is a Phaseo redundancy module that keeps a 24 V DC auxiliary circuit powered if one of two parallel ABL8 power supplies fails. It accepts a 24-28.8 V DC input from each supply and delivers up to 40 A of combined output. A front LED per input reports supply status for fast diagnosis on the panel.
Certifications & Standards
- CE
- EAC
- RCM
- CSA C22.2 No 60950-1
- UL 508
Selection Notes
Choose the ABL8RED24400 when two ABL8RP or ABL8WP power supplies feed the same 24 V DC bus and the installation cannot tolerate a single power-supply failure taking the bus down; either unit can carry the full 40 A load if the other trips. Use the buffer module in the same series instead when the concern is a brief mains interruption rather than supply redundancy.
Specification
Full specification
Main 5
| Range of Product | Phaseo |
|---|---|
| Product or Component Type | Redundancy module |
| Input voltage | 24...28.8 V DC |
| Output voltage | (Uin-0.2) V DC |
| Maximum output current | 40 A |
Complementary 12
| Input voltage limits | 22...30 V |
|---|---|
| Input Current | 20 A |
| Number of output channels | 1 |
| Output protection type | Against overload, protection technology: external protection by power supply, Against short-circuits, protection technology: external protection by power supply |
| Connections - terminals | For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG, For input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² 20 AWG...8 AWG, For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² 14 AWG |
| Fixing mode | By clips 35 mm symmetrical DIN rail horizontal, By clips 35 mm symmetrical DIN rail vertical |
| Output coupling | Parallel |
| Operating altitude | 6561.68 ft (2000 m) |
| Marking | CE |
| Name of test | Electrostatic discharges IEC 61000-4-2, Emission IEC 61000-6-3, Induced electromagnetic field IEC 61000-4-6 level 3, Radiated electromagnetic field IEC 61000-4-3 level 3, Rapid transient IEC 61000-4-4 level 3, Surge IEC 61000-4-5 level 2, Conducted/radiated emissions EN 55022 Class B, Emission EN 50081-1 |
| Local signalling | 1 LED per input (green) for power supply status, 1 relay for power supply status |
| Net Weight | 1.5 lb(US) (0.7 kg) |
Environment 11
| Product Certifications | EAC, RCM |
|---|---|
| Standards | CSA C22.2 No 60950-1, UL 508 |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Environmental characteristic | EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-2, Safety conforming to IEC 60950-1, Safety conforming to EN/IEC 61204 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 500 V between input and ground, 500 V between output and ground |
| Overvoltage category | Class II conforming to VDE 0106-1 |
| Relative Humidity | 0…90 % during operation, 0…95 % during storage |
| MTBF reliability | 2488391 H at 24 V DC with UTE C80-810 calculation method |
| Vibration resistance | 2 gn (f= 11.9…150 Hz) conforming to IEC 61131-2, 3.5 mm (f= 3…11.9 Hz) conforming to IEC 61131-2 |
Show all 41 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ABL8RED24400 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119406871 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | PH |
|---|---|
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
