- Part number
- 9001KP7R9
- Model no
- 9001K
Description
About the 9001K
About the 9001K

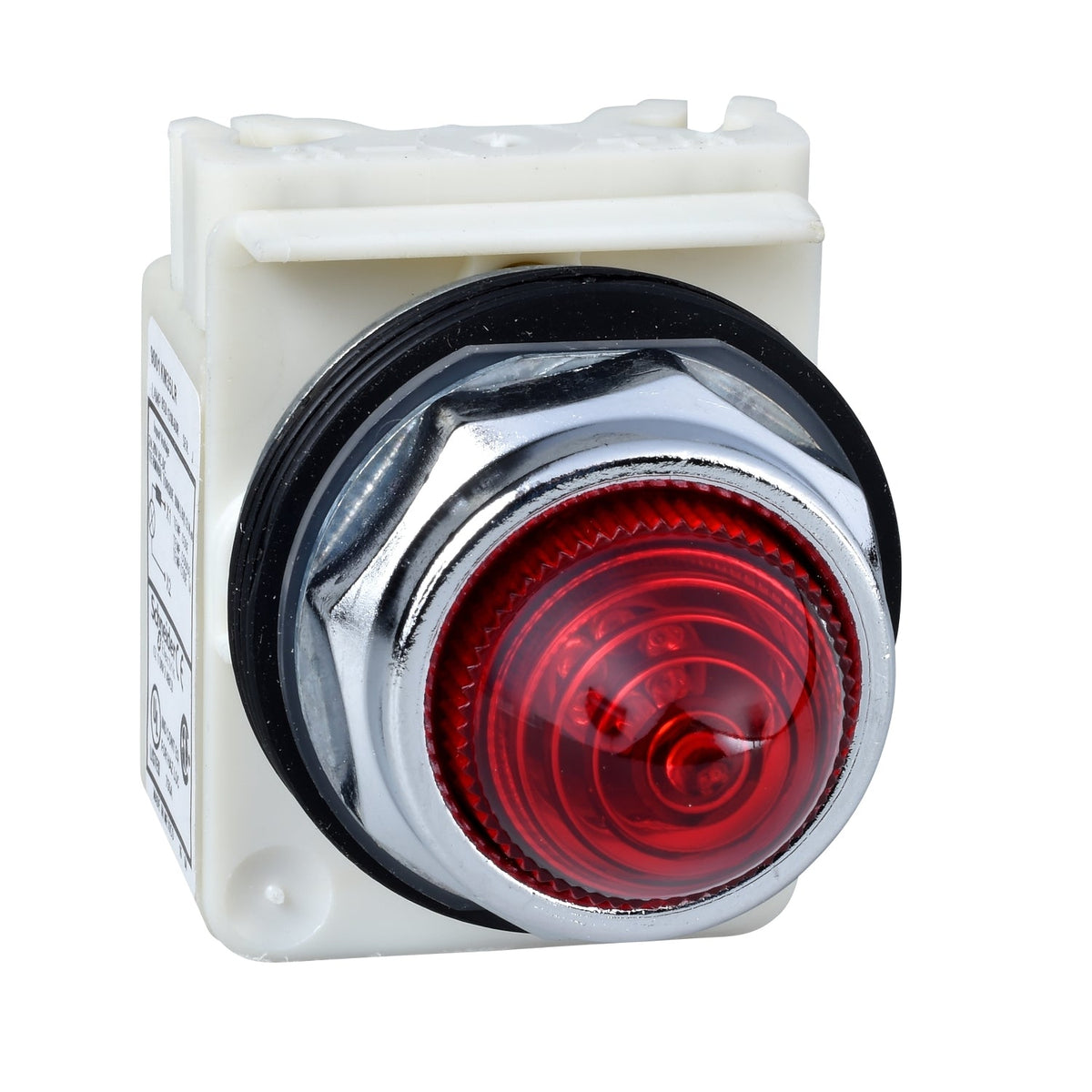

The Schneider Electric 9001KP7R9 is a red Harmony 9001K pilot light with an incandescent bulb fed through an integral step-down transformer from a 220...240 V AC, 50/60 Hz supply. It mounts in a standard 30 mm panel cut-out with a chromium-plated metal bezel and domed polycarbonate lens, giving an IP65/IP66-rated status indicator wired directly to mains control voltage.
Certifications & Standards
- NEMA
- UL 508
- EN/IEC 60947-1
- JIS C 852
- EN/IEC 60947-5-4
- JIS C8201-5-1
- EN/IEC 60947-5-1
- CSA C22.2 No. 14
- JIS C8201-1
Selection Notes
The built-in transformer lets this red pilot light connect straight to a 220...240 V AC control circuit without an external 24 V supply, which is the deciding factor over the direct-fed 9001KP35L series when the panel only distributes mains control voltage. The incandescent BA9s bulb is a wearing part and is replaceable from the front without removing the bezel. Choose this red lens to keep the status colour consistent with the rest of the 9001K indicator set on the same panel.
Specification
Full specification
Main 3
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Pilot light |
| Device short name | 9001K |
Complementary 25
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Shape of signaling unit head | Round |
| Lens type | Domed plastic |
| Cap/operator or lens colour | Red |
| Light source | incandescent |
| Bulb base | BA 9s |
| Light block supply | Via integral transformer 220...240 V AC 50/60 Hz 6 V) |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| shape of screw head | Cross slotted |
| Operating position | Any position |
| [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A |
| CAD overall width | 2.1 in (54 mm) |
| CAD overall height | 2.8 in (70 mm) |
| CAD overall depth | 1.7 in (42 mm) |
| [Us] rated supply voltage | 220...240 V AC |
| Net Weight | 0.46 lb(US) (0.21 kg) |
| Device presentation | Complete product |
| Supply frequency | 50...60 Hz |
| Lens material | Polycarbonate |
| Size | 30 mm |
Environment 10
| Standards | CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, JIS C 852, EN/IEC 60947-5-1, JIS C8201-1 |
|---|---|
| Product Certifications | UL 508, NEMA |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP Degree of Protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6 |
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | 9001KP7R9 |
|---|---|
| Type designation | 9001K |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 785901820550 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | MX |
|---|---|
| Shipping weight | 0.21 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
