Part number
9001KP7L9
Model no
9001K
$49.34 On request Dispatch — · From TürkiyeGet a Quote
Harmony 9001K

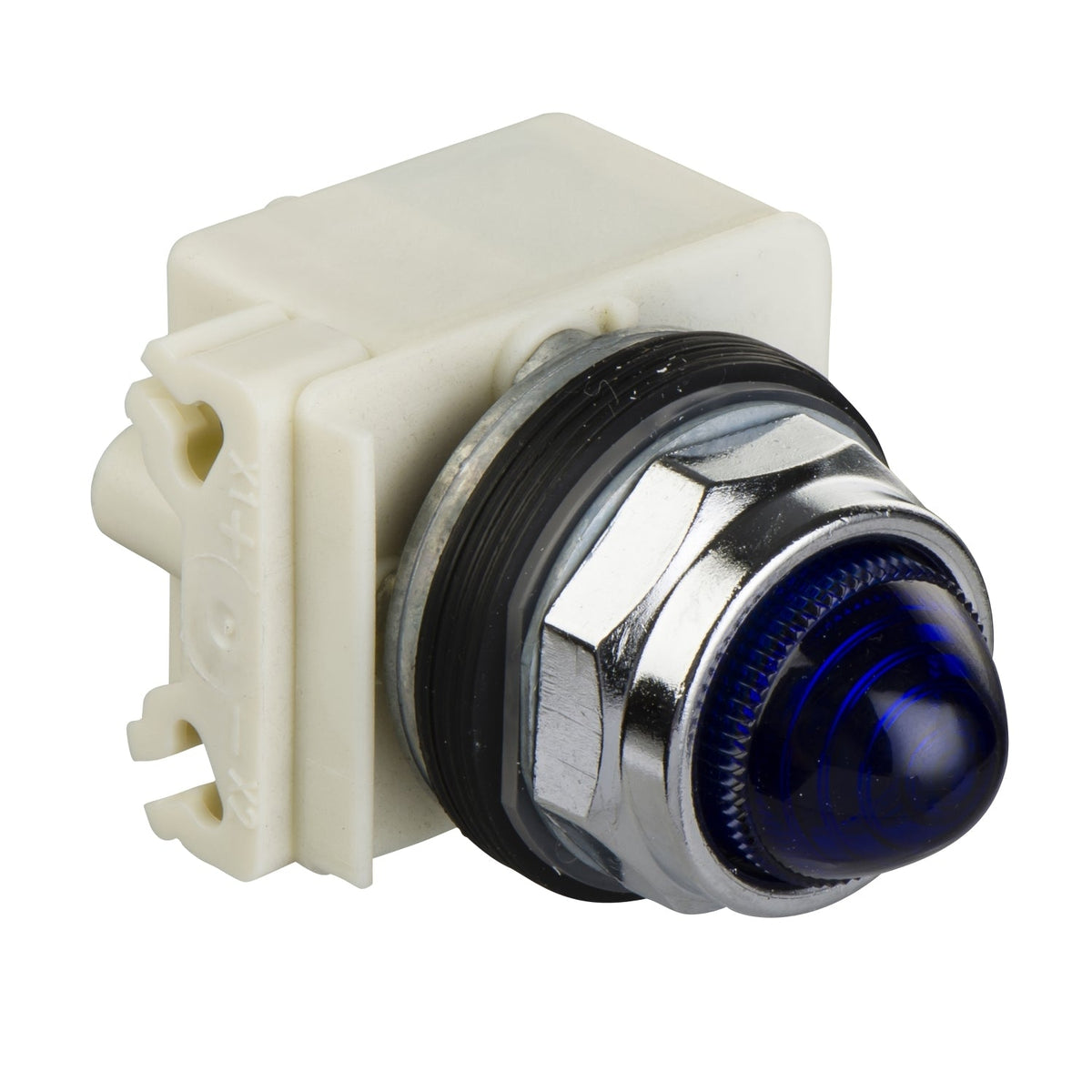

Schneider Electric 9001KP7L9 Harmony 9001K Pilot Light Metal Blue 30 mm Transformer 220-240V AC Pilot Light

Harmony 9001K blue pilot light, integral transformer, 220-240 V AC, IP66 metal bezel.

Rated operational voltage
220–240 V AC
EAN
785901952985
Description

About the 9001K

The Schneider Electric 9001KP7L9 is a blue Harmony 9001K pilot light with an incandescent bulb fed through an integral step-down transformer from a 220...240 V AC, 50/60 Hz supply. It mounts in a standard 30 mm panel cut-out with a chromium-plated metal bezel and domed polycarbonate lens, giving an IP65/IP66-rated status indicator wired directly to mains control voltage.

Certifications & Standards

  • NEMA
  • UL 508
  • EN/IEC 60947-1
  • JIS C 852
  • EN/IEC 60947-5-4
  • JIS C8201-5-1
  • EN/IEC 60947-5-1
  • CSA C22.2 No. 14
  • JIS C8201-1

Selection Notes

The built-in transformer lets this blue pilot light connect straight to a 220...240 V AC control circuit without an external 24 V supply, which is the deciding factor over the direct-fed 9001KP35L series when the panel only distributes mains control voltage. The incandescent BA9s bulb is a wearing part and is replaceable from the front without removing the bezel. Choose this blue lens to keep the status colour consistent with the rest of the 9001K indicator set on the same panel.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 3

Range of Product Harmony 9001K
Product or Component Type Pilot light
Device short name 9001K

Complementary 25

Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Shape of signaling unit head Round
Lens type Domed plastic
Cap/operator or lens colour Blue
Light source incandescent
Bulb base BA 9s
Light block supply Via integral transformer 220...240 V AC 50/60 Hz 6 V)
Connections - terminals Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Tightening torque 7.08 lbf.in (0.8 N.m) IEC 60947-1
shape of screw head Cross slotted
Operating position Any position
[Ui] rated insulation voltage 250 V 2)IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV IEC 60947-1
Short-circuit protection 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current 10 A
CAD overall width 2.1 in (54 mm)
CAD overall height 2.8 in (70 mm)
CAD overall depth 1.7 in (42 mm)
[Us] rated supply voltage 220...240 V AC
Net Weight 0.46 lb(US) (0.21 kg)
Device presentation Complete product
Supply frequency 50...60 Hz
Lens material Polycarbonate
Size 30 mm

Environment 10

Standards CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C 852, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508, JIS C8201-1
Product Certifications UL 508, NEMA
Protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Overvoltage category Class II conforming to IEC 61140
IP Degree of Protection IP65/IP66
NEMA degree of protection NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number 9001KP7L9
Type designation 9001K
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 785901952985

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin MX
Shipping weight 0.21 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 9001KP7L9

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA C22.2 No 14
  • EN/IEC 60947-5-4
  • JIS C 852
  • JIS C8201-5-1
  • EN/IEC 60947-5-1
  • EN/IEC 60947-1
  • UL 508
  • JIS C8201-1
Quick answers

Questions about the 9001K

Which supply voltage is 9001K rated for?

The rated operational voltage of 9001K is 220–240 V AC.

What is the HS code of 9001K for customs?

The tariff (HS) code on file for 9001K is 853661.

What is the EAN of 9001K?

The EAN (GTIN) of 9001K is 785901952985.

Where does 9001K ship from, and how fast?

9001K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
