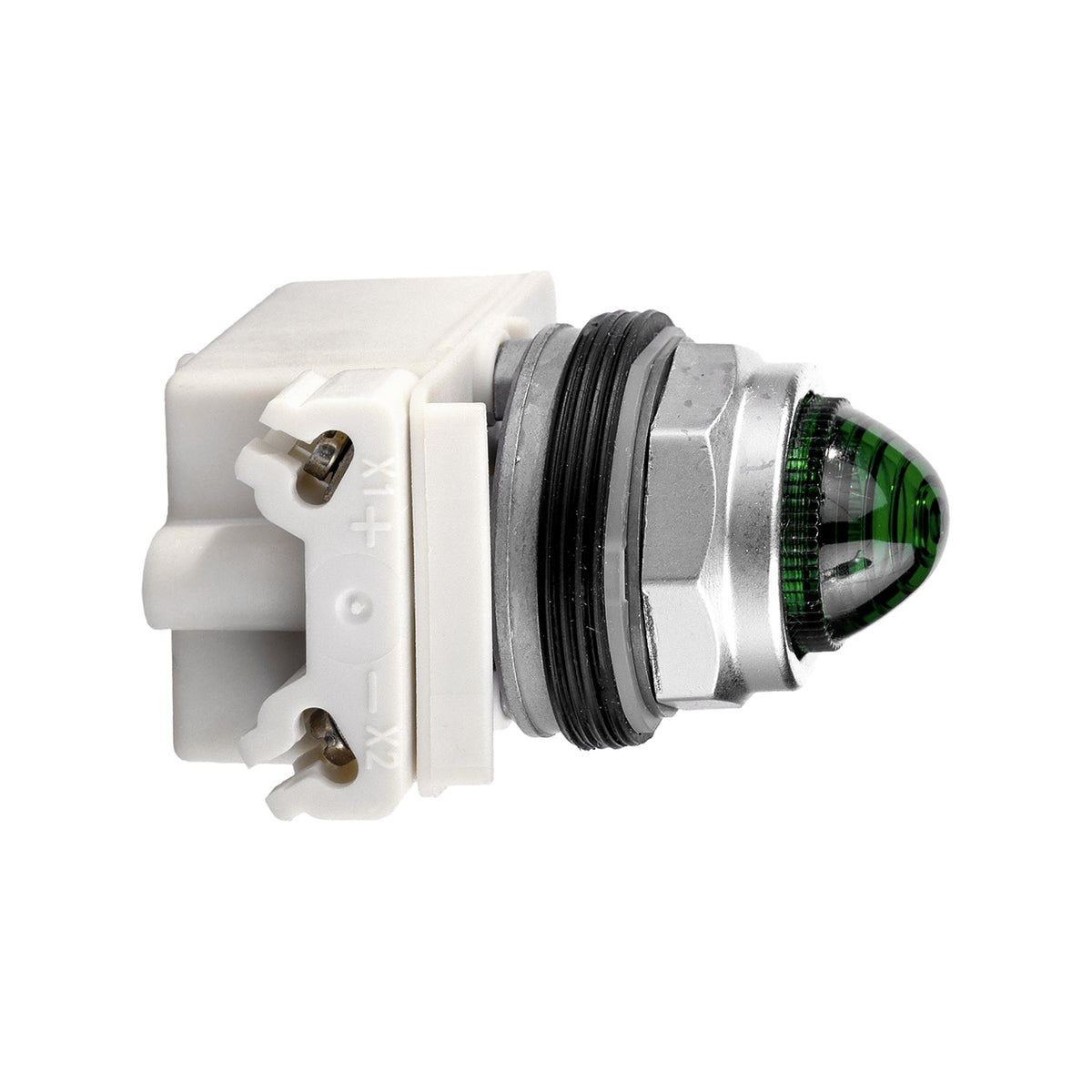

Schneider Electric 9001KP7G9 Harmony 9001K Pilot Light Metal Green 30 mm Transformer 220-240V AC Pilot Light

The Schneider Electric 9001KP7G9 is a green Harmony 9001K pilot light with an incandescent bulb fed through an integral step-down transformer from a 220...240 V AC, 50/60 Hz supply. It mounts in a standard 30 mm panel cut-out with a chromium-plated metal bezel and domed polycarbonate lens, giving an IP65/IP66-rated status indicator wired directly to mains control voltage.

Technical Specifications

Certifications & Standards

• NEMA
• UL 508
• EN/IEC 60947-1
• JIS C 852
• EN/IEC 60947-5-4
• JIS C8201-5-1
• EN/IEC 60947-5-1
• CSA C22.2 No. 14
• JIS C8201-1

Selection Notes

The built-in transformer lets this green pilot light connect straight to a 220...240 V AC control circuit without an external 24 V supply, which is the deciding factor over the direct-fed 9001KP35L series when the panel only distributes mains control voltage. The incandescent BA9s bulb is a wearing part and is replaceable from the front without removing the bezel. Choose this green lens to keep the status colour consistent with the rest of the 9001K indicator set on the same panel.
