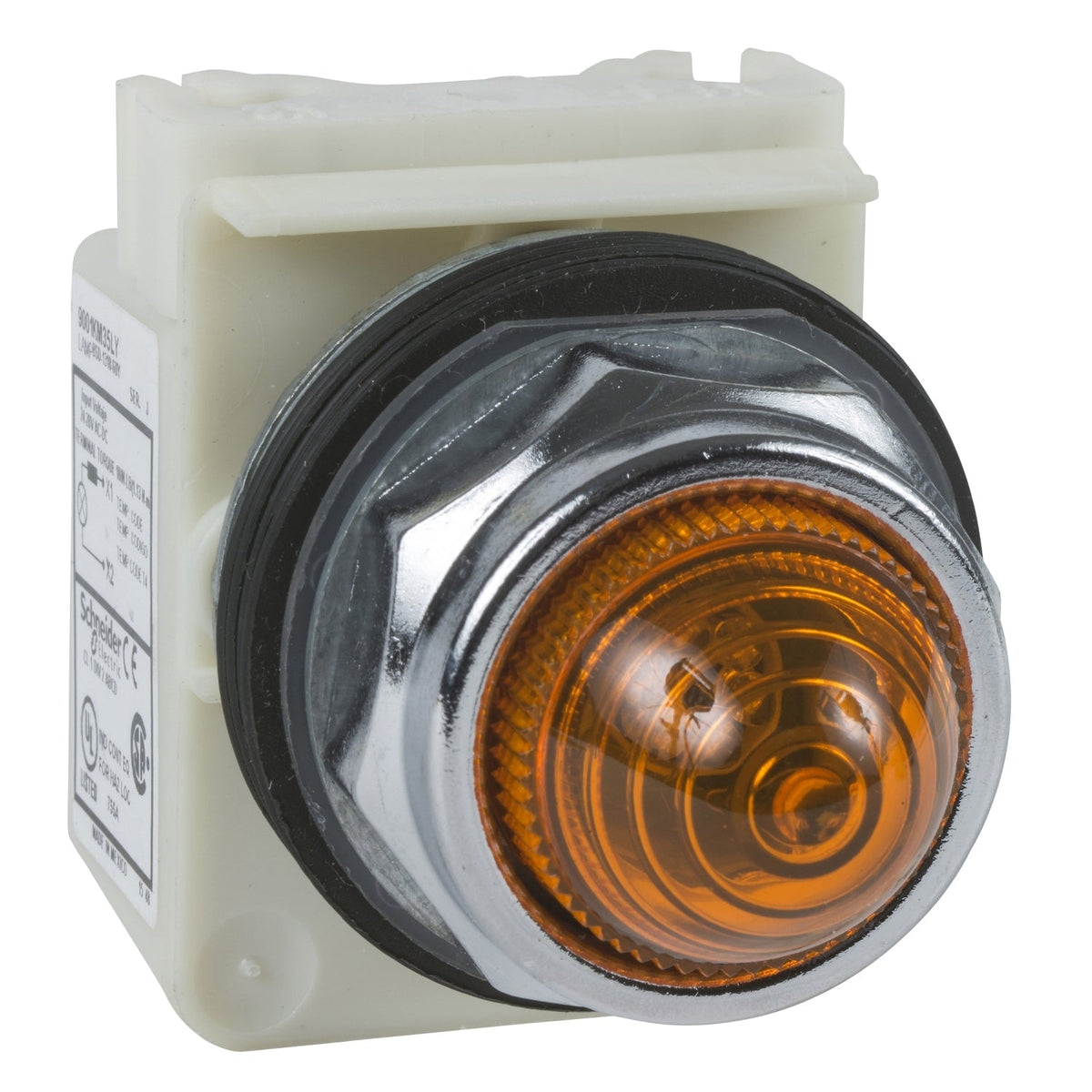

Schneider Electric 9001KP35LYA9 Harmony 9001K Pilot Light Metal Amber 30 mm LED 24-28V AC/DC Pilot Light

The Schneider Electric 9001KP35LYA9 is a amber Harmony 9001K pilot light with an integral LED supplied directly at 24...28 V AC/DC. It mounts in a standard 30 mm panel cut-out with a chromium-plated metal bezel and domed polycarbonate lens, giving an IP65/IP66-rated status indicator for low-voltage control circuits.

Technical Specifications

Certifications & Standards

• NEMA
• UL 508
• EN/IEC 60947-1
• JIS C 852
• EN/IEC 60947-5-4
• JIS C8201-5-1
• EN/IEC 60947-5-1
• CSA C22.2 No. 14
• JIS C8201-1

Selection Notes

The direct 24...28 V AC/DC LED supply removes the step-down transformer that the 220...240 V 9001KP7 pilot lights need, so this variant suits low-voltage (24 V) control panels wired straight from a PLC output or power supply. The amber lens keeps this status colour distinct from the other 9001K pilot-light colours sharing the same body and terminals. Its IP65/IP66 metal bezel makes it the choice over a plastic-bezel pilot light where the panel sees wash-down or heavy mechanical contact.
