- Part number
- 9001KP35LRR9
- Model no
- 9001K
Description
About the 9001K
About the 9001K

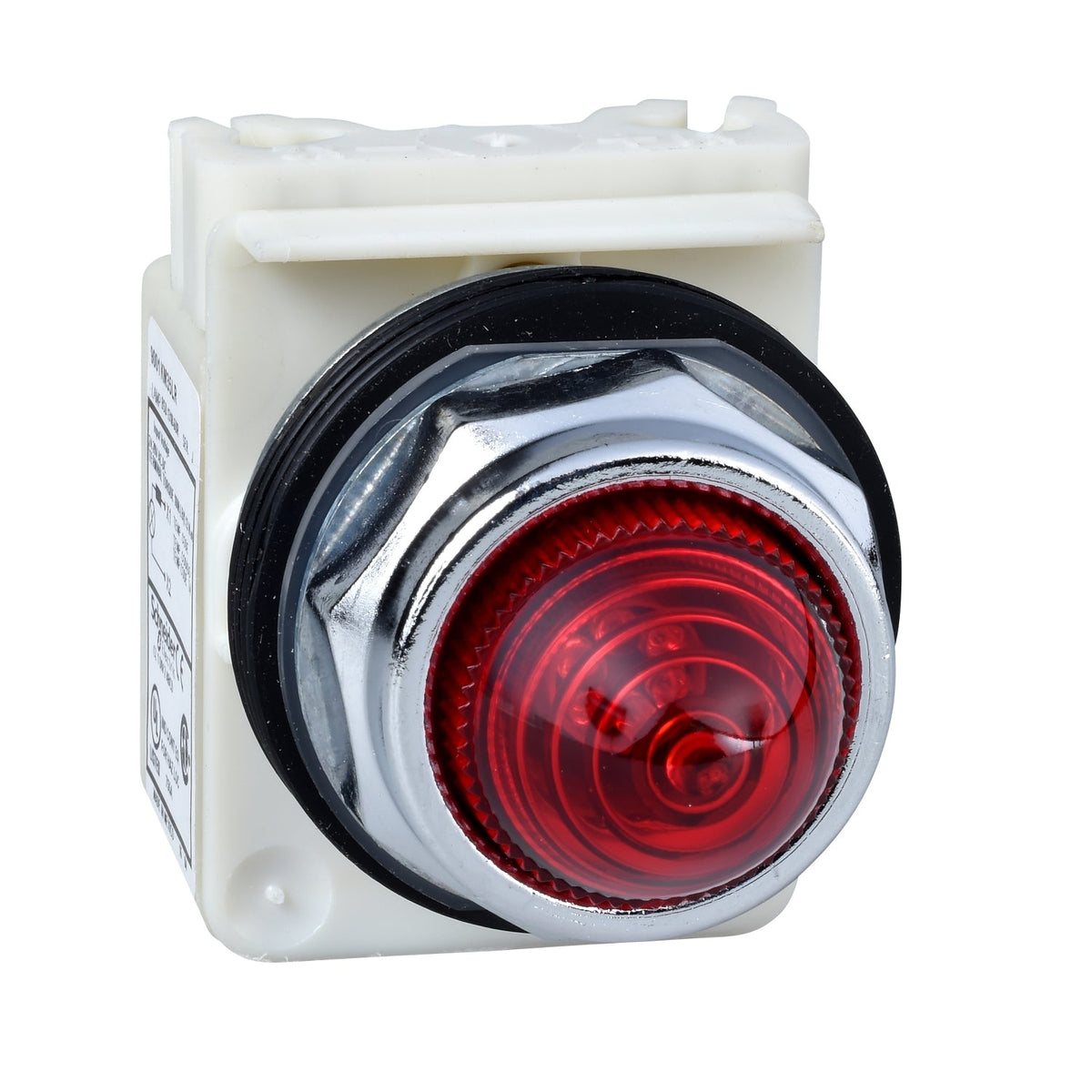

The Schneider Electric 9001KP35LRR9 is a red Harmony 9001K pilot light with an integral LED supplied directly at 24...28 V AC/DC. It mounts in a standard 30 mm panel cut-out with a chromium-plated metal bezel and domed polycarbonate lens, giving an IP65/IP66-rated status indicator for low-voltage control circuits.
Certifications & Standards
- NEMA
- UL 508
- EN/IEC 60947-1
- JIS C 852
- EN/IEC 60947-5-4
- JIS C8201-5-1
- EN/IEC 60947-5-1
- CSA C22.2 No. 14
- JIS C8201-1
Selection Notes
The direct 24...28 V AC/DC LED supply removes the step-down transformer that the 220...240 V 9001KP7 pilot lights need, so this variant suits low-voltage (24 V) control panels wired straight from a PLC output or power supply. The red lens keeps this status colour distinct from the other 9001K pilot-light colours sharing the same body and terminals. Its IP65/IP66 metal bezel makes it the choice over a plastic-bezel pilot light where the panel sees wash-down or heavy mechanical contact.
Specification
Full specification
Main 3
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Pilot light |
| Device short name | 9001K |
Complementary 25
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Shape of signaling unit head | Round |
| Lens type | Domed plastic |
| Cap/operator or lens colour | Red |
| Light source | Red LED |
| Bulb base | BA 9s |
| Light block supply | Direct 24...28 V AC/DC |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| shape of screw head | Cross slotted |
| Operating position | Any position |
| [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A |
| CAD overall width | 2.1 in (54 mm) |
| CAD overall height | 2.8 in (70 mm) |
| CAD overall depth | 1.7 in (42 mm) |
| [Us] rated supply voltage | 24...28 V AC/DC |
| Net Weight | 0.295 lb(US) (0.134 kg) |
| Device presentation | Complete product |
| Light source colour | Red |
| Lens material | Polycarbonate |
| Size | 30 mm |
Environment 10
| Standards | JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-1 |
|---|---|
| Product Certifications | NEMA, UL 508 |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP Degree of Protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6 |
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | 9001KP35LRR9 |
|---|---|
| Type designation | 9001K |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 785901421658 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | MX |
|---|---|
| Shipping weight | 0.134 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 9001KP35LRR9
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- JIS C8201-5-1
- EN/IEC 60947-5-1
- CSA C22.2 No 14
- JIS C 852
- UL 508
- EN/IEC 60947-5-4
- EN/IEC 60947-1
- JIS C8201-1
Quick answers
Questions about the 9001K
Which supply voltage is 9001K rated for?
The rated operational voltage of 9001K is 24–28–DC V DC.
What is the HS code of 9001K for customs?
The tariff (HS) code on file for 9001K is 853661.
What is the EAN of 9001K?
The EAN (GTIN) of 9001K is 785901421658.
Where does 9001K ship from, and how fast?
9001K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
