Part number
9001KA1
Model no
9001K
$20.87 On request Dispatch — · From TürkiyeGet a Quote
Harmony 9001K | Harmony 9001SK

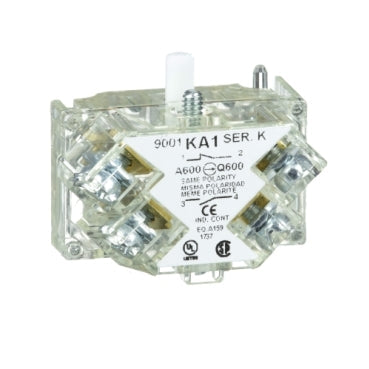

Schneider Electric 9001KA1 Harmony 9001K 1 NO 1 NC Auxiliary Contact Block

Harmony 9001K contact block, 1 C/O (1 NO + 1 NC), 3 A 240 V AC-15, screw-clamp terminals.

Poles
2P
EAN
785901880004
Description

About the 9001K

The Schneider Electric 9001KA1 is a contact block for the Harmony 9001K and 9001SK pushbutton range, adding 1 C/O (1 NC + 1 NO) contacts rated 3 A at 240 V AC-15. It mounts behind the operator head on 30 mm cutout stations and uses screw-clamp terminals rated up to 2.5 mm2, giving a 10 A conventional free-air thermal current and a 600 V rated insulation voltage.

Certifications & Standards

  • NEMA
  • UL 508
  • IEC 60947-5-1
  • JIS C 4520
  • IEC 60947-1
  • JIS C 852
  • CSA C22.2 No 14
  • IEC 60947-5-4
  • UL 60947-5-1

Selection Notes

The 9001KA1 is a single-contact add-on block for Harmony 9001K/9001SK pushbutton and selector operators, giving one changeover contact (1 NC + 1 NO) for pilot-duty and relay-coil switching at 3 A / 240 V AC-15 or 0.55 A / 125 V DC-13. It ships without positive opening, so it suits general control logic rather than safety-interlock circuits that require a certified positive-break NC contact. Screw-clamp terminals accept 0.22-2.5 mm2 conductors, matching the wiring range used across the 9001K contact-block series, so it stacks directly onto an existing operator body without changing termination hardware.

Applications

Adds a changeover contact to Harmony 9001K and 9001SK 30 mm pushbutton and selector-switch stations for indicator lamps, relay coils, or interlocking circuits in general machine-control panels and operator stations.

Specification

Full specification

41 values · Last verified 30 Oct 2026

Main 4

Range of Product Harmony 9001K, Harmony 9001SK
Product or Component Type Contact block
Device short name 9001K
Contacts type and composition 1 C/O

Complementary 15

Net Weight 0.060 lb(US) (0.027 kg)
Contact operation Positive opening
Positive opening Without
Connections - terminals Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
Tightening torque 7.08 lbf.in (0.8 N.m) IEC 60947-1
Shape of screw head Cross slotted
Contacts material Silver alloy contacts
Short-circuit protection 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current 10 A
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
[Icm] rated short-circuit making capacity 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 7200 VA, 0.27 kA 250 V DC-13, 7200 VA, 0.55 kA 125 V DC-13
Rated breaking capacity 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
[Us] rated supply voltage 0...600 V

Environment 8

Protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Electrical shock protection class Class II conforming to IEC 61140
Standards IEC 60947-5-1, JIS C 4520, UL 508, IEC 60947-1, JIS C 852, CSA C22.2 No 14, IEC 60947-5-4, UL 60947-5-1
Product Certifications NEMA, UL 508
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Show all 41 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number 9001KA1
Type designation 9001K
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 785901880004

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin MX
Shipping weight 0.027 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 9001KA1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • IEC 60947-5-1
  • JIS C 4520
  • UL 508
  • IEC 60947-1
  • JIS C 852
  • CSA C22.2 No 14
  • IEC 60947-5-4
  • UL 60947-5-1
Quick answers

Questions about the 9001K

What is the HS code of 9001K for customs?

The tariff (HS) code on file for 9001K is 85369001.

What is the EAN of 9001K?

The EAN (GTIN) of 9001K is 785901880004.

Where does 9001K ship from, and how fast?

9001K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
