- Part number
- 83858
- Model no
- Mureva plug
Description
About the Mureva plug
About the Mureva plug

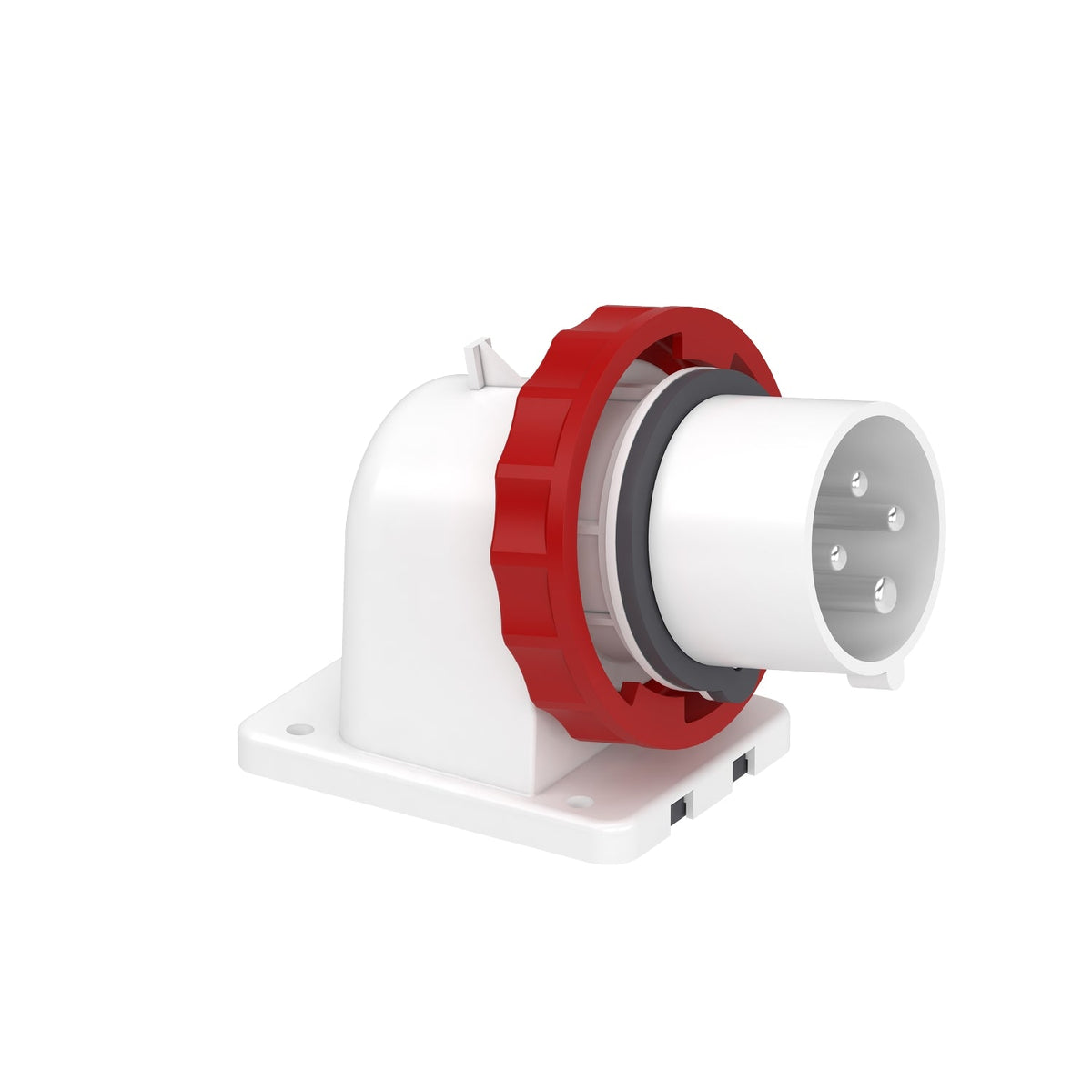

The Schneider Electric 83858 is a Mureva PK industrial plug rated 16 A for 3P+E networks at 380-415 V AC, 50/60 Hz. It is panel-mounted with a angled body, reaching IP67 (IK08) protection with a 850 C fire resistance rating, a grey (ral 7035) housing and a red voltage-identification ring for quick on-site recognition.
Certifications & Standards
- EN 60309-1
- EN 60309-2
Selection Notes
Select the 83858 when the downstream load matches its 16 A rating and 3P+E configuration; its 3P+E configuration suits three-phase loads such as motors that do not require a neutral conductor. The panel mounting and angled body set how it sits relative to the enclosure, and IP67 adds temporary-immersion protection suited to construction sites, agricultural installations and other wet or outdoor locations.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 17
| Mounting mode | Panel-mounted |
|---|---|
| Plug, socket, control station shape | 90° angled |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Net weight | 0.177 kg |
| Base dimension | 65 x 85 mm |
| Height | 124 mm |
| Width | 65 mm |
| Depth | 92 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 7
| Standards | EN 60309-2, EN 60309-1 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | 83858 |
|---|---|
| Type designation | Mureva plug |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 161.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15.500 cm |
| Package 2 Width | 27.000 cm |
| Package 2 Length | 22.000 cm |
| Package 2 Weight | 1.783 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.053 kg |
| Shipping weight | 0.177 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 83858
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EN 60309-2
- EN 60309-1
Quick answers
Questions about the Mureva plug
What is the rated current of Mureva plug?
The rated current of Mureva plug is 16 A.
Which supply voltage is Mureva plug rated for?
The rated operational voltage of Mureva plug is 380–415 V AC.
What is the HS code of Mureva plug for customs?
The tariff (HS) code on file for Mureva plug is 853669.
Where does Mureva plug ship from, and how fast?
Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
