- Part number
- 83571
- Model no
- Mureva plug
Description
About the Mureva plug
About the Mureva plug

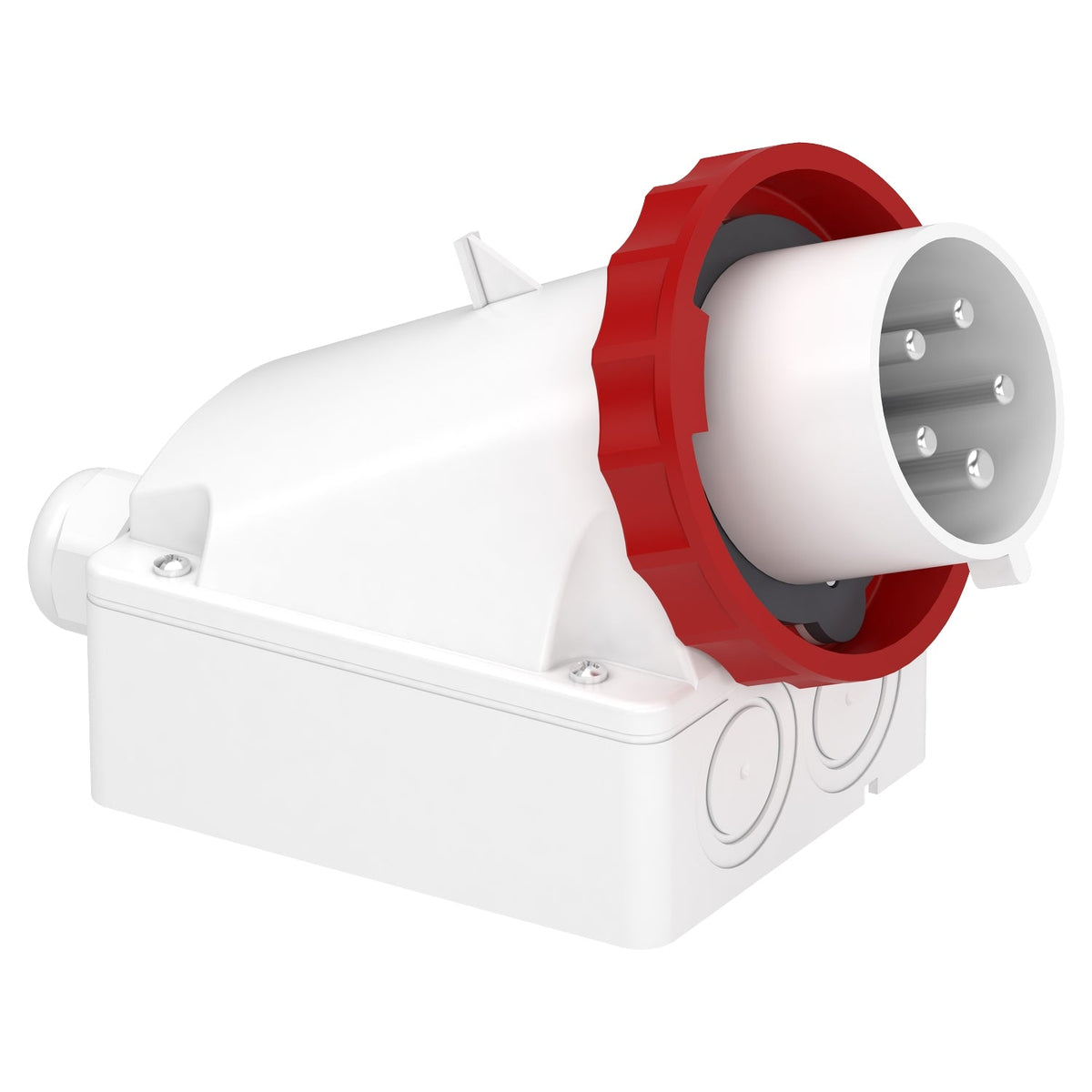

The Schneider Electric 83571 is a Mureva PK industrial plug rated 32 A for 3P+N+E networks at 380-415 V AC, 50/60 Hz. It is wall-mounted with its own back box with a angled body, reaching IP67 (IK08) protection with a 850 C fire resistance rating, a grey (ral 7035) housing and a red voltage-identification ring for quick on-site recognition.
Certifications & Standards
- EN 60309-1
- EN 60309-2
Selection Notes
Select the 83571 when the downstream load matches its 32 A rating and 3P+N+E configuration; its 3P+N+E configuration carries a neutral alongside the three phases for mixed three-phase and single-phase loads on the same circuit. The wall mounting with its own back box and angled body set how it sits relative to the enclosure, and IP67 adds temporary-immersion protection suited to construction sites, agricultural installations and other wet or outdoor locations.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 19
| Mounting mode | Wall-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| cable entry | Cable gland |
| Thread type | Pg 21 |
| Net weight | 0.523 kg |
| Base dimension | 106 x 130 mm |
| Height | 140 mm |
| Width | 106 mm |
| Depth | 179 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 7
| Standards | EN 60309-1, EN 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 63 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | 83571 |
|---|---|
| Type designation | Mureva plug |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.000 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 455.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 12.000 cm |
| Package 2 Width | 27.000 cm |
| Package 2 Length | 22.000 cm |
| Package 2 Weight | 1.019 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 6 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.544 kg |
| Shipping weight | 0.523 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 83571
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EN 60309-1
- EN 60309-2
Quick answers
Questions about the Mureva plug
What is the rated current of Mureva plug?
The rated current of Mureva plug is 32 A.
Which supply voltage is Mureva plug rated for?
The rated operational voltage of Mureva plug is 380–415 V AC.
What is the HS code of Mureva plug for customs?
The tariff (HS) code on file for Mureva plug is 853669.
Where does Mureva plug ship from, and how fast?
Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
