Schneider Electric 83566 PratiKa Industrial Plug Angled - 32 A 2P+E

Schneider Electric 83566 PratiKa Angled Wall Plug 32 A 2P+E 200-250 V IP67 Industrial Plug

Name: Schneider Electric 83566 PratiKa Angled Wall Plug 32 A 2P+E 200-250 V IP67 Industrial Plug
Brand: Schneider Electric
SKU: 83566
Price: 30.94 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: 83566

Catalog No: 83566

Tariff Code (HS): 853669

Rated Current: 32 A

Rated Voltage: 200-250 V

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$30.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

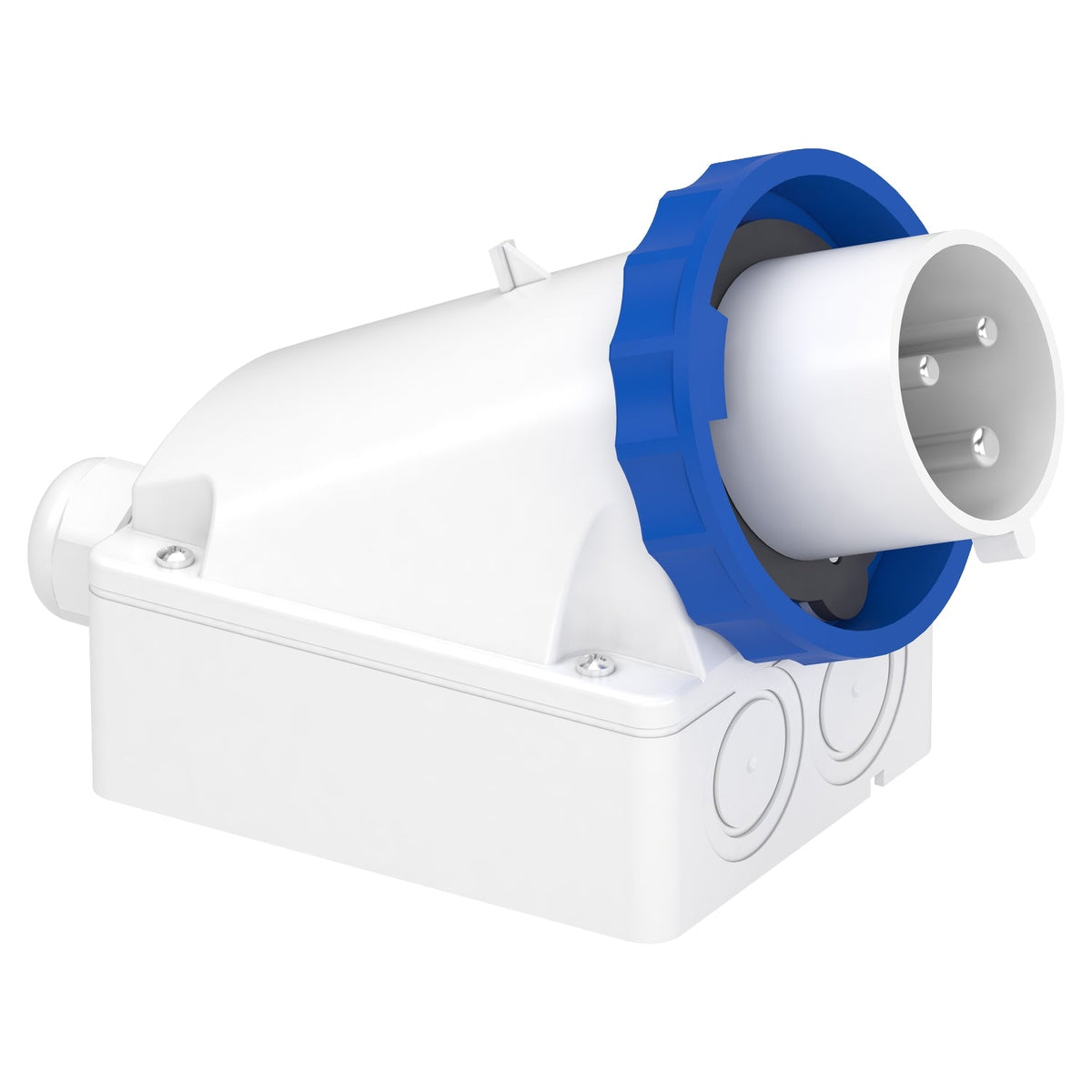

The Schneider Electric 83566 is a PratiKa industrial plug rated 32 A for 2P+E networks at 200-250 V AC, 50/60 Hz. It is wall-mounted with its own back box with a angled body, reaching IP67 (IK08) protection with a 850 C fire resistance rating, a grey (ral 7035) housing and a blue voltage-identification ring for quick on-site recognition.

Technical Specifications

Reference	83566
Brand	Schneider Electric
Range	PratiKa
Product type	Plug
Poles	2P+E
Rated current (In)	32 A
Rated operational voltage (Ue)	200-250 V AC
Network frequency	50/60 Hz
Clock position	6 h
Connections / terminals	Captive screws
Cable cross section	2.5-10 mm2
Thread type	Pg 21
Material	Self-extinguishing engineering polymer, nickel-plated brass pins
Colour	Grey (RAL 7035)
Voltage colour	Blue
IP degree of protection	IP67 (IEC 60529)
IK degree of protection	IK08 (EN 62262)
Fire resistance	850 C
Operating temperature	-25 to 40 C
Base dimensions	106 x 130 mm
Height x Width x Depth	136 x 106 x 178 mm
Net weight	0.479 kg

Certifications & Standards

EN 60309-1
EN 60309-2

Selection Notes

Select the 83566 when the downstream load matches its 32 A rating and 2P+E configuration; its 2P+E configuration suits single-phase 230 V loads where only line, neutral-as-line and earth are needed. The wall mounting with its own back box and angled body set how it sits relative to the enclosure, and IP67 adds temporary-immersion protection suited to construction sites, agricultural installations and other wet or outdoor locations.

Technical Details

Short Description

PratiKa plug, 32 A, 2P+E, 200-250 V AC, IP67.

Rated Current (Ampere)

32 A

Rated Voltage (VAC)

200-250 V

Mounting Type

Wall-mounted

Protection Type

IP67

Catalog No

83566

Delivery Date (Days)

30 days

Model Number

PratiKa

Tariff Code

853669
