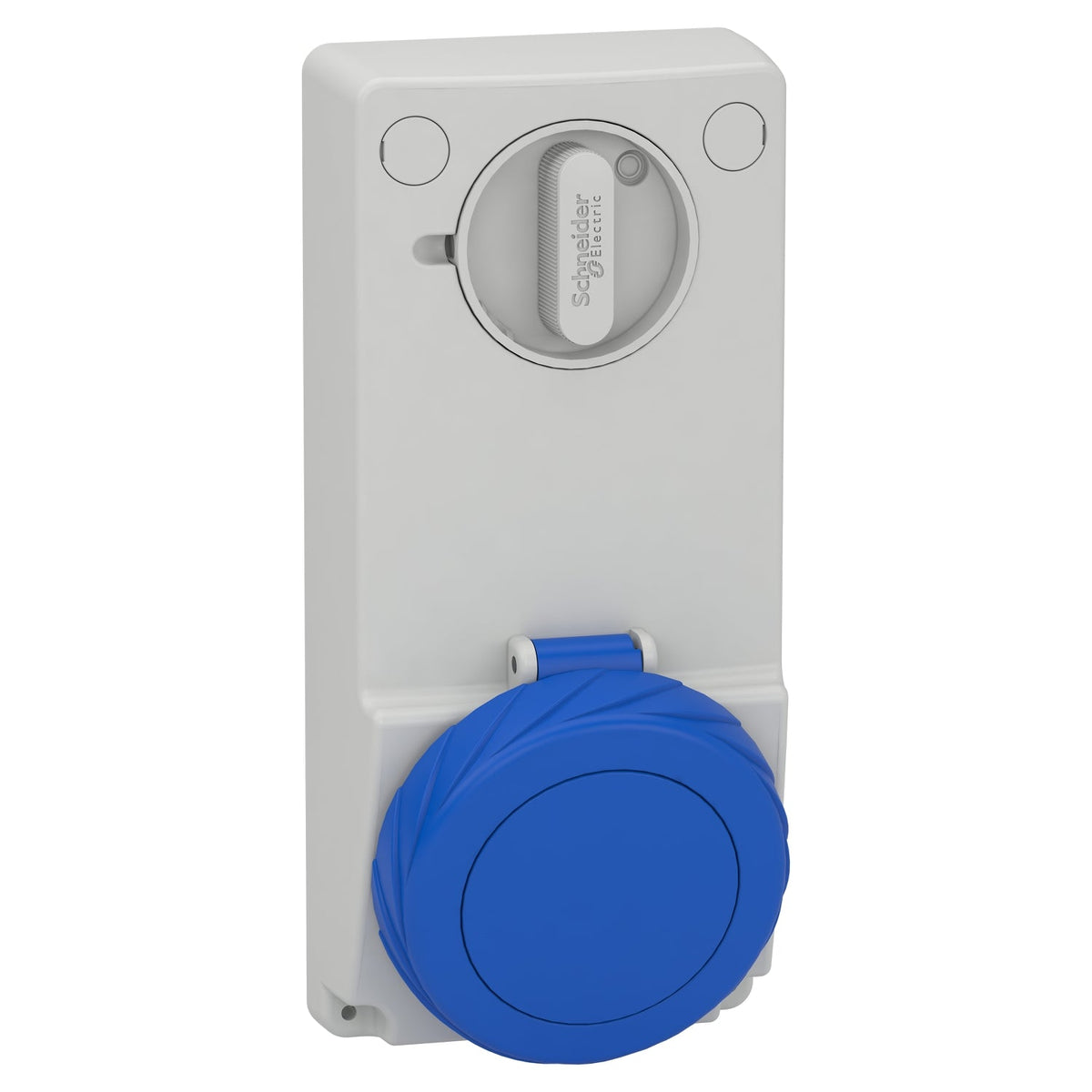

Schneider Electric 82092 Unika Interlocked Panel Socket 32 A 2P+E 200-250 V IP65 Industrial Socket

The Schneider Electric 82092 is a Unika interlocked industrial socket rated 32 A for 2P+E networks at 200-250 V AC, 50/60 Hz. Its mechanical interlock blocks the plug from being inserted or withdrawn while the integral switch is live, and it is panel-mounted with IP65 (IK09) protection, a 750 C fire resistance rating and a blue voltage-identification ring on its grey (ral 7035) housing.

Technical Specifications

Certifications & Standards

• IEC 60309-1
• IEC 60309-2

Selection Notes

Choose the 82092 over a straight (non-interlocked) socket of the same rating when the circuit must be de-energised before the plug can be removed; its 2P+E configuration suits single-phase 230 V loads where only line, neutral-as-line and earth are needed. IP65 adds dust-tight sealing and protection against water jets for washdown or semi-exposed areas, and the panel mounting keeps the 32 A rating consistent with the captive-screw terminal sizing listed above.
