Part number
82031
Model no
Mureva socket
$66.79 On request Dispatch — · From TürkiyeGet a Quote

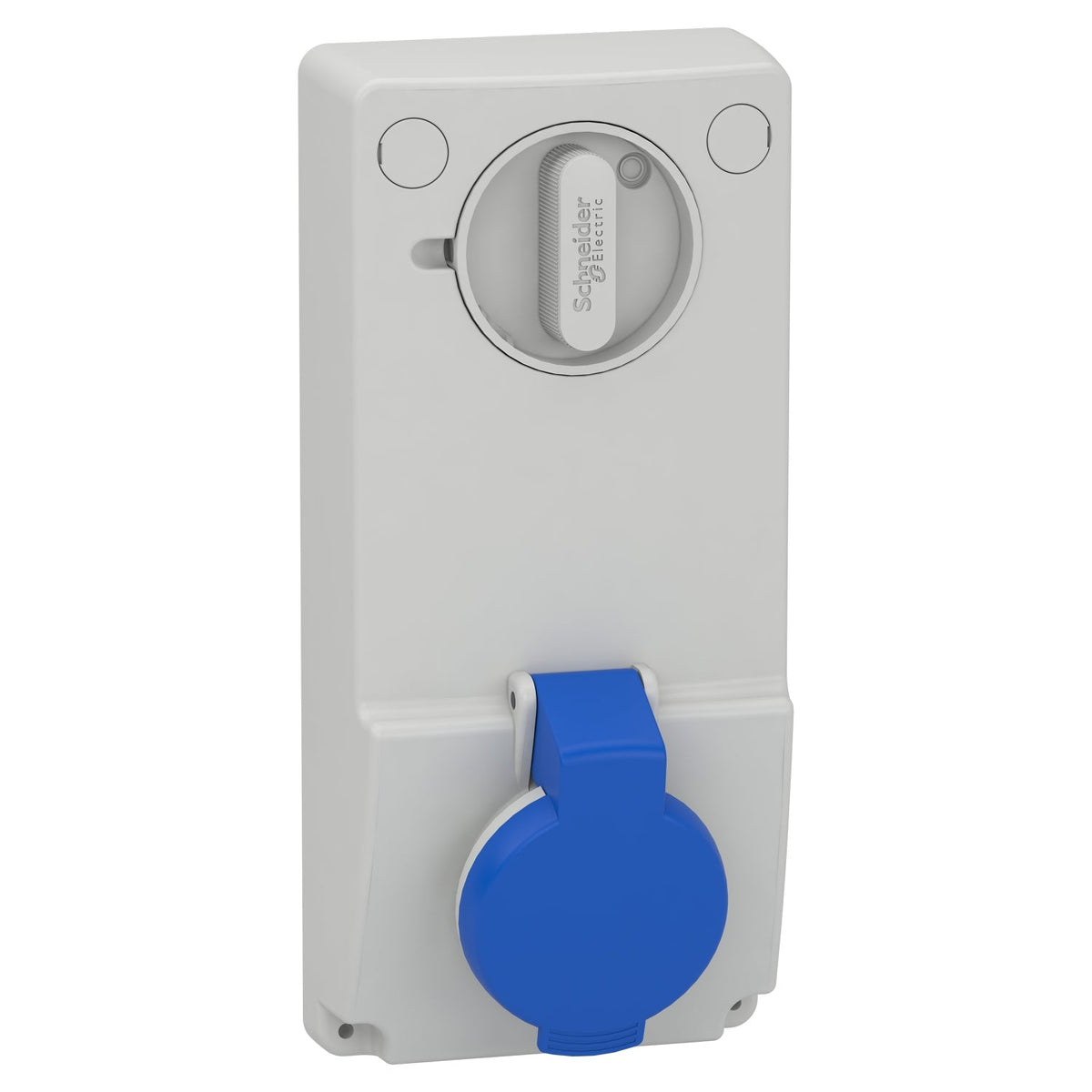

Schneider Electric 82031 Unika Interlocked Panel Socket 16 A 2P+E 200-250 V IP44 Industrial Socket

Unika interlocked socket, 16 A, 2P+E, 200-250 V AC, IP44.

Rated current
16 A
Rated operational voltage
200–250 V AC
Description

About the Mureva socket

The Schneider Electric 82031 is a Unika interlocked industrial socket rated 16 A for 2P+E networks at 200-250 V AC, 50/60 Hz. Its mechanical interlock blocks the plug from being inserted or withdrawn while the integral switch is live, and it is panel-mounted with IP44 (IK09) protection, a 750 C fire resistance rating and a blue voltage-identification ring on its grey (ral 7035) housing.

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

Choose the 82031 over a straight (non-interlocked) socket of the same rating when the circuit must be de-energised before the plug can be removed; its 2P+E configuration suits single-phase 230 V loads where only line, neutral-as-line and earth are needed. IP44 covers splash protection for sheltered indoor or covered outdoor panel locations, and the panel mounting keeps the 16 A rating consistent with the captive-screw terminal sizing listed above.

Specification

Full specification

57 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Interlocked socket
Device short name Mureva socket
Plug, socket category Low voltage
Poles description 2P + E
Network type AC
Outlet standard Industrial

Complementary 20

Mounting mode Panel-mounted
[In] rated current 16 A
[Ue] rated operational voltage 200...250 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Protection type Without protection
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: nickel plated brass
Connections - terminals Captive screws
Maximum cable cross section 10 mm²
Maximum cable outer diameter 25 mm
cable entry Cable gland
Thread type Pg 21
Net weight 0.608 kg
Base dimension 103 x 225 mm
Height 225 mm
Width 103 mm
Depth 127 mm
Colour Grey (RAL 7035)
Voltage colour Blue

Environment 6

Standards IEC 60309-1, IEC 60309-2
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK09 conforming to EN 62262
Fire resistance 750 °C conforming to IEC 60695-2-11
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Ambient air temperature for operation 35 °C ( 86400 s ), -25…40 °C
Show all 57 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number 82031
Type designation Mureva socket
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 10.800 cm
Package 1 Length 23.800 cm
Package 1 Weight 635.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 5
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.663 kg
Shipping weight 0.608 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 82031

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60309-1
  • IEC 60309-2
Quick answers

Questions about the Mureva socket

What is the rated current of Mureva socket?

The rated current of Mureva socket is 16 A.

Which supply voltage is Mureva socket rated for?

The rated operational voltage of Mureva socket is 200–250 V AC.

What is the HS code of Mureva socket for customs?

The tariff (HS) code on file for Mureva socket is 853669.

Where does Mureva socket ship from, and how fast?

Mureva socket ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
