Part number
81895
Model no
panel mounted plugs
$101.83 On request Dispatch — · From TürkiyeGet a Quote

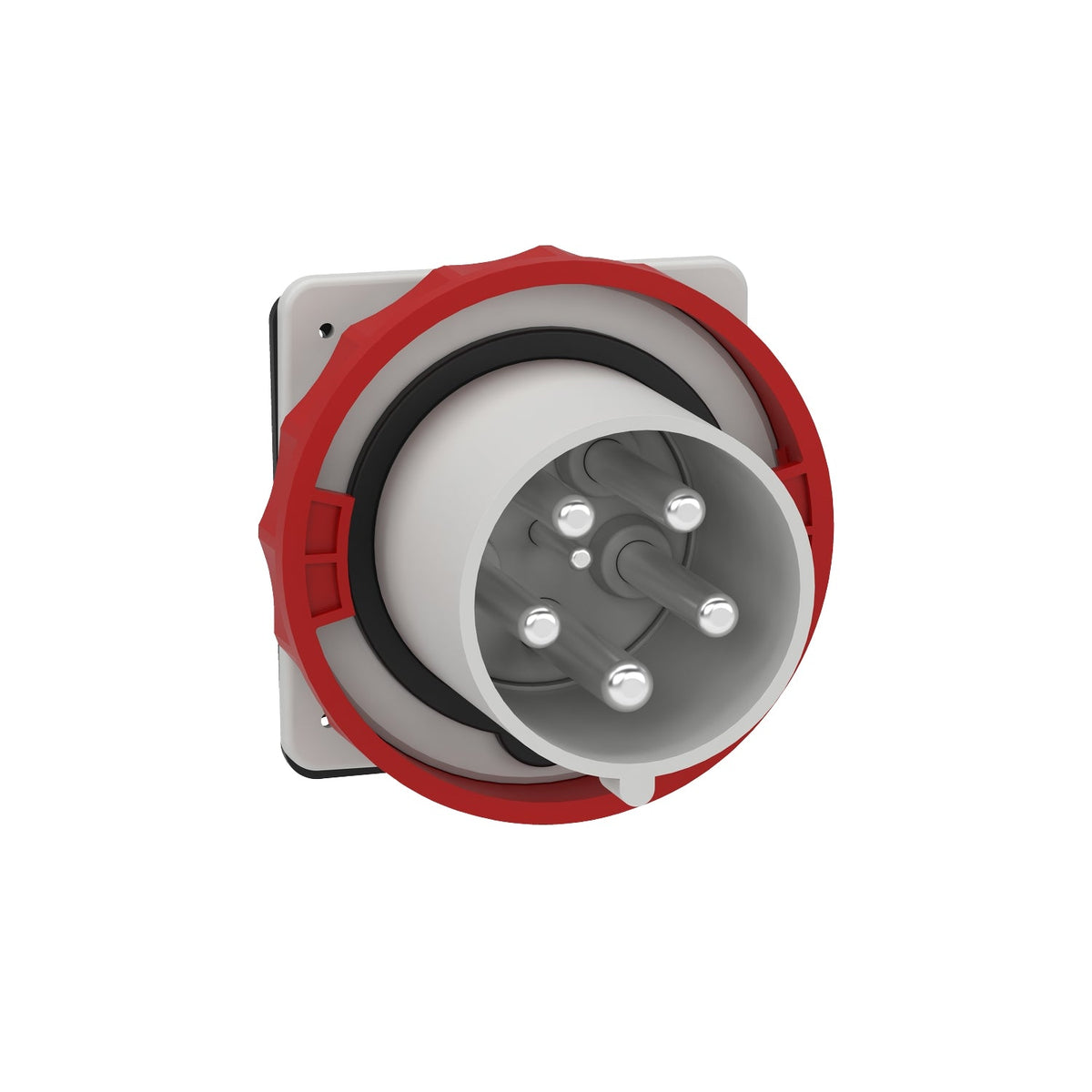

Schneider Electric 81895 Mureva PK Straight Panel Plug 125 A 3P+N+E 380-415 V IP67 Industrial Plug

Mureva PK plug, 125 A, 3P+N+E, 380-415 V AC, IP67.

Rated current
125 A
Rated operational voltage
380–415 V AC
Description

About the panel mounted plugs

The Schneider Electric 81895 is a Mureva PK industrial plug rated 125 A for 3P+N+E networks at 380-415 V AC, 50/60 Hz. It is panel-mounted with a straight body, reaching IP67 (IK08) protection with a 850 C fire resistance rating, a grey (ral 7035) housing and a red voltage-identification ring for quick on-site recognition.

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

Select the 81895 when the downstream load matches its 125 A rating and 3P+N+E configuration; its 3P+N+E configuration carries a neutral alongside the three phases for mixed three-phase and single-phase loads on the same circuit. The panel mounting and straight body set how it sits relative to the enclosure, and IP67 adds temporary-immersion protection suited to construction sites, agricultural installations and other wet or outdoor locations.

Specification

Full specification

50 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Plug
Device short name panel mounted plugs
Plug, socket category Low voltage
Poles description 3P + N + E
Network type AC
Outlet standard Industrial

Complementary 18

Mounting mode Panel-mounted
Plug, socket, control station shape Straight
[In] rated current 125 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing polymer
Contacts material Pins: nickel plated brass
Connections - terminals Captive screws
Cable cross section 16…70 mm²
Thread type Pg 48
Net weight 1.5 kg
Base dimension 110 x 114 mm
Height 325 mm
Width 131 mm
Depth 131 mm
Colour Grey (RAL 7035)
Voltage colour Red

Environment 7

Standards IEC 60309-1, IEC 60309-2
IP degree of protection IP67 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Operating altitude 2000 m
Ambient air temperature for operation 35 °C ( 86400 s ), -25…40 °C
Show all 50 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number 81895
Type designation panel mounted plugs
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.4 cm
Package 1 Width 12.9 cm
Package 1 Length 12.9 cm
Package 1 Weight 1.225 kg
Shipping weight 1.5 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 81895

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60309-1
  • IEC 60309-2
Quick answers

Questions about the panel mounted plugs

What is the rated current of panel mounted plugs?

The rated current of panel mounted plugs is 125 A.

Which supply voltage is panel mounted plugs rated for?

The rated operational voltage of panel mounted plugs is 380–415 V AC.

What is the HS code of panel mounted plugs for customs?

The tariff (HS) code on file for panel mounted plugs is 853669.

Where does panel mounted plugs ship from, and how fast?

panel mounted plugs ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
