- Part number
- 81894
- Model no
- panel mounted plugs
Description
About the panel mounted plugs
About the panel mounted plugs

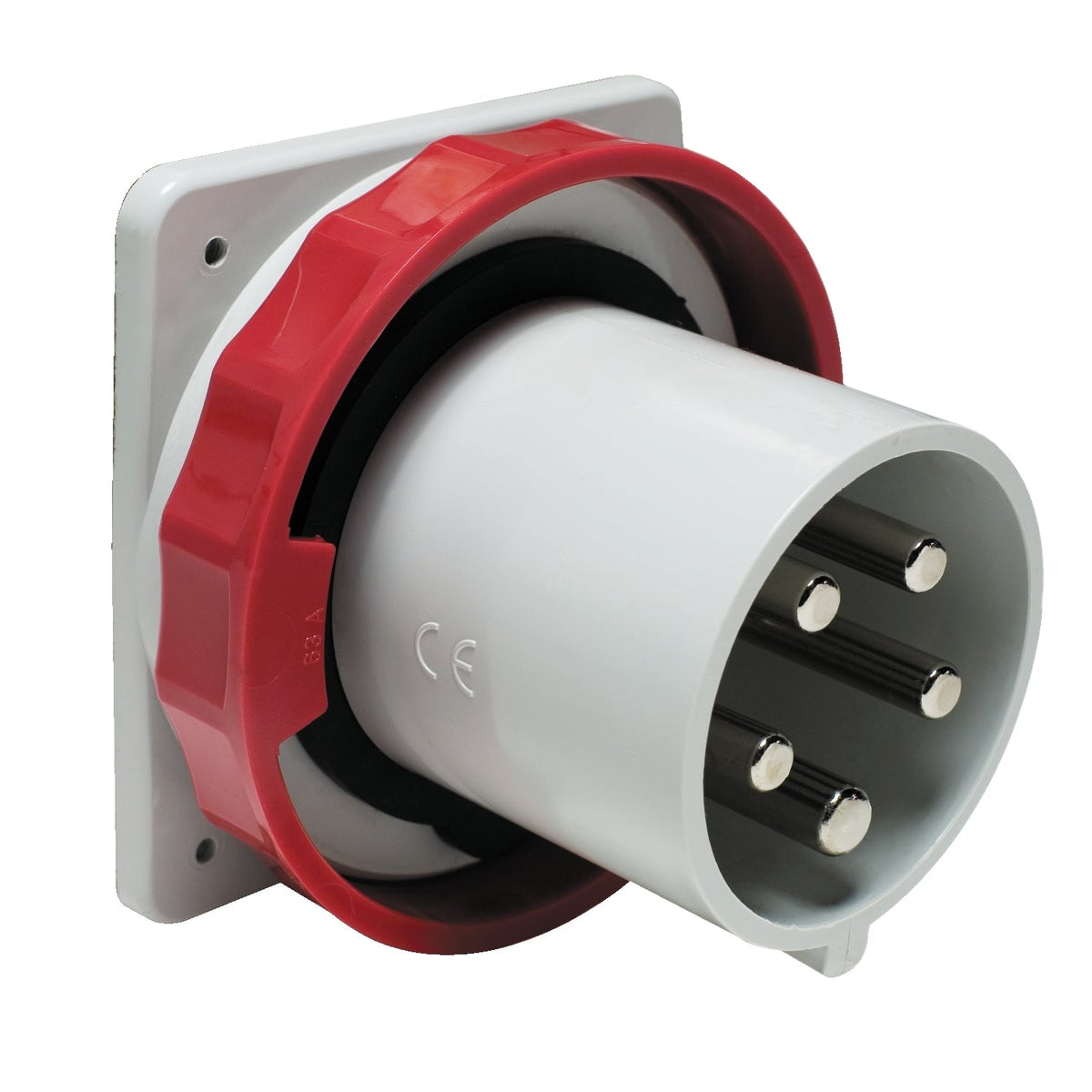

The Schneider Electric 81894 is a Mureva PK industrial plug rated 125 A for 3P+E networks at 380-415 V AC, 50/60 Hz. It is panel-mounted with a straight body, reaching IP67 (IK08) protection with a 850 C fire resistance rating, a grey (ral 7035) housing and a red voltage-identification ring for quick on-site recognition.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
Select the 81894 when the downstream load matches its 125 A rating and 3P+E configuration; its 3P+E configuration suits three-phase loads such as motors that do not require a neutral conductor. The panel mounting and straight body set how it sits relative to the enclosure, and IP67 adds temporary-immersion protection suited to construction sites, agricultural installations and other wet or outdoor locations.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Plug |
| Device short name | panel mounted plugs |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Mounting mode | Panel-mounted |
|---|---|
| Plug, socket, control station shape | Straight |
| [In] rated current | 125 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 16…70 mm² |
| Thread type | Pg 48 |
| Net weight | 1.5 kg |
| Base dimension | 110 x 114 mm |
| Height | 325 mm |
| Width | 131 mm |
| Depth | 131 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 7
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 62 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | 81894 |
|---|---|
| Type designation | panel mounted plugs |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 14.000 cm |
| Package 1 Weight | 997.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.374 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 94.992 kg |
| Shipping weight | 1.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 81894
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the panel mounted plugs
What is the rated current of panel mounted plugs?
The rated current of panel mounted plugs is 125 A.
Which supply voltage is panel mounted plugs rated for?
The rated operational voltage of panel mounted plugs is 380–415 V AC.
What is the HS code of panel mounted plugs for customs?
The tariff (HS) code on file for panel mounted plugs is 853669.
Where does panel mounted plugs ship from, and how fast?
panel mounted plugs ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
