Part number
81883
Model no
panel mounted plugs
$79.82 On request Dispatch — · From TürkiyeGet a Quote

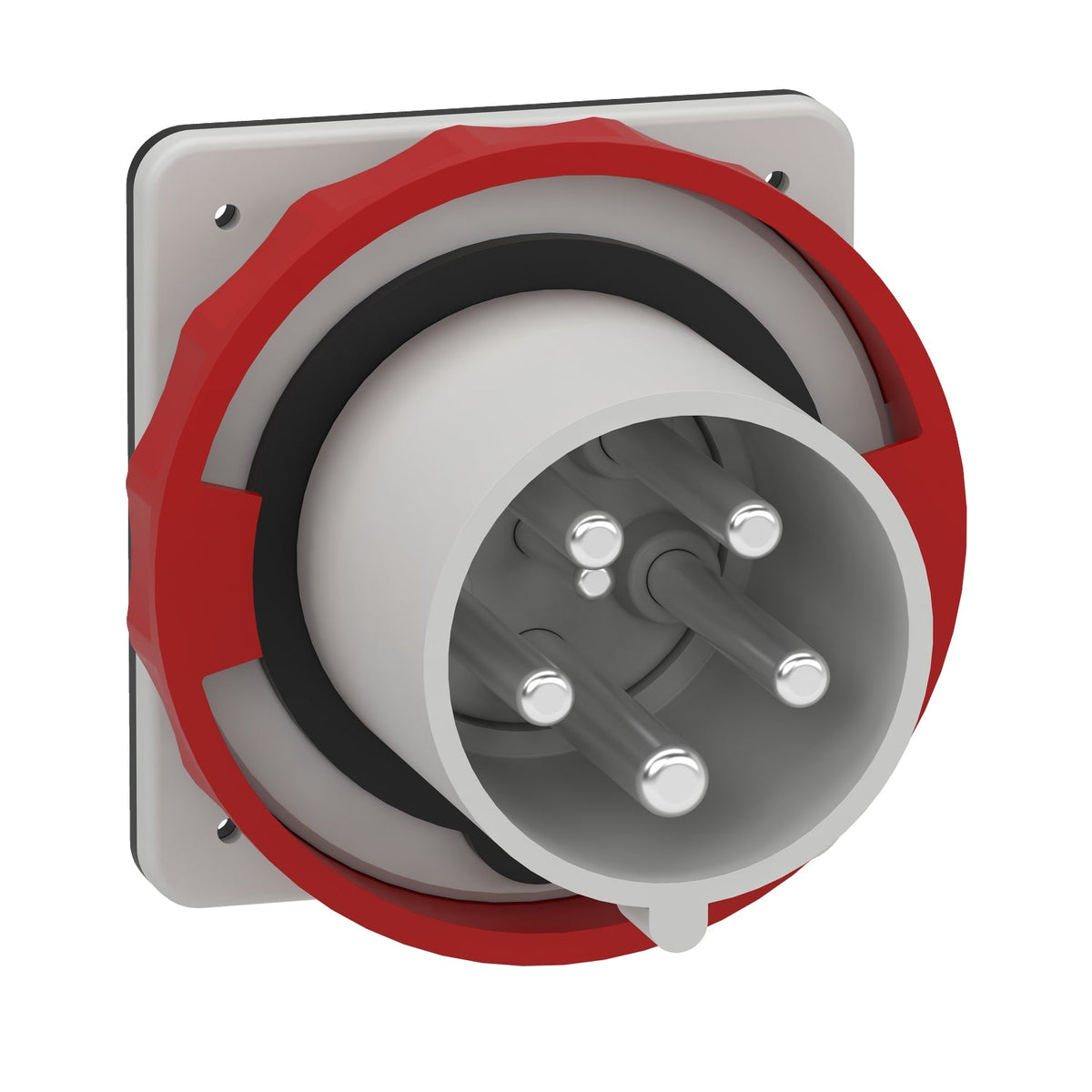

Schneider Electric 81883 Mureva PK Straight Panel Plug 63 A 3P+N+E 380-415 V IP67 Industrial Plug

Mureva PK plug, 63 A, 3P+N+E, 380-415 V AC, IP67.

Rated current
63 A
Rated operational voltage
380–415 V AC
Description

About the panel mounted plugs

The Schneider Electric 81883 is a Mureva PK industrial plug rated 63 A for 3P+N+E networks at 380-415 V AC, 50/60 Hz. It is panel-mounted with a straight body, reaching IP67 (IK08) protection with a 850 C fire resistance rating, a grey (ral 7035) housing and a red voltage-identification ring for quick on-site recognition.

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

Select the 81883 when the downstream load matches its 63 A rating and 3P+N+E configuration; its 3P+N+E configuration carries a neutral alongside the three phases for mixed three-phase and single-phase loads on the same circuit. The panel mounting and straight body set how it sits relative to the enclosure, and IP67 adds temporary-immersion protection suited to construction sites, agricultural installations and other wet or outdoor locations.

Specification

Full specification

56 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Plug
Device short name panel mounted plugs
Plug, socket category Low voltage
Poles description 3P + N + E
Network type AC
Outlet standard Industrial

Complementary 18

Mounting mode Panel-mounted
Plug, socket, control station shape Straight
[In] rated current 63 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing polymer
Contacts material Pins: nickel plated brass
Connections - terminals Captive screws
Cable cross section 6…25 mm²
Thread type Pg 36
Net weight 0.85 kg
Base dimension 100 x 107 mm
Height 265 mm
Width 110 mm
Depth 110 mm
Colour Grey (RAL 7035)
Voltage colour Red

Environment 7

Standards IEC 60309-2, IEC 60309-1
IP degree of protection IP67 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Operating altitude 2000 m
Ambient air temperature for operation 35 °C ( 86400 s ), -25…40 °C
Show all 56 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number 81883
Type designation panel mounted plugs
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 10.000 cm
Package 1 Length 10.600 cm
Package 1 Weight 600.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 15
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.400 kg
Shipping weight 0.85 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 81883

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60309-2
  • IEC 60309-1
Quick answers

Questions about the panel mounted plugs

What is the rated current of panel mounted plugs?

The rated current of panel mounted plugs is 63 A.

Which supply voltage is panel mounted plugs rated for?

The rated operational voltage of panel mounted plugs is 380–415 V AC.

What is the HS code of panel mounted plugs for customs?

The tariff (HS) code on file for panel mounted plugs is 853669.

Where does panel mounted plugs ship from, and how fast?

panel mounted plugs ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
